2

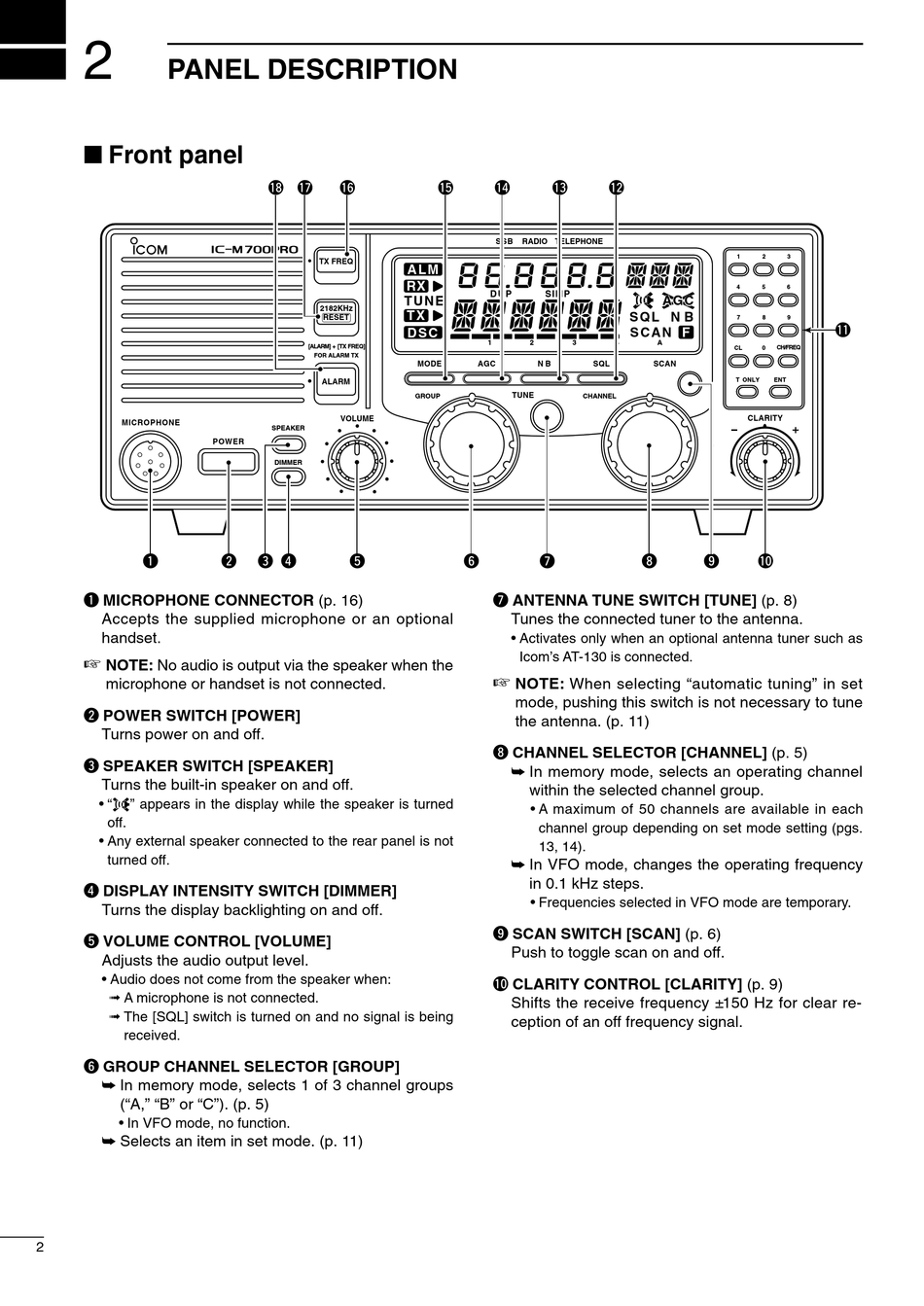

PANEL DESCRIPTION

I Front panel

MICROPHONE
q
q MICROPHONE CONNECTOR (p. 16)
Accepts the supplied microphone or an optional
handset.
NOTE: No audio is output via the speaker when the
microphone or handset is not connected.
w POWER SWITCH [POWER]
Turns power on and off.
e SPEAKER SWITCH [SPEAKER]
Turns the built-in speaker on and off.
• "è" appears in the display while the speaker is turned
off.
• Any external speaker connected to the rear panel is not
turned off.
r DISPLAY INTENSITY SWITCH [DIMMER]
Turns the display backlighting on and off.
t VOLUME CONTROL [VOLUME]
Adjusts the audio output level.
• Audio does not come from the speaker when:
➟ A microphone is not connected.
➟ The [SQL] switch is turned on and no signal is being
received.
y GROUP CHANNEL SELECTOR [GROUP]
➥ In memory mode, selects 1 of 3 channel groups
("A," "B" or "C"). (p. 5)
• In VFO mode, no function.
➥ Selects an item in set mode. (p. 11)
2
!8 !7 !6
iM 700PRO
TX FREQ
2182KHz
RESET
[ALARM] + [TX FREQ]
FOR ALARM TX
ALARM
VOLUME
SPEAKER
POWER
DIMMER
w e r t
!5 !4 !3
SSB RADIO TELEPHONE
A LM
RX
D U P SIMP
TU NE
TX
D SC
0 1 2 3
MODE AGC N B
TUNE
GROUP
y u
u ANTENNA TUNE SWITCH [TUNE] (p. 8)
Tunes the connected tuner to the antenna.
• Activates only when an optional antenna tuner such as
Icom's AT-130 is connected.
NOTE: When selecting "automatic tuning" in set
mode, pushing this switch is not necessary to tune
the antenna. (p. 11)
i CHANNEL SELECTOR [CHANNEL] (p. 5)
➥ In memory mode, selects an operating channel
within the selected channel group.
• A maximum of 50 channels are available in each
channel group depending on set mode setting (pgs.
13, 14).
➥ In VFO mode, changes the operating frequency
in 0.1 kHz steps.
• Frequencies selected in VFO mode are temporary.
o SCAN SWITCH [SCAN] (p. 6)
Push to toggle scan on and off.
!0 CLARITY CONTROL [CLARITY] (p. 9)
Shifts the receive frequency ±150 Hz for clear re-
ception of an off frequency signal.
!2
1
4
AGC AGC
SQ L N B
7
S C A N F
4 A
CL
SQL SCAN
T ONLY
CHANNEL
CLARITY
i o
2 3
5 6
8 9
!1
0 CH/FREQ
ENT
!0
