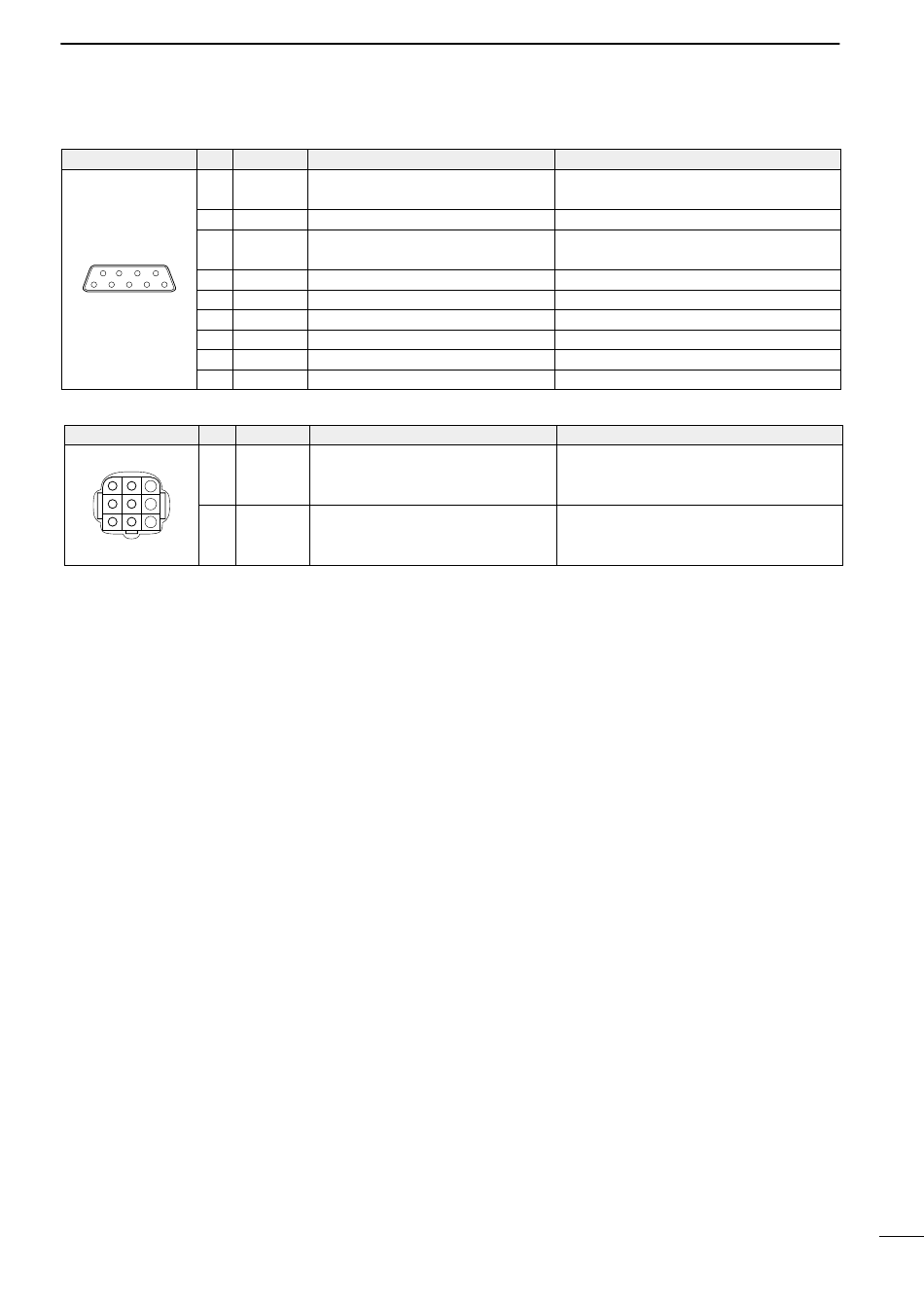

REMOTE
PIN PIN NAME
1 MOD+
2 MOD–
3 AF+
6 9
4 AF–
5 NMI+
1 5
6 NMI–
7 NMO+
8 NMO–
9 GND
DC 13.6V PIN PIN NAME
1 2 3
1,4,7 +ve
4 6
2, 5,
–ve
8
7 8 9
DESCRIPTION
Modulation input from an external
terminal unit.
Coaxial ground for MOD+.
AF detector output for an external
terminal unit.
Coaxial ground for AF+.
NMEA data input.
Coaxial ground for NMI+.
NMEA data output.
Coaxial ground for NMO+.
Ground for digital equipment.
DESCRIPTION
+ve DC input
–ve DC input
CONNECTIONS AND INSTALLATION
SPECIFICATIONS
Input impedance: 600 Ω
Input level: Approx. 1.3 mV rms
Output impedance: 600 Ω
Output level: 0.25–2.5 V rms
NMEA standard format/level
NMEA standard format/level
SPECIFICATIONS
Max. power consumption: 30 A
