How to setup Jumper

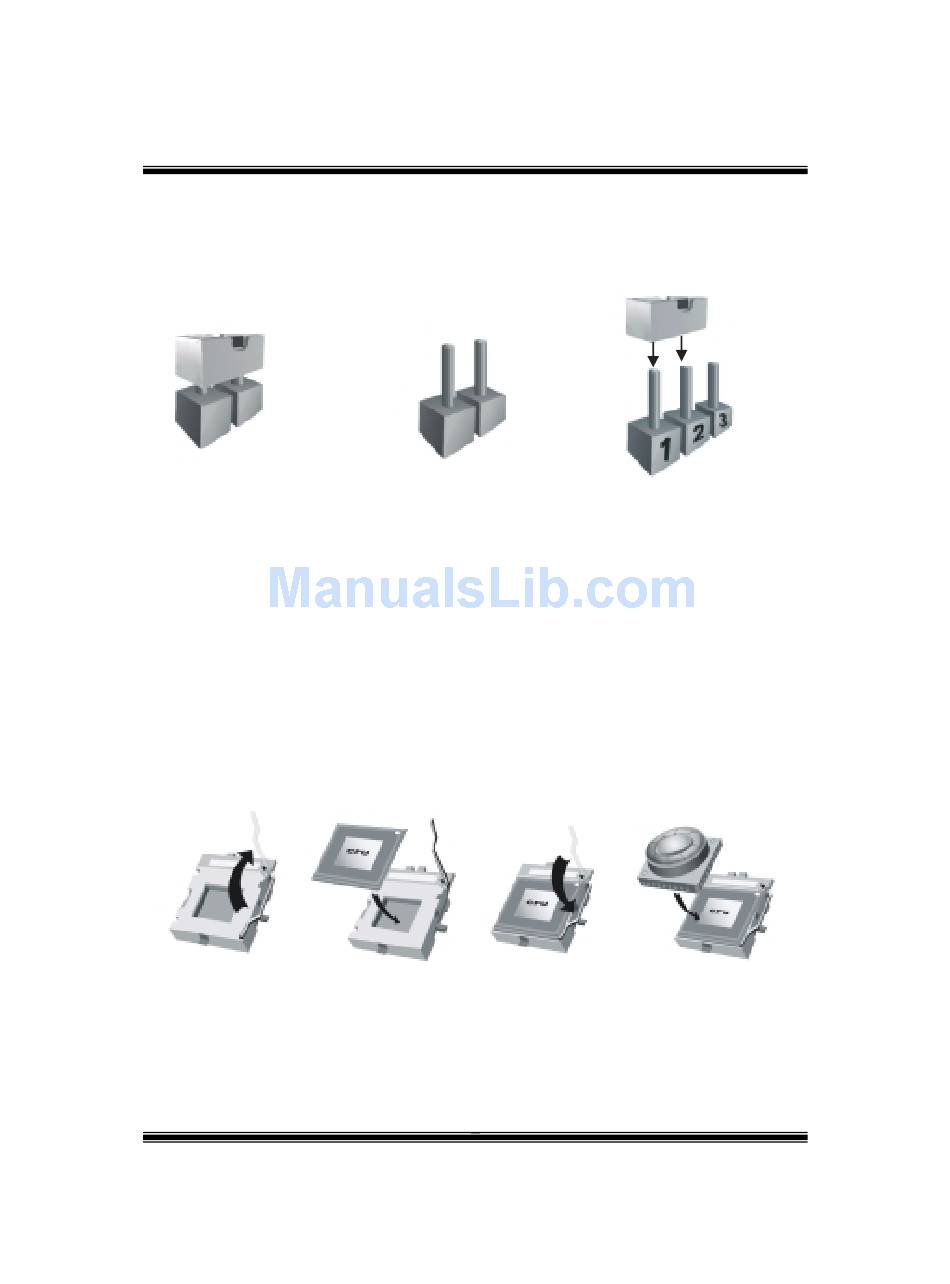

The illustration shows how jumpers are setup. When the Jumper cap is placed on pins, the
jumper is "close". If no jumper cap is placed on the pins, the jumper is "open". The
illustration shows a 3-pin jumper whose pin 1and 2 are "close" when jumper cap is placed
on these 2 pins.
Jumper close

CPU Installation

Step1:
Pull the lever sideways away from the socket and then raise the lever up to a
90-degree angle.
Step2:
Look for the white dot/cut edge. The white dot/cut edge should point towards the
lever pivot. The CPU will fit only in the correct orientation.
Step3:
Hold the CPU down firmly, and then close the lever.
Step4:
Put the CPU fan on the CPU and buckle it. Connect the CPU fan power cable to
the JCFAN1. This completes the installation.
Step1
Jumper open
Step2 Step3
5
Pin1-2 close
Step4
