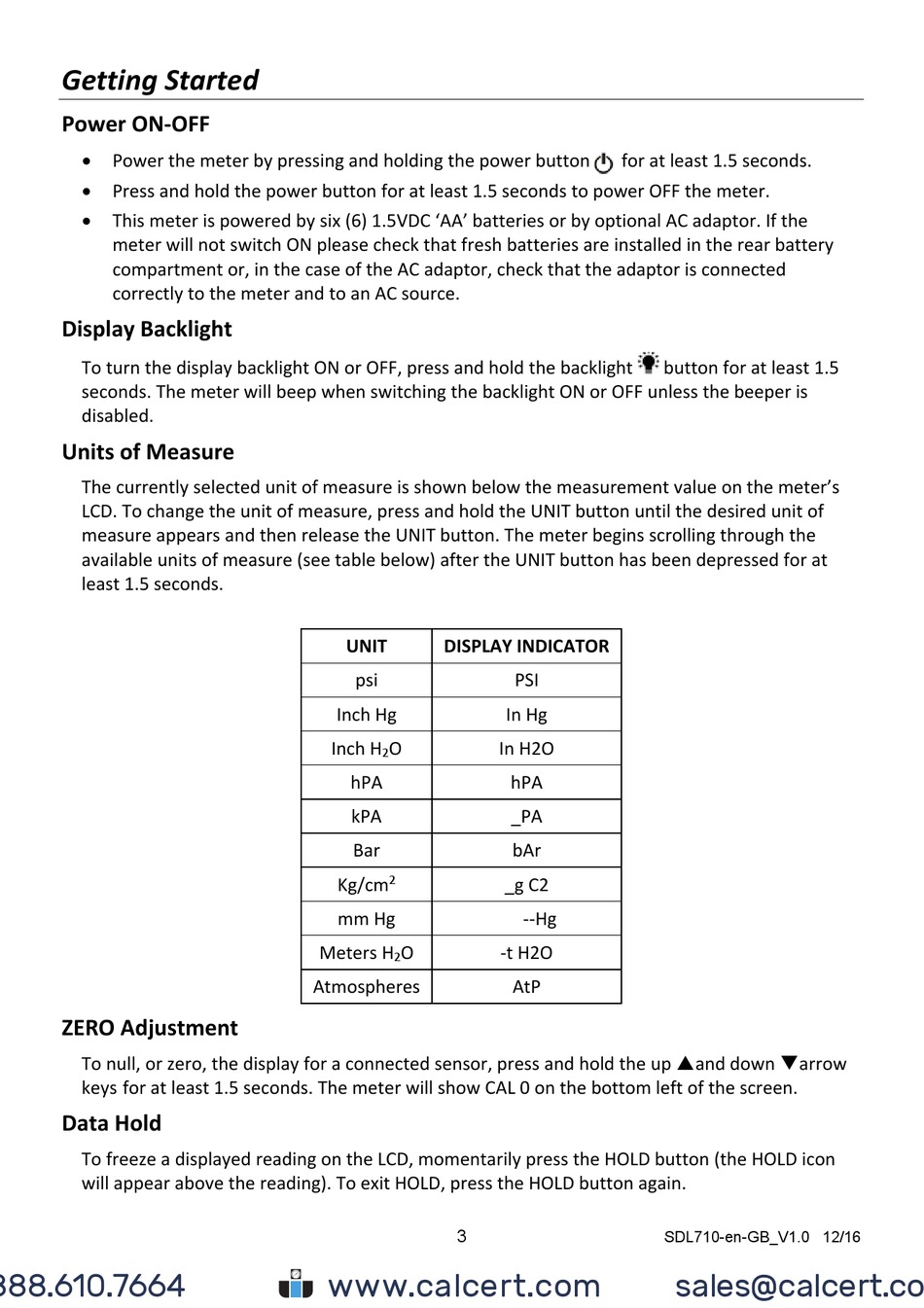

Getting Started
Power ON‐OFF

Power the meter by pressing and holding the power button for at least 1.5 seconds.

Press and hold the power button for at least 1.5 seconds to power OFF the meter.

This meter is powered by six (6) 1.5VDC 'AA' batteries or by optional AC adaptor. If the
meter will not switch ON please check that fresh batteries are installed in the rear battery
compartment or, in the case of the AC adaptor, check that the adaptor is connected
correctly to the meter and to an AC source.
Display Backlight
To turn the display backlight ON or OFF, press and hold the backlight
seconds. The meter will beep when switching the backlight ON or OFF unless the beeper is
disabled.
Units of Measure
The currently selected unit of measure is shown below the measurement value on the meter's
LCD. To change the unit of measure, press and hold the UNIT button until the desired unit of
measure appears and then release the UNIT button. The meter begins scrolling through the
available units of measure (see table below) after the UNIT button has been depressed for at
least 1.5 seconds.
ZERO Adjustment
To null, or zero, the display for a connected sensor, press and hold the up and down arrow
keys for at least 1.5 seconds. The meter will show CAL 0 on the bottom left of the screen.
Data Hold
To freeze a displayed reading on the LCD, momentarily press the HOLD button (the HOLD icon
will appear above the reading). To exit HOLD, press the HOLD button again.
888.610.7664
UNIT DISPLAY INDICATOR
psi
Inch Hg
Inch H O
2
hPA
kPA
Bar
2
Kg/cm
mm Hg
Meters H O
2
Atmospheres
3
www.calcert.com
15
10 20
5 25
0 30
button for at least 1.5
PSI
In Hg
In H2O
hPA
_PA
bAr
_g C2
‐‐Hg
‐t H2O
AtP
SDL710-en-GB_V1.0 12/16
