AMX TPI-PRO-2 Installation Manual

Overview

The TPI-PRO Presentation Interface displays up to 4 fully-scalable video windows, each supporting
Composite, S-Video, Component and VGA signals on third party touch monitors (FIG. 1).
Serial (Configuration) port
2 USB (Type-A)
Input ports Status LED
Power switch/LED
VIDEO/VGA Input 4
VIDEO/VGA Input 3
VIDEO/VGA Input 2
VIDEO/VGA Input 1
VGA Output 2
VGA Output 1

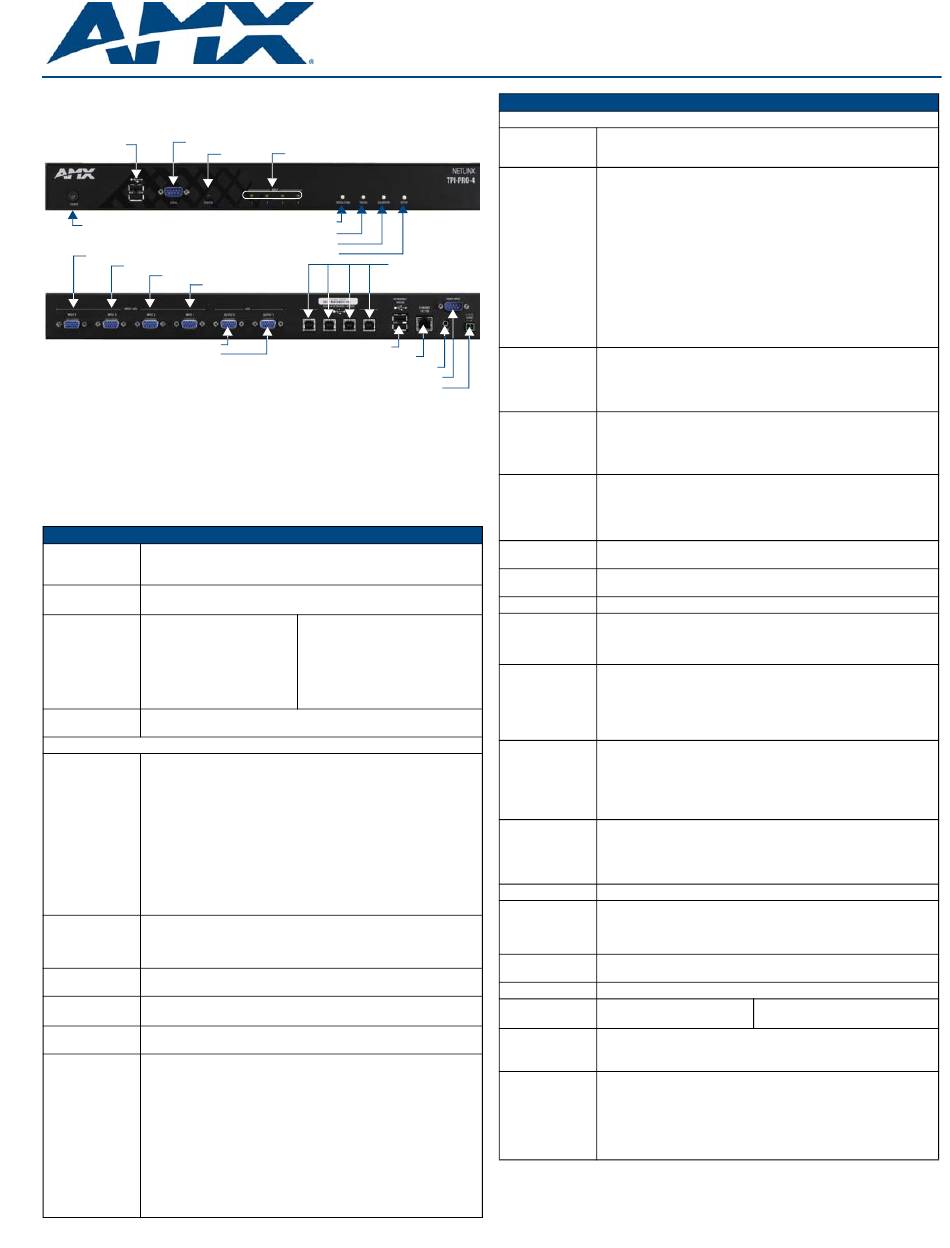

FIG. 1
TPI-PRO-2/4 (TPI-PRO-4 shown)
There are two versions of the TPI-PRO available:
• The TPI-PRO-2 (FG2275-102) supports up to two VIDEO/VGA inputs.
• The TPI-PRO-4 (FG2275-104) supports up to four VIDEO/VGA inputs.

Product Specifications

The following table lists the specifications for the TPI-PRO-2 and TPI-PRO-4. Note that the primary
difference between the TPI-PRO-2 and TPI-PRO-4 is in the number of inputs. In terms of
functionality and specifications, they are otherwise identical. The specifications listed below apply to
both versions, unless specifically noted.
TPI-PRO Specifications
• Power • Constant current draw: 2.6 A @ 12 VDC
Requirements:
• The PSN6.5 Power Supply (FG423-41 - not included) is recommended, to
accommodate all possible configurations and respective power draws.
• Memory: • 256 MB SDRAM
• 256 MB disk memory
• Supported Video Input Composite Video and
Resolutions: S-Video:
• • NTSC M/J
• • NTSC 4.43
• • PAL B/D/I/G/H
• • PAL 60, M, N, Nc
• • SECAM B/D/G/K/L
• Supported Audio 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz,
Sample Rates: 11025Hz, and 8000Hz.

Front Panel Components

• Power Toggles the unit off and on.
switch/LED:
• Light Off: Power to the unit is either not plugged in, below approximately
10VDC, above approximately 19VDC, or cross-wired.
• Constant Green: Power to the unit is within nominal voltage limits
(between 10VDC and 19VDC, approximately), the unit is on, and all
internal power supplies are operating normally.
• Constant Yellow: Power to the unit is within nominal voltage limits
(between 10VDC and 19VDC, approximately) and the unit has been
turned off by pressing the power switch for more than two seconds.
• Flashing Yellow: Power to the unit is within nominal voltage limits
(between 10VDC and 19VDC, approximately), but one or more of the
internal power supplies are not operating correctly. The unit needs to be
serviced. Contact AMX Technical Support for further instructions.
• USB Type-A 2 USB Type A ports for connecting up to one annotation touch monitor and
Host ports: up to one keyboard/mouse.
Note: Do not use a USB hub to connect multiple USB devices to the
TPI-PRO.
• Serial port: DB9 connector (male) connects to a DB9 serial port on a PC, for serial
communication.
• Status LED: • Constant ON: No communication with the NetLinx Master
• Blinking: In communication with the NetLinx Master
• Input LEDs: Yellow LEDs indicate a valid input signal on each source input
(1-4 on the TPI-PRO-4, 1-2 on the TPI-PRO-2).
• Buttons: Four white buttons provide access to the following configuration options:
• RESOLUTION: Opens a screen used to select the TPI-PRO output video
signal resolution, ranging from 640 x 480@60Hz to 1920 x 1080@60Hz.
Note: This output resolution setting must not be greater than the
resolution on the connected panel.
• TOUCH: Opens the Panel Information page, where you can select from a
series of serial touch panel drivers, and select the driver that corresponds
to the serial touch panel connected to the TPI-PRO (via the TOUCH
INPUT connector).
• CALIBRATE: Opens the Calibration page, displaying a series of
crosshairs. These crosshairs are used to calibrate the touch device being
used.
• SETUP: Opens the TPI-PRO firmware setup menu.
Input 1-4 LEDs
Button - RESOLUTION
Button - TOUCH
Button - CALIBRATE
Button - SETUP
USB (Type-B) Source
Keyboard/Mouse
Ports 1-4
USB (Type-A) Inputs
Ethernet (RJ-45) port
Audio (Stereo) Output
RS-232 Touch Input port
Power Connector
Input Component Video:
• • NTSC 480i, 480p
• • PAL 576i, 576p 720p, 1080i, 1080p
TPI-PRO-2/4
TPI-PRO Specifications (Cont.)

Rear Panel Components

• VIDEO/VGA VIDEO/VGA input connectors, one per input source (1-4 on the TPI-PRO-4,
Inputs: 1-2 on the TPI-PRO-2). Each input connector supports VGA graphics, S-
video, composite, and component video.
• VGA Outputs: 2 VGA output connectors. Both outputs support analog VGA (RGBHV)
outputs.
• Maximum output resolution = 1920 x 1080@60 Hz
• Default output resolution = 1280 x 1024@60 Hz
Note: Refer to the TPI-PRO Operation/Reference Guide for a listing of
Supported Pixel Display and Refresh Rates.
These connectors display video feeds, G4 graphics and external windowed
video/graphics inputs.
The VGA Outputs can be connected to either:
• The touch-panel control display
• The public-view non-touch monitor
Note: The TPI-PRO does not provide Component (YPbPr) or Interlaced
outputs. It provides 1920x1080 Progressive RGBHV (the same resolution as
1080p, but in the RGB color space).
• Source TOUCH, 2 or 4 USB Type-B device ports, one per source computer - for source USB
KEYBOARD/ Touch Monitor, mouse/keyboard control (1-4 on the TPI-PRO-4, 1-2 on the
MOUSE TPI-PRO-2).
USB ports:
Note: Do not use a USB hub to connect multiple USB devices to the
TPI-PRO.
• Host USB Touch 2 USB Type-A ports that can be used for a keyboard, mouse, external
Monitor storage unit, or USB-capable touch panel interface.
KEYBOARD/
Note: Do not use a USB hub to connect multiple USB devices to the
MOUSE
TPI-PRO.
USB ports:
• ETHERNET RJ-45 port provides 10/100 Mbps communication with the NetLinx Master
10/100 port: (via ICSP protocol over Ethernet).
• The Ethernet port automatically negotiates the connection speed (10
Mbps or 100 Mbps), and whether to use half duplex or full duplex mode.
• This communication is reflected via the front ICSP LED.
• TOUCH INPUT RS-232 (DB9) 9-pin serial port provides connectivity to a pointer device (i.e.
port: touch screen) that requires a serial connection.
• AUDIO OUT 3.5mm mini-jack provides stereo output - for use with line-level (0.707
connector: VRMS) non-amplified stereo output only.
• Power connector: 2-pin 3.5 mm mini-Phoenix connector.
• Serial Touch Go to http://www.amx.com//techdocs/TPI-PRO.Supported.Touch.Moni-
Drivers: tors.xls to view/download the most recent List of Touch Monitors and USB
Touch Drivers Tested with the TPI-PRO (including the most current listing of
tested serial touch panel drivers).
• USB Drivers: USB Touch drivers are automatically loaded when the USB Touch Monitor is
detected.
Note: Go to http://www.amx.com//techdocs/TPI-PRO.Sup-
ported.Touch.Monitors.xls
Monitors and USB / Serial Touch Drivers Tested with the TPI-PRO (including
the most current listing of tested USB touch panel drivers).
• Button Button assignments can be modified in TPD4 (not on the TPI-PROs.)
Assignments:
• Button channel range: 1 - 4000 button push & feedback (per address port)
• Button variable text range: 1 - 4000 (per address port)
• Button states range: 1 - 256 (General Button; 1 = Off State, 2 = On State)
• Level range: 1 - 600 (Default level value 0-255, can be set up to 1-65535)
• Address port range: 1 - 100
• Communication/ Master communication and programming is available via an Ethernet
Programming: connection. There are several methods of TPI-PRO communication and
programming available, including DHCP, Static IP, URL, Listen, Auto, NPD
(UPD) and URL (UPD).
Refer to the TPI-PRO Operation/Reference Guide for details.
• Enclosure: Metal with black matte finish
• Operating/ • Operating Temperature: 0° C (32° F) to 40° C (104° F)
Storage
• Operating Humidity: 5% to 85% RH Non-Condensing
Environment:
• Storage Temperature: -10° C (14° F) to 70° C (158° F)
• Storage Humidity: 0% to 85% RH Non-Condensing
• Dimensions • 1.72" x 17.00" x 10.54"
(HWD): (4.37 cm x 43.18 cm x 26.77 cm)
• Weight: 8.25 lbs (3.74 kg)
• Certifications: • RoHS
• FCC (Class B)
• Included • 2-pin PWR connector (41-5025)
Accessories:
• Assembly Kit - Four screws and washers (KA0001)
• Rack Ear brackets (60-0900-03)
• Other AMX • PSN6.5: Power Supply with 3.5 mm mini-Phoenix connector (FG423-40)
Equipment:
• CC-HD15M-HD15M – HD-15 Male to HD-15 Male, 6' cable
(FG10-2170-01)
• CC-HD15M-RCAM3 – HD-15 to 3x Male RCA connectors for component
or composite sources (FG10-2170-03)
• CC-HD15M-SVIDM – HD-15 Male to S-Video Male connector, 6' cable
(FG10-2170-04)
