AMX NCITE-813 Quick Start Manuals

Overview
This guide applies to the following Incite NCITE-813 8:1x3 Presentation Switchers:
•NCITE-813 (FG1901-10)
•NCITE-813A (FG1901-12)
The purpose of this document is to illustrate how to set up a device in its simplest
configuration by a trained technician.
What?s in the Box?
The following items are included with the NCITE-813:
•(1) Power Cord, Universal
• (2) Mounting Brackets (1 RU)
• (4) #6-32 x 1/4" screws
• (4) rubber feet
• (2) 2-pin 5mm connectors (NCITE-813A only)
• (2) 3-pin connectors
• (11) 5-pin connectors
Environmental Requirements
The environmental requirements for the NCITE-813/813A are as follows:
• Operating Temperature: 32° F (0° C) to 104° F (40° C)
• Storage Temperature: 4° F (-15° C) to 140° F (60° C)
• Operating Humidity: 5% to 85% RH
Getting Connected
Once the device is powered on, you can connect to it through its IP address.
NOTE: The device fully supports IPv6 network addressing. If the LAN port is con-
nected to an IPv6 capable network it will self select an appropriate IPv6 address
based on the discovered address parameters of the network to which it's
attached.
Using the Front Panel Buttons
You can access the configuration settings for the device by using the MENU
ON/OFF, SELECT, and navigational buttons on the front panel of the device.

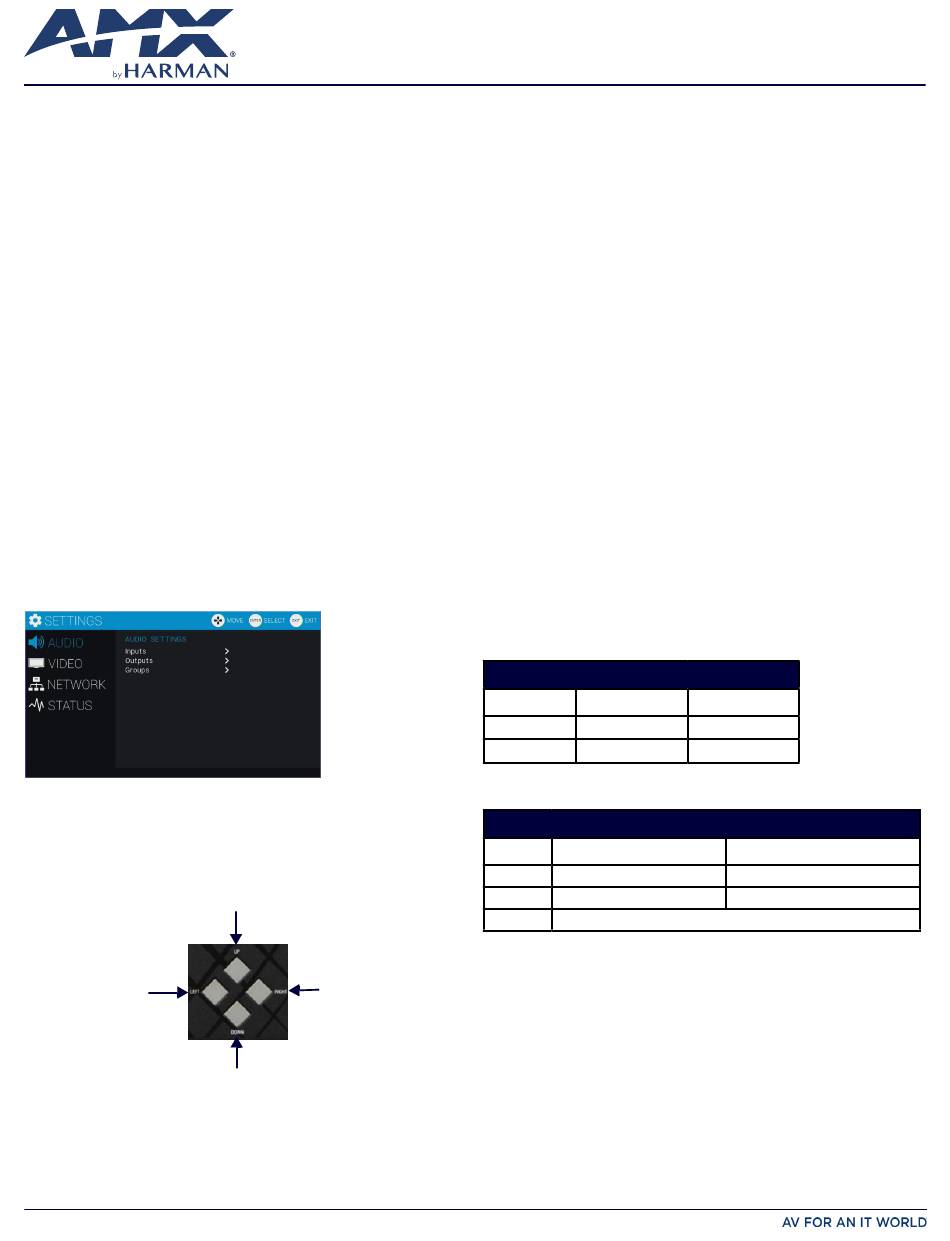

Pressing the MENU ON/OFF button opens the On-Screen menu (FIG. 1) on the
connected output device.
FIG. 1
ON-SCREEN MENU
Press the SELECT button to change an audio/video setting while you are using
the
On-screen menu on the selected output device. When using the on-screen
menu, use the navigational buttons to cycle through audio and video settings
(depending on the menu.)
Use the Navigational buttons to traverse the available options and change their
values. FIG. 2 displays the navigational function of each button.
Move up to next menu configuration parameter
Decrease value, or
change the state of
the selected parameter
Move down to next menu configuration parameter
FIG. 2
NAVIGATION BUTTONS
NCITE-813/813A
Locating the IP Address of the Device
You can locate the IP address of the NCITE-813/813A by using the buttons on the
front panel of the unit. You can find the IP address in the On-Screen Menu (OSM)
on the video output connected to the presentation system. Perform these steps
to locate the IP address of the unit:
1.
2.
3.
NOTE: You can use the Status menu to verify current TCP/IP settings using the UP
and DOWN navigational buttons.
Switching to Static or Dynamic IP Addressing
To toggle between static or dynamic IP addressing, the controller cannot be
currently booting or it must be in ID Mode. If these conditions are met, holding
the ID pushbutton for 10 seconds changes the current IP addressing mode.
Changing the IP Address Once You Are Connected
Perform these steps to change the IP address once you are connected to the
controller:
NOTE: Ensure the PC you are using to connect to the controller has the latest
version of NetLinx Studio 4.0 installed on it.
1.
2.
3.
4.
5.
6.
7.
8.
Default Settings
The following sections list the default settings for the controller.
Default User Names and Passwords
The following table lists the default user names and passwords for accessing the
device through NetLinx Studio or the WebConsole.
DEFAULT USER NAMES AND PASSWORDS
NetLinx Studio
WebConsole
Default IP Addresses
The following table lists the default IP addresses for the NCITE-813/813A.
DEFAULT IP ADDRESSES
Static IP
ICSLAN
Link-local
Increase value, or
change the state of
the selected parameter
8:1x3 Digital Video Presentation System
Press the MENU ON/OFF button on the front panel of the unit to open the
On-Screen menu.
Use the UP and DOWN navigational arrow buttons to navigate to the
Network menu.
Arrow right once to access the options under the Network menu and view
the IP address. Note the IP address for future reference.
Set the IP address on your PC to the same network the controller is currently
on.
In NetLinx Studio, select Diagnostics > Network Addresses from the menu
bar to open the Network Addresses dialog.
Click Get IP Information to enable the fields for editing.
Enter the System, Device (0 for NetLinx Masters), and Host Name
information.
To specify a network IP address, select Specify IP Address.
Enter the IP parameters into the available fields.
Click Set IP Information to retain the pre-reserved IP Address to the Master.
Click Reboot Device to finish assigning the IP address to the Master, and
click OK to close the dialog.
User Name
netlinx
administrator
IP Address
192.168.1.3
198.18.0.1
169.254.x.y, where x and y are the least significant two octets of the MAC address.
QUICK START GUIDE
Password
password
password
Subnet
255.255.255.0
255.255.0.0
