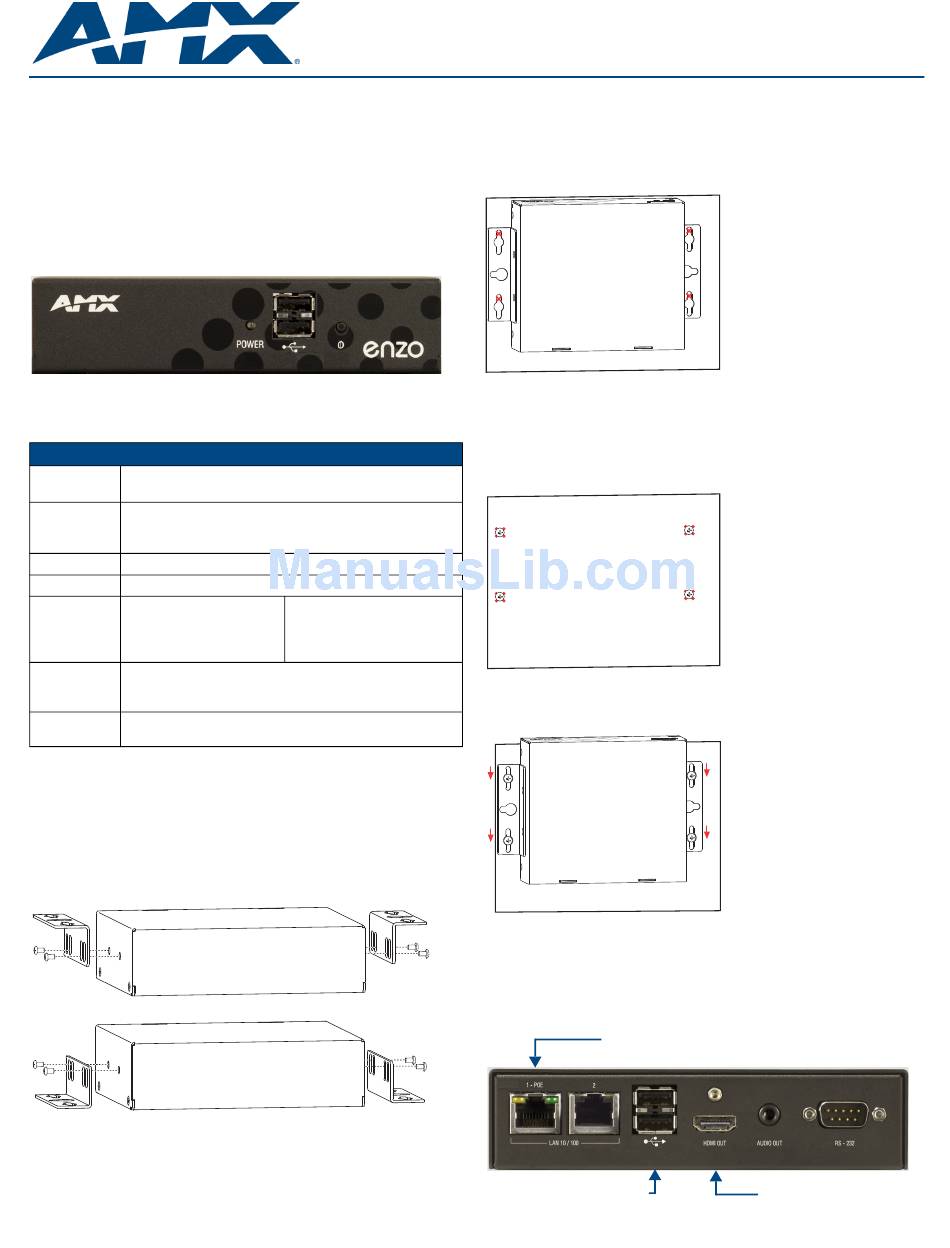

AMX FG3211-01 Quick Start Manual

Overview

The NMX-MM-1000 Enzo Meeting Presentation System (FG3211-01) allows you to
easily access content and documents stored on USB, on the web, or in the cloud. The
Enzo Media Presentation System is a power-efficient device with no moving parts that
is powered using Power over Ethernet (PoE).
To install the NMX-MM-1000, you will need the following items:
• 1 HDMI cable (Type A female)
• 1 PoE injector or PoE-capable Ethernet switch (802.3af compliant)
• 2 Cat5 cables
• 1 HDMI monitor
• USB keyboard and/or mouse
FIG. 1 NMX-MM-1000 (front panel)

Specifications

The following table lists the specifications for the NMX-MM-1000:
NMX-MM-1000 Specifications
Power: • Power over Ethernet (PoE), 802.3af
• Maximum Power Consumption: 13W
Environmental: • Operating Temperature: 32° to 104° F (0° to 40° C)
• Storage Temperature: –4º to 158ºF (–20º to 70ºC)
• Operating Humidity: 5% to 85%, non-condensing
Dimensions: 1 3/8" (3.48cm) x 5 3/16" (14.73cm) x 3 5/16" (8.34cm) HWD
Weight: 1.1 lbs. (0.49kg)
Certifications: • RoHS
• FCC
• IC
• CE
Included • AVB-VSTYLE-SURFACE-MNT V-Style Single Module Surface
Accessories: Mount Kit (FG1010-722)
• Rubber feet
Optional • PS-POE-AF-TC, PoE Injector, 802.3af Compliant (FG423-83)
Accessories:

Mounting the NMX-MM-1000

The NMX-MM-1000 can be mounted using an AVB-VSTYLE-SURFACE-MNT V-Style
Single Module Surface Mount Kit (FG1010-722). The NMX-MM-1000 also has rubber
feet which you can apply to the bottom of the unit for table-top mounting.

Attaching Brackets

The Surface Mount Kit is designed for mounting a single module (to a wall, on or
under a desk, etc.) The kit contains brackets and screws. The brackets may be
attached to mount the top or the bottom flush with the mounting surface.
Insert the #4-40 3/16 inch pan head screws (provided) as shown in
Brackets can either align flush with the top or with the bottom.
FIG. 2 Insert screws and tighten
NMX-MM-1000 Enzo™ Meeting Presentation System
• IEC 60950-1
• cULus 60950-1
• VCCI
• C-Tick
FIG. 2 and tighten.

Mounting on a Surface

Note: The #8 x 1/2 inch tapping pan head screws provided for mounting to a flat
surface are designed for wood. If the module needs to be mounted on a different type
of surface, use the appropriate type of fastener, e.g., dry wall anchors (not provided).
1. Place the NMX-MM-1000 in the desired final position on the mounting surface
and mark the screw position as indicated in
FIG. 3 Mark screw positions
Important: The mark for the screw's position in each of the mounting holes needs to
be made in the end of the slots (all marks to either the top of the slots or all marks to
the bottom).
2. Set the device aside. If using the wood screws provided, drill pilot holes (drill
size 29; hole diameter 0.136 in.) for the screws 1/2 inch (1.27 cm) deep. Insert
the screws in the holes, but do not tighten them completely.
FIG. 4 Drill pilot holes and insert screws, but do not tighten
3. Align the module with the center of the double key-hole slots over the screws
and slide into place as indicated in
FIG. 5 Align module over screws and slide into place
4. Tighten the screws.

Installation

Installing the NMX-MM-1000 is a quick and simple process. Before connecting the
NMX-MM-1000 to its peripheral devices and powering the device, be sure to mount
the device using the desired method.
FIG. 6 displays the connections for the NMX-MM-1000.
Cat5 cable from PoE injector to provide power
Connect peripheral devices
FIG. 6 NMX-MM-1000 (rear panel)
Quick Start Guide
.
FIG. 3
FIG. 5 .
HDMI out to monitor
