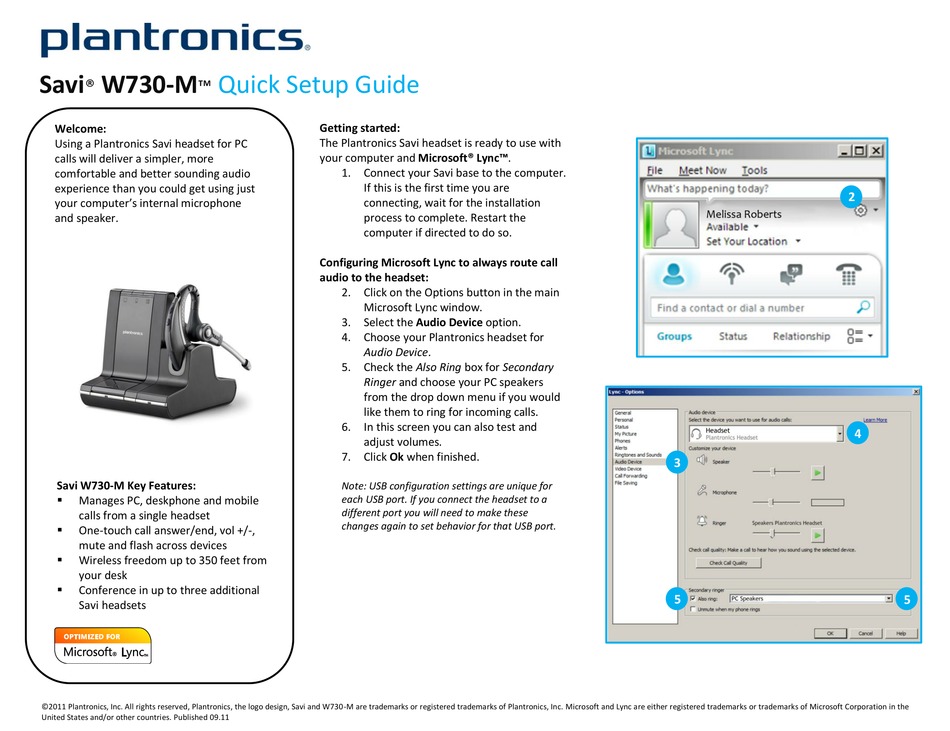

Plantronics Savi W730-M Quick Setup Manual

Savi W730-M Quick Setup Guide
® ™
Welcome:
Using a Plantronics Savi headset for PC
calls will deliver a simpler, more
comfortable and better sounding audio
experience than you could get using just
your computer's internal microphone
and speaker.
Savi W730-M Key Features:

Manages PC, deskphone and mobile
calls from a single headset

One-touch call answer/end, vol +/-,
mute and flash across devices

Wireless freedom up to 350 feet from
your desk

Conference in up to three additional
Savi headsets
©2011 Plantronics, Inc. All rights reserved, Plantronics, the logo design, Savi and W730-M are trademarks or registered trademarks of Plantronics, Inc. Microsoft and Lync are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries. Published 09.11
Getting started:
The Plantronics Savi headset is ready to use with
your computer and Microsoft® Lync™.
1. Connect your Savi base to the computer.
If this is the first time you are
connecting, wait for the installation
process to complete. Restart the
computer if directed to do so.
Configuring Microsoft Lync to always route call
audio to the headset:
2. Click on the Options button in the main
Microsoft Lync window.
3. Select the Audio Device option.
4. Choose your Plantronics headset for
Audio Device.
5. Check the Also Ring box for Secondary
Ringer and choose your PC speakers
from the drop down menu if you would
like them to ring for incoming calls.
6. In this screen you can also test and
adjust volumes.
7. Click Ok when finished.
Note: USB configuration settings are unique for
each USB port. If you connect the headset to a
different port you will need to make these
changes again to set behavior for that USB port.
2
3
5
4
5
