Plantronics Savi W730 Quick Start Guide

Overview

1. Increase volume/flash button
   Increase volume Short press +
   Flash While on call, long press volume up + for 1.5 seconds, will put call on hold and answer another.
2. Decrease volume/mute button
   Decrease volume Short press – Mute
   Press volume down – for 1.5 seconds
3. Call control button
   Answer/end call Short press

For your safety, do not use headset at high volumes for extended periods of time. Doing so can cause hearing loss. Always listen at moderate levels. For more information on headsets and hearing visit plantronics.com/healthandsafety.

Please refer to the separate safety instructions for important product safety information prior to installation or use of the product.

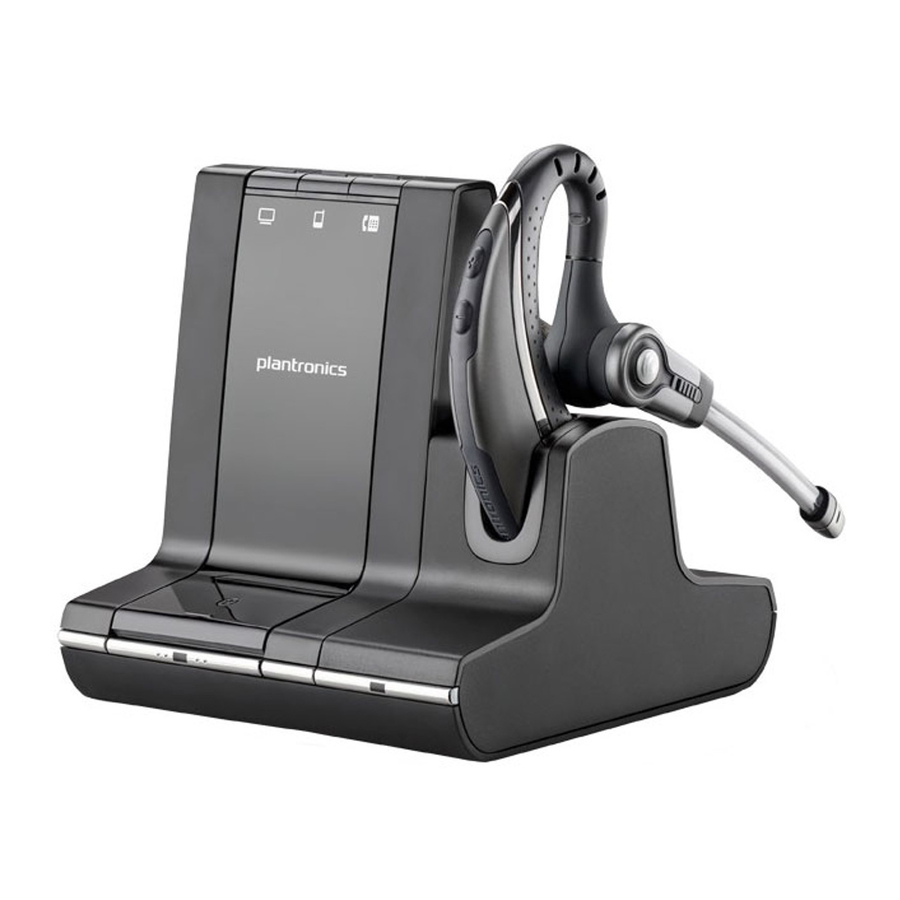

Savi W730 has a WO2 base and a WH210 headset.

Headset: Customize and Charge

1. Attach charge cradle to base.


2. Plug one end of power supply into power jack on back of the base and other end into working power outlet.


3. To charge, dock headset in base, minimum of 20 minutes.


NOTE
This product has a non-replaceable battery. Contact Plantronics for replacement information.

Desk Phone: Connect and Call

1. Choose desk phone setup A, B, or C and connect cables.
   1. Desk phone (standard)


   2. Desk phone + HL10 lifter (sold separately)
      See user guide at plantronics.com/accessories


   3. Desk phone + EHS cable (sold separately)
      See user guide at plantronics.com/accessories


2. While wearing headset, short press base desk phone button.

   NOTE If you don't have remote call control through a lifter (HL10) or cable (EHS), manually remove desk phone handset before each call.
3. If you do not hear a dial tone, open side panel and adjust middle configuration switch (A–G) until you do. Default setting A works for majority of desk phones.


4. Dial test call from desk phone.
5. End call by pressing headset call control button.


Mobile: Connect and Call

1. Press down and hold Bluetooth® pairing button (4 seconds) on Savi base until indicator LED flashes red and blue.


2. Place Bluetooth mobile phone into search mode. Select SAVI 7xx from the list of found devices.


3. If prompted by mobile phone, type 0000 as passcode. Bluetooth indicator LED on base will turn solid blue when base has an active connection with mobile phone.


4. While wearing headset, short press base mobile button.


5. Dial test call from mobile phone.
6. End call by pressing headset call control button.


Audio streaming
Savi 700 series supports Bluetooth A2DP audio streaming and playback of media-based content for listening on all Savi 700 series headsets. To listen to steaming media, follow these steps:

1. Assure your A2DP compatible mobile phone is paired to the Savi base per instructions above.
2. Begin playing media from desired application on your mobile phone.
3. While wearing the headset, press base mobile button to play audio on headset.
4. If media does not begin playing, assure "Savi 7xx" is selected from your list of connected Bluetooth devices.
5. To stop media playing, press the base mobile button again.

Computer: Connect and Call

1. Connect USB cable.


2. Load Plantronics software by visiting plantronics.com/software and click on download button.
3. While wearing headset, short press base computer button.


4. Dial test call from computer softphone.
5. End call by pressing headset call control button.


DECT security

Plantronics Savi 700 series products are compliant with the DECT Forum security certification requirements and have been granted Security Logo Certification. Follow the link below to the online Savi 700 Series User guides to learn more about DECT security features.

NEED MORE HELP?
Product support
plantronics.com/support
Online user guide
http://docs.plantronics.com/savi-700

VIDEO GUIDE
http://docs.plantronics.com/savi-700
