Full Menu Setup
Event Processing:
●
An event type is a set of parameters describing how the camera will perform certain
actions. Event type may be set up as Triggered according to requirements.
> Name: Shows the descriptive name provided by the user.
> Trigger: Shows the source of event type as Alarm-In-1, Manual(4), Motion(1),
Network and Tamper configured by the user.
> Action: Shows the destination of event output as E-mail, FTP server, Video Boost
Alarm-out port, PTZ and SD record.

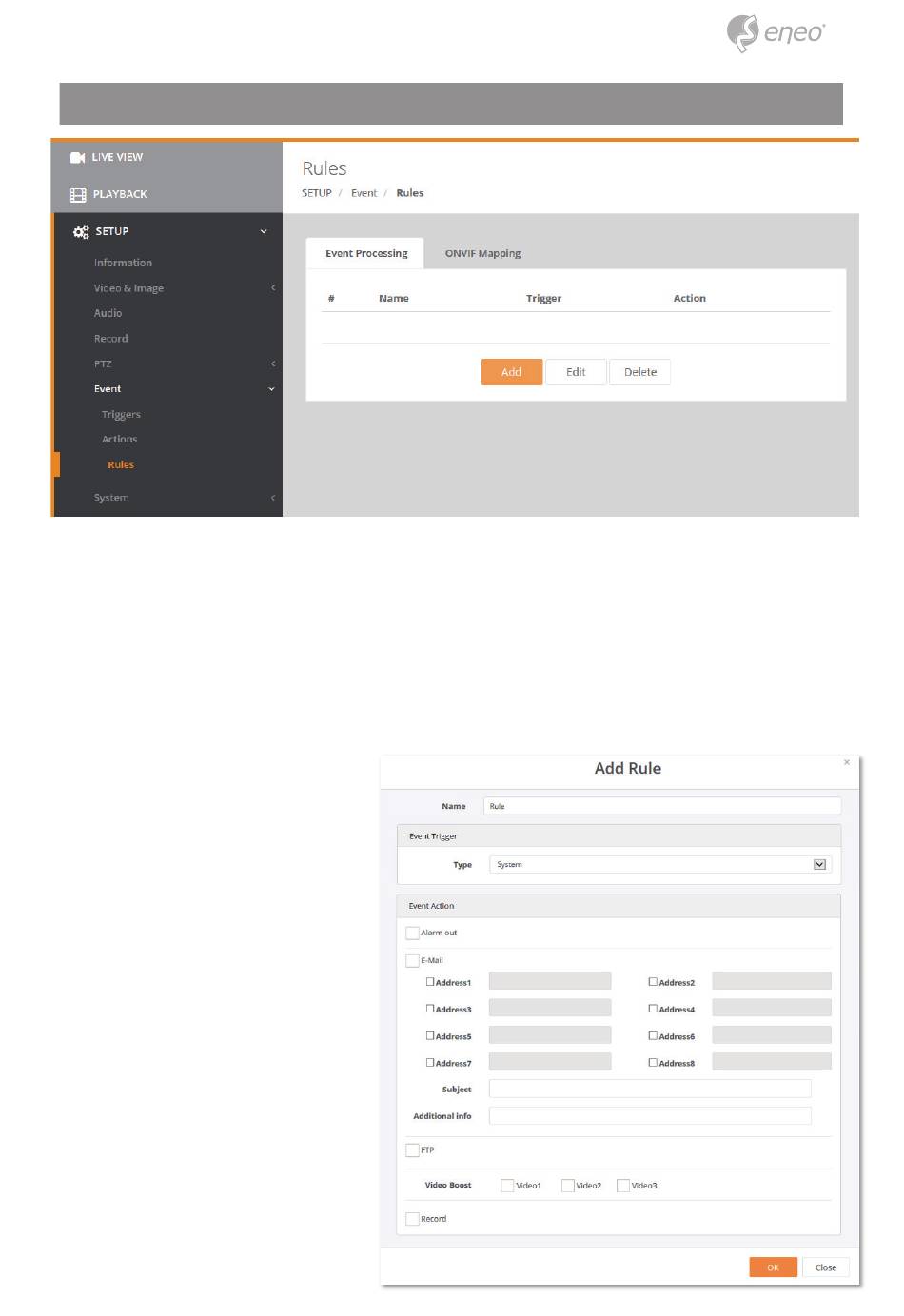

To add new event, click the
Add button. This button
opens new dialog window,
which are used to make all
the necessary settings for
the new event map.
1) Add Rule
To add a new event map list,
select it and click the Add button.
Event Rule-Add page provides
how to configure the event action
if there is event triggering such as
Alarm-In and Manual trigger.
