Eneo IPP-72A0030M0A User Manual page 40

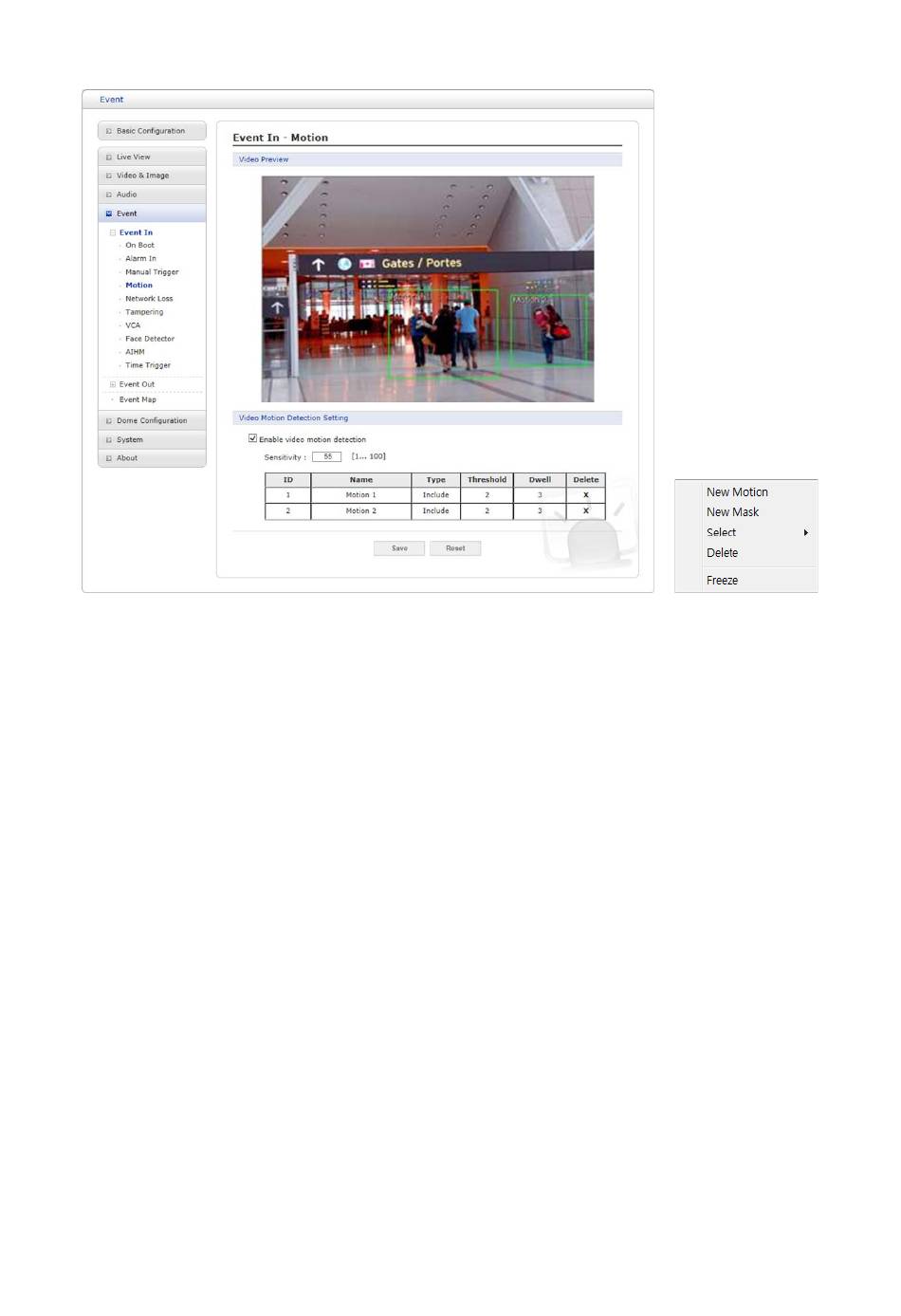

▽ Motion
This option makes use of the motion detection function with 16 programmable areas, 8 Include
and Exclude zones each.
Click right mouse button on the preview window shows selection pop-up of New Motion, New
Mask, Select, Delete, and Freeze.
Select New Motion and click&drag generates an Include box of green color.
Select New Mask and click&drag generates an Exclude box of orange color.
Drag corner or line resizes and drag inside moves the box.
Select "Enable video motion detection" to activate motion detection.
• Sensitivity: User can change sensitivity of this function, where large value sets more sensitive
detection.
• Zone List
– ID: Order of generation, Include 1~8, Exclude 9~16.
– Name: User definable zone name.
– Type: shows zone type and cannot be changed.
– Threshold: Determines how large the motion in the zone can trigger event in percentage.
– Dwell time: Determines how long the triggered event holds from the last triggering.
User can select any box by clicking name on the preview window or click on the list. User can
delete selected zone via right mouse click selection for a selected box, or click any one of X button
in the zone list.
When the settings are complete, click Save button to save the settings, or click Reset button to
clear all of the information you entered without saving it.
