Logik L22FE14 Quick Start Manual

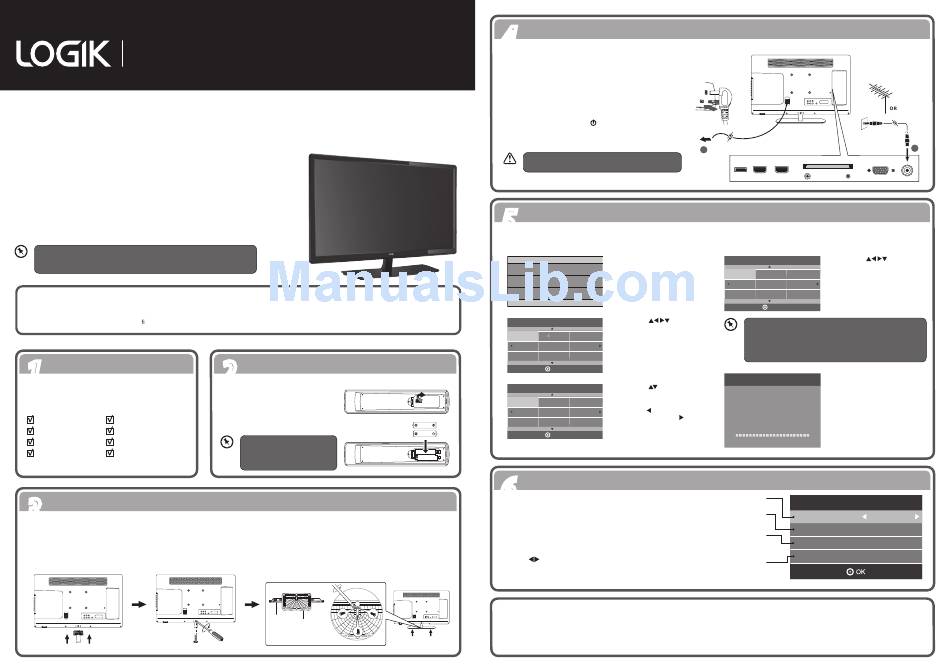

Quick Start Guide

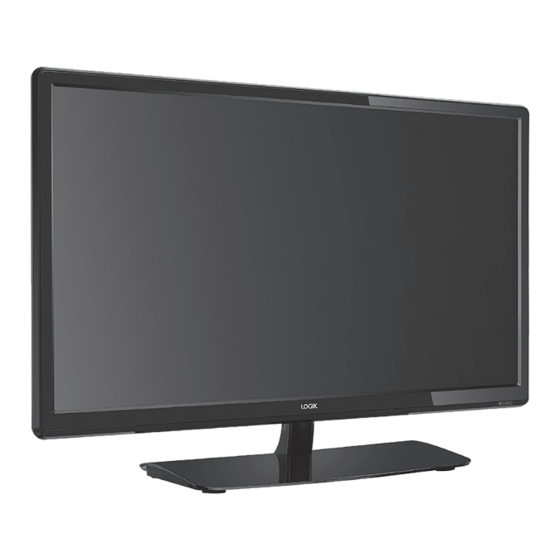

22" LED TV
L22FE14
The latest eco-friendly power-saving technology will switch off the TV if
device is left on and idle for 4 hours. Please refer to "Auto Standby" under
the "Time Settings" section of the instruction manual for more detail.
Thank you
for purchasing your new Logik TV.
Your new TV incorporates the latest technology to enhance your viewing experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful rst time installation.
1 1
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to any local
regulations.
TV Screw A x 1
TV Stand Support Screw B x 3
TV Base Instruction Manual
Quick Start Guide
Remote Control /
AAA Batteries x 2
3 3
Installing the Base Stand
1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it.
Please make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using screw A. Align with the screw hole then use screw to fix the stand support to
the TV.
3. To install the base stand, align the screw hole, then secure with a screw driver (not included) using the 3 screw B provided.
Screw A x 1
2 2
Operating Your Remote Control
1. Press and lift the back cover to open
the battery compartment of the remote
control.
2. Insert two AAA size batteries. Close the
battery compartment cover.
Make sure the (+) and ( – ) ends
of the batteries match the (+)
and ( – ) ends indicated in the
battery compartment.
screw in
TV
Base Stand
Front
screw in
Front
Screw B x 3
4 4
Connecting the Aerial and the Mains Socket
1. Connect one end of the RF coaxial cable to the aerial
socket on the wall and the other end of the cable to the RF
(75Ω) socket at the rear right side of your TV.
2. Connect the mains cable to the mains socket after you
have completed all the connections.
3. At this stage, the TV switches to standby mode. The red
LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the button on the right side
panel of the TV or on the remote control to turn the TV on.
The red LED indicator will turn blue.
Do not connect the TV to the mains supply until you
have completed all the connections.
5 5
Turning the TV On for the First Time
The first time you turn the TV on, it will go straight into First Time Installation menu.
1. Press the OK button to start
First Time Installation
First Time Installation menu.
Please ensure aerial is plugged in!
Then press OK button.
2. Press the buttons to
Please select an OSD Language
select your desired language
to be displayed on the menu.
English esky Suomi
The default on-screen menu
Svenska Slovak
language is set as English.
Dansk Norsk Press the OK button to
confirm.
OK
3. Press the buttons to
Mode Select
select your desired mode and
then press the OK button.
Home Mode
Press the button to select
Shop Mode
Yes to confirm or the
to select No to cancel and
return to the Mode Select
OK
menu.
6 6
Target Region Setting
This will be shown as GBR for the UK.
During tuning your TV may have received signals
This will show the regional country
from more than one transmitter. If this has occurred
(e.g. England, Wales, Scotland, NI).
the Target Region Setting screen will be displayed.
This will enable you to select the correct regional
This will allow you to set the region for
transmission for the local news service that you
your local news service.
require.
Press the buttons to adjust each option's setting
You may receive signals from more than
and then press the OK button to confirm.
one transmitter within the Secondary
Region, (e.g Beds and Cambs may have
Luton or Sandy Heath).
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these
features, please take some time to read the instruction manual provided with your TV.
If after reading the instruction manual you have additional questions related to the use of your TV please call:
• UK Call Centre on 0344 561 1234. • Ireland Call Center on 1 890 818 575.
RF Coxial Cable
To mains socket
2
COMMON INTERFACE (CI)
USB HDMI2 HDMI1
HEADPHONE PC AUDIO
4. Press the
Country
select the country where you
will operate the TV. Press the
UK Ireland Norway
OK button to confirm.
Sweden Finland Denmark
France Spain Portugal
OK
If you select Ireland as the country where you will operate the
TV, a pop-up screen will be display. You will need a 4-digit
activation code for Irish tuning. This code can be found
in-store, on the back of your receipt (if bought in Ireland), or
call the customer service team / KNOWHOW.
5. DTV channel tuning will
Channel Tuning
commence. This operation
may take up to 3 minutes. The
TV : 0 Channel(s)
display will show the progress
DTV : 3 Channel(s)
of the tuning and the number
Radio : 0 Channel(s)
of channels found.
Data : 0 Channel(s)
button
36%... 668.75MHz (DTV)
Press MENU to skip.
Target Region Setting
Country Code
Primary Region
Secondary Region
Tertiary Region
(QSG-L22FE14-140519V2)
(not included)
1
PC IN RF
buttons to
GBR
England
London
