广州市汉婷生物技术开发有限公司
FMUSER INTERNATIONAL GROUP INC.

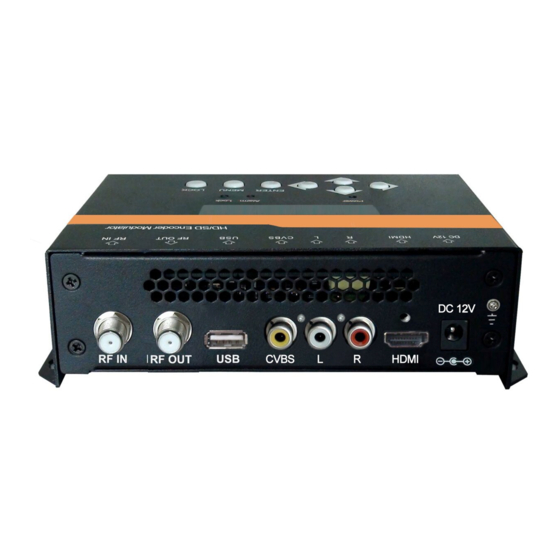

FUTV4624 DVB-T SD&HD
Encoder & Modulator with USB
User Manual
--- Home Use
Thank you for buying this encoder modulator.
Please read this manual carefully to install, use and maintain the encoder modulator in the best conditions of
performance. Keep this manual for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FMUser FUTV4624
Summary of Contents for FMUser FUTV4624

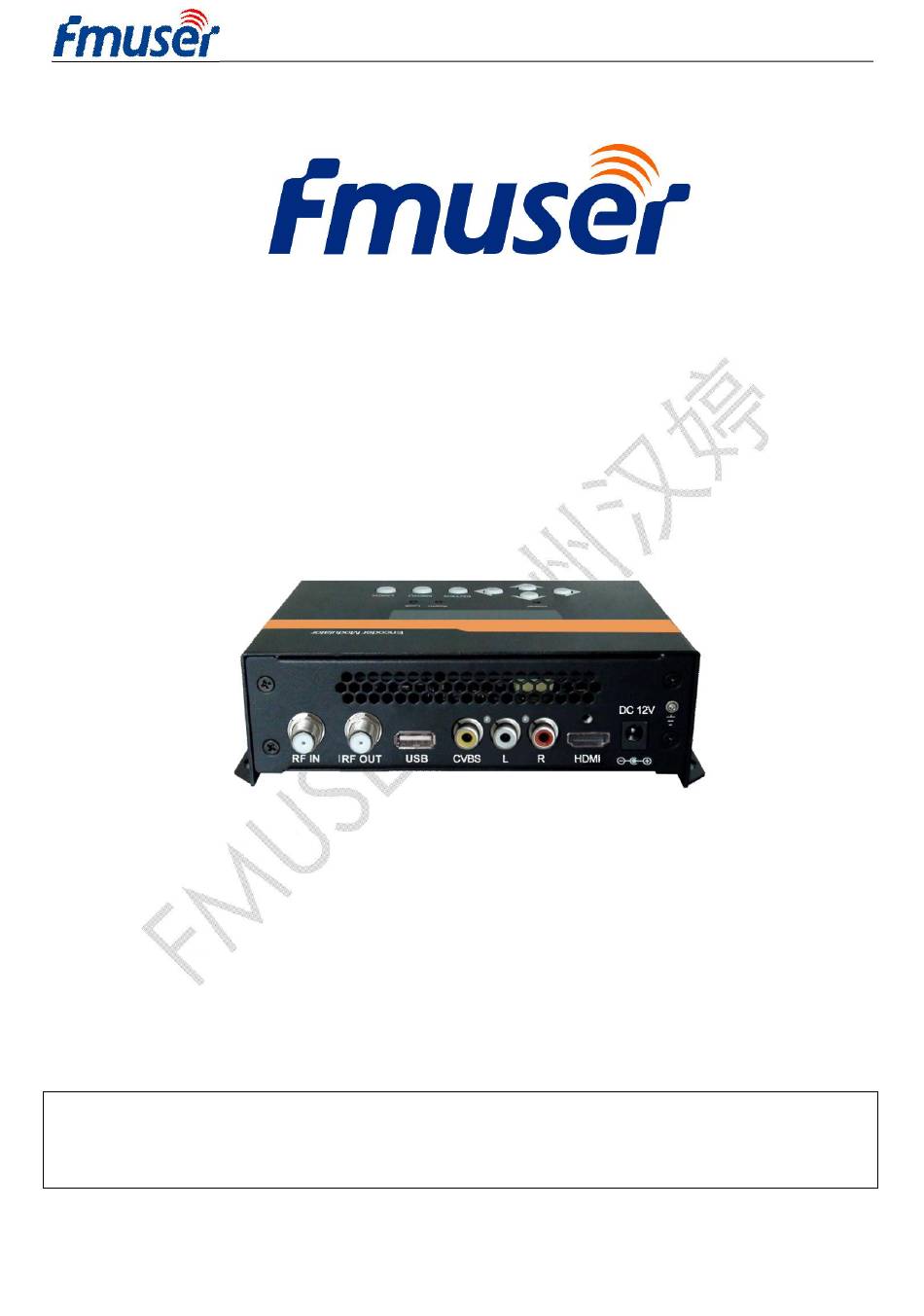

- Page 1 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. FUTV4624 DVB-T SD&HD Encoder & Modulator with USB User Manual --- Home Use Thank you for buying this encoder modulator. Please read this manual carefully to install, use and maintain the encoder modulator in the best conditions of...
-
Page 2: Table Of Contents
广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. Directory CHAPTER 1 Product Introductions……………………… .... 3 General Description ..............3 Working Principle ................ 3 Technical Specifications............. 4 CHAPTER 2 Safety Instruction and Installations ...... 6 Safety Instructions ..............6 Installations ................. 6 Typical Applications ..............7 CHAPTER 3 Operations and Management ........ -
Page 3: Chapter 1 Product Introductions
CHAPTER 1 Product Introductions General Description FMUSER FUTV4624 HD&SD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. -
Page 4: Technical Specifications
广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. Technical Specifications HDMI Encoding Section Encoding H.264 MP@L 3.0/3.1/4.0 Interface HDMI*1 Input Output 480@59.94/60p 480@60p 480@59.94/60i 480@30p 576@50i 576@25p Video Resolution 720@50/59.94/60p 720@50/59.94/60p 1080@50i 1080@25p 1080@59.94/60i 1080@30p 1080@59.94/60p 1080@30p Aspect 16:9, 4:3 Ratio Bit rate 1.000~18.000 Mbps... - Page 5 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. DVB-T Modulator Section Standard DVB-T COFDM Bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode: 2K, 8K ≥31dB RF frequency 142.5~946 MHz, 1KHz step RF output level -14~ +6dBm, 0.1db step...
-
Page 6: Chapter 2 Safety Instruction And Installations
广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. CHAPTER 2 Safety Instruction and Installations Safety Instructions WARNING: Hot plug is not allowed since it may cause system halted. To prevent fire or electrical shock, do not expose the device to rain or moisture. -
Page 7: Typical Applications
Cascade Installation FUTV4624 unit has 1 TV signal to RF output encoded as DVB-T Digital TV signal. Several FUTV4624 units can be cascaded in order to increase the capacity. The maximum capacity of a series of N units is 1xN incorporated TV signals. -
Page 8: Chapter 3 Operations And Management
FMUSER INTERNATIONAL GROUP INC. CHAPTER 3 Operations and Management FUTV4624 is controlled and managed through the key board and LCD display. LCD Display – It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied. - Page 9 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. 9 / 14...
- Page 10 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. 1) DVB-T: modulating standard; XX.XXX MHz: the current output frequency; 1080i: video resolution of signal source; X.XX Mbps: the current encoding bit rate 2) Alarm Status: For example, if the signals lose, it will give alarm and display error type under this menu. For example: Video Not Lock 3) Uptime: It displays the working time duration of the device.
- Page 11 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. Ø NOTE: The different combination of bandwidth, constellation, guard interval and FEC (code rate) will form a different output code rate. Please refer to appendix table 2. To ensure the output image quality, it is required the output code rate to be higher than 22 MHz.
-
Page 12: Chapter 4 How To Upgrade
FMUSER INTERNATIONAL GROUP INC. CHAPTER 4 How to Upgrade FUTV4624 encoder modulator is embedded with USB Port for upgrading. The supported file format is IMG. Upgrade steps: Insert USB device→Upgrade automatically(It will need 10-20 seconds to upgrade.) →Remove USB device→Power off→Power on. -
Page 13: Appendix
广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. Appendix Table 1 Australia Television Frequency/Channels (MHz) 13 / 14... - Page 14 广州市汉婷生物技术开发有限公司 FMUSER INTERNATIONAL GROUP INC. 6MHz Bandwidth 7MHz Bandwidth 8MHz Bandwidth Modulation Guard Interval Guard Interval Guard Interval Constellation 1/16 1/32 1/16 1/32 1/16 1/32 The weak ability of error-correcting and anti-interference in this area 6.03 6.03 5.80 6.45 6.83 7.03...
