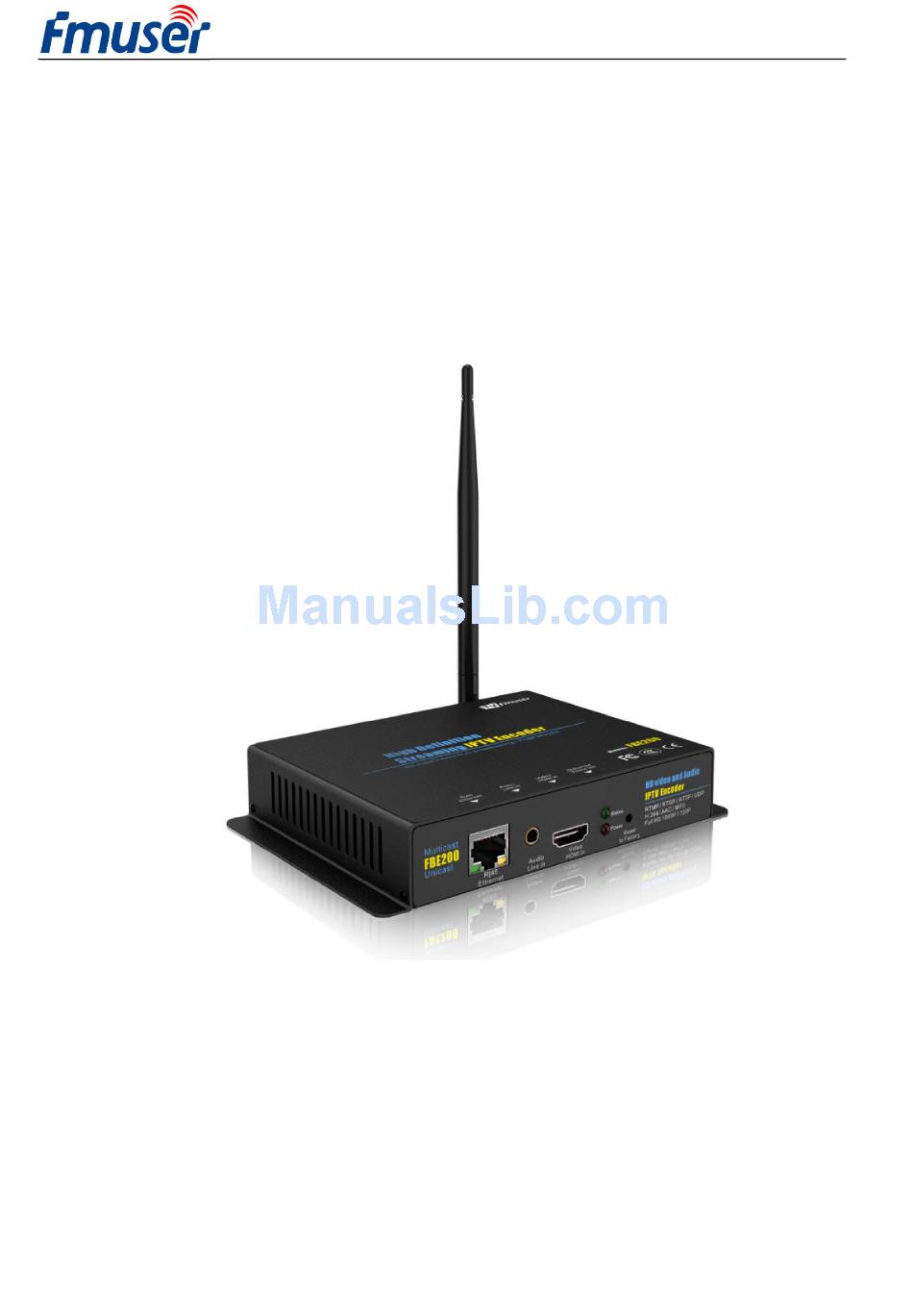

FMUSER USER MANUAL
For H.264/H.265 High Definition HD
*Some functions mentioned in this manual are applied to corresponding models, not to all models
listed, thus this manual shall never be used as a promise for all functions available on all models.
FMUSER INTERNATIONAL GROUP INC.
IPTV Streaming Encoder
This manual is compatible for the following models:
--FBE200-H.264-LAN (Not include WIFI and HLS)
--FBE200-H.264 (include WIFI and HLS)
--FBE200-H.265 (include WIFI and HLS)
Forum: http://bbs.fmuser.com
1 / 26
Advertisement
Table of Contents
Related Manuals for FMUser FBE200-H.264-LAN
Summary of Contents for FMUser FBE200-H.264-LAN
- Page 1 For H.264/H.265 High Definition HD IPTV Streaming Encoder This manual is compatible for the following models: --FBE200-H.264-LAN (Not include WIFI and HLS) --FBE200-H.264 (include WIFI and HLS) --FBE200-H.265 (include WIFI and HLS) *Some functions mentioned in this manual are applied to corresponding models, not to all models listed, thus this manual shall never be used as a promise for all functions available on all models.
-
Page 2: Table Of Contents
1.4 Quick Guide for Connecting part ............................7 Login web manager ................................8 2.1 Computer IP setting ................................8 2.2 Connect to FMUSER FBE200 Encoder ..........................8 Status ..................................... 9 3.1 Device Status: ..................................10 3.2 Audio info ................................... 10 3.3 Main Stream / Extended stream / 3... -
Page 3: Overview
1280*720 and for the Third stream is 720*576. These three streams all support the IP protocols output of RTSP / HTTP/ Multicast / Unicast / RTMP. FMUSER FBE200 IPTV Encoder can deliver H.264/ H.265/ video streams with multi channels of IP output which are independent from each other,to various servers for IPTV & OTT applications, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server , RED5,and some other servers based on UDP / RTSP / RTMP / HTTP / HLS / ONVIF protocols. -
Page 4: Technical Specifications
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 1.2 Technical Specifications Input Video input 1 x HDMI (1.4a ,1.3a) (support HDCP protocol, or 1 x SDI for option) HDMI input 1920×1080_60i/60p, 1920×1080_50i/50p, 1280×720_60p,1280×720_50p 576p,576i,480p,480i and below Resolution Audio input 1 x 3.5mm Stereo L / R, Support 32K ,44.1K audio signal sources. - Page 5 FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com Streaming media server, as: Wowza, FMS,Red5,Youtube, Upstream, RTMP Nginx, VLC, Vmix, NVR etc. Support main stream, sub stream and 3rd stream，support web page Three streams preview video, Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box...
-
Page 6: Appearance

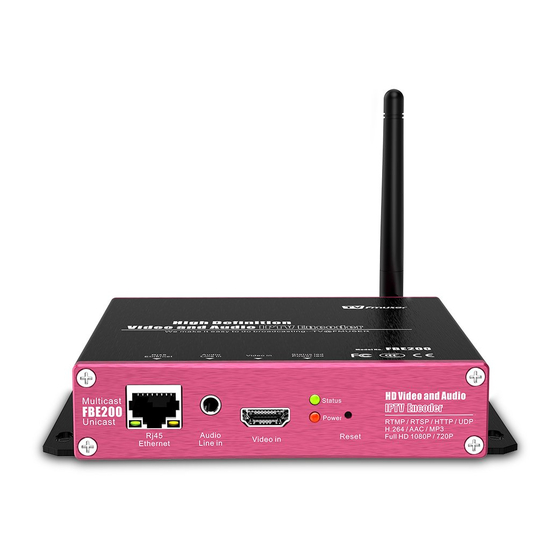

FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 1.3 Appearance Front Panel: 1. RJ45 100M / 1000M Cable Network 2. 3.5mm Stereo Audio Line in 3. HDMI Video in 4. Status LED / Power LED: -The red light is the indicator for power supply. -
Page 7: Quick Guide For Connecting Part
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com FBE200-H.264/H.265-WIFI 1. 2.4G WIFI Antenna Interface--SMA-K (FBE200-H.264-LAN doesn’t have this interface.) 2. Micro USB Power Port (5V,optional) 3. DC Power Port (12V) Attention: 5V and 12V power supply can only work one at same time. -
Page 8: Login Web Manager
2 Login web manager 2.1 Computer IP setting > The default IP address for FMUSER FBE200 HDMI Encoder is 192.168.1.168. > Your computer’ IP address must be 192.168.1.XX for connecting with Encoder. (Note: "XX" can be any number ranging from 0 to 254 except 168.) When your network is not in 192.168.1.X , you need a Multiple subnets to login the... -
Page 9: Status
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com User Name: admin Password: admin Status You will be able to see all status information of the FEB200 encoder, which includes stream URLs, encode parameters, HDMI signal information, audio capture information and audio encode parameters, as well as video preview and color adjustment interface, etc. And you can directly copy them to the VLC player software for decoding. -
Page 10: Device Status
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 3.1 Device Status: 1) Device ID 2) Device Version: The Firmware version. 3) Video info: Video signal parameters that inputted in. 4) Interrupt Count: Increasing intervals indicates it has video input. If it displays as 0, it... -
Page 11: Rd Stream
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 3.3 Main Stream / Extended stream / 3 stream 1) Resolution: 1920*1080 ----Output stream resolution. 2) RTSP: rtsp://192.168.1.168:554/main ---- it can be directly copied to the VLC player software for decoding. 3) TS over IP: ----Http / Unicast / Multicast, only work one at same time. -
Page 12: Live Video Show
Download it at http://www.videolan.org/vlc/ Since Firefox is constantly updated to cause live preview unavailable, we recommend using chrome and ie-tab, check it here: http://bbs.fmuser.com/live-preview 3.5 Video Color and Brightness setting If you had open the HLS, you may try the hls address to set on your HLS URL: http://192.168.1.168:8080... - Page 13 Modifications will take effect upon restart of the device. 1) Set FMUSER FBE200 encoder’s IP address according to your LAN IP. For example, if your LAN IP is 192.168.8.65, FBE200 IP should be set to 192.168.8.XX ("XX" can be any number ranging from 0 to 254 except from 168).
-
Page 14: Media Setting
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 5 Media Setting Media page includes video encoding parameters for the stream setting, such as Mirror, flip and deinterlace setting, output OSD subtitles and bmp LOGO, as well as audio input setting, Audio resampling, audio encode, volume control etc. -
Page 15: Media Setting
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 5.1 Media setting You can modify “Audio input”, “Resample” etc if needed. Audio input: HDMI audio / Line in Resample (Hz): disable/32k/44.1k Audio LR: L+R/Left/Right Audio encode: AAC-LC/AAC-HE/MP3 Volume: form -4--+4db Video Mirror Flip: disable/mirror/flip/mirror Flip Deinterlace: Disable/Enable Disable: when you use 1080p, 720p…input... -
Page 16: Main Media Setting (Video)
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 5.2 Main media setting (video) > Not all models support both H.264 and H.265 at the same time, you can choose the corresponding ones based on your need. If you want to support RTMP you should choose the baseline profile ,H.265 only supports baseline profile, if to use HLS , please make sure to set it to Baseline. -
Page 17: Osd Setting
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com Main Stream is from 1360*768 to 1920*1080 Extended Stream is from 800*600 to 1280*720 3rd Stream is from 480*270 to 720*576 Main Stream Ext Stream Stream 5.3 OSD setting Make you LOGO on you video. -
Page 18: Access
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 6 Access： FBE200 supports protocol of HTTP, RTSP, Unicast IP, Multicast IP, RTMP and ONVIF. You can choose any of them on the access page according to your application. 18 / 26... -
Page 19: Service Info
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 6.1 Service Info Setting the HLS, HTTP Port, TS mode, RSTP port and Audio. HLS select: Some models supports HLS, you can select HLS for corresponding stream . Attention: When you use h.265 , You need to close the HLS. - Page 20 FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com Follow this when you setting RTMP: 1) finish the setting rtmp 2) click the set up botton 3) click the reboot botton 4) wait it about 3 minutes ,then reflash the ustream /Dacast / Youtube ..browser live view.
- Page 21 FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com -- Go to folder "Flash Player", find "VideoPlayer.html" and open it -- Input: rtmp://ip address/RTMP/HDMI, then choose "live" to see the images, or input rtmp://192.168.1.100:1935/live/hdmi and choose "LIVE", then click "Play stream" You can enable "HTTP", "RTSP" or "Multicast IP" as needed. After all the data are settled, click the button "Apply"...
-
Page 22: Main Stream Setting
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 6.3 Main Stream Setting You can enable one of "HTTP", "Unicast" or "Multicast” as needed, after all the data is settled, click "set up". Notes: All the data above can be adjusted based on your practical application. -
Page 23: How To Set Rtmp For Facebook Youtube Dacast Ustream
You can modify the device ID and administrator password on the system setting page, as well as upgrading the firmware, restoring the factory settings, restarting the encoder and other functions. Upgrade: Upgrade the firmware; download newest firmware http://bbs.fmuser.com/firmeware Reset password: change the login password, which must be Less than or equal to 12 characters. -
Page 24: Order Guide
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com About Reboot If you use the button of apply, modify, it will run immediately, not need for reboot. If you use the button of upgrade, set up, a reboot is needed, you can click the reboot button or re-plug the power sourece. -
Page 25: Troubleshooting
Audio Freezing .You need to reboot the encoder / VLC / decoder when the Resample change. We advice you use the same Audio Resample (32/44/48/192khz) files. 6) Others, like blurred screen…. Go to the http://bbs.fmuser.com, there is a solution to help you correct the problem on live streaming. 25 / 26... -
Page 26: Get Help ( Http://Bbs.fmuser.com )
FMUSER INTERNATIONAL GROUP INC. Forum: http://bbs.fmuser.com 10 Get Help ( http://bbs.fmuser.com ) All FMUSER products are equipped with 10 years technical support. If you have any questions related to our products, please visit http://bbs.fmuser.com and submit a help post, our engineer will reply you quickly.
