Page 1: User Manual

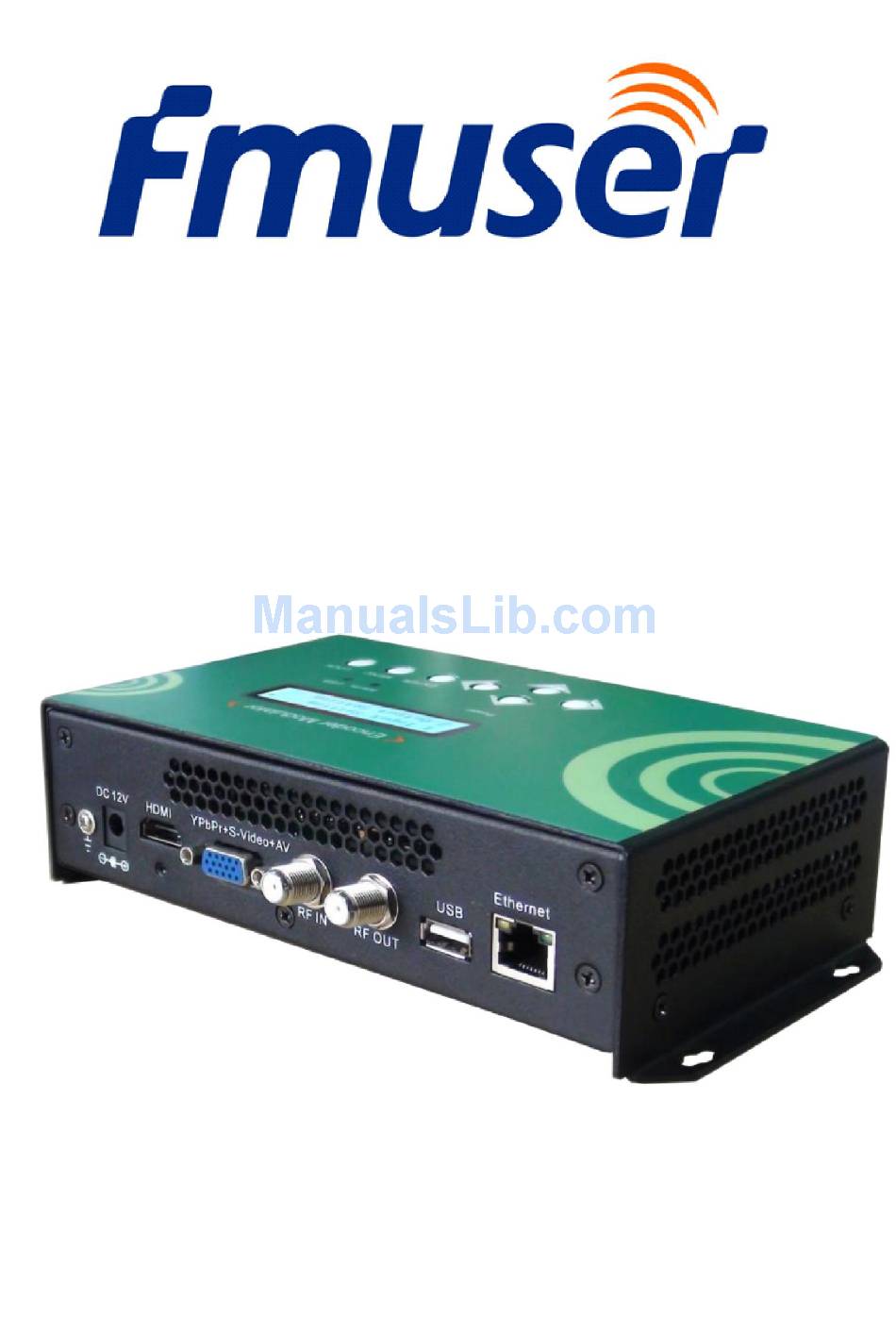

FUTV4658 HD/SD Encoder & Modulator HDMI/YPbPr/S-Video/AV to DVB-T Digital RF --- Home Use User Manual... -
Page 2: Table Of Contents
Thank you for choosing our encoder modulator. Please read this manual carefully to install, use and maintain the encoder modulator in the best conditions of performance. Keep this manual for future reference. Directory CHAPTER 1 Product Introductions..............1 General Description ....................1 System Connection Chart ..................2 Technical Specifications ...................2 CHAPTER 2 Safety Instruction and Installations ............4... -
Page 3: Chapter 1 Product Introductions
CHAPTER 1 Product Introductions General Description FUTV4658 series encoder & modulator is FMUSER’s consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out. -
Page 4: System Connection Chart
LCD Window Control Buttons Indicators Air Vent System Connection Chart FUTV4658 Encoder Modulator RF out Monitor Signal input Encoder Modulator Combiner Attenuation: 10dB TV+AV to the RF in Technical Specifications Encoding Section HDMI MPEG-4 AVC/H.264 Encoding H.264 Profile High profile, main profile H.264 Level... - Page 5 MPEG-4 AVC/H.264 Encoding Interface CVBS *1, YPbPr*1, S-Video*1 720x576_50i (PAL); 720x480_60i (NTSC) CVBS & S-Video: Video Resolution YPbPr:1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P 0.500~19.500 Mbps Bit rate Encoding MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC Interface 1*Stereo /2*mono 48KHz Sample rate Audio 64, 96,128, 192, 256, 320, 384kbps MPEG1 Layer II: 128, 192, 256, 320, 384kbps Bit rate...
-
Page 6: Chapter 2 Safety Instruction And Installations
CHAPTER 2 Safety Instruction and Installations Safety Instructions WARNING: Hot plug is not allowed since it may cause system halted. To prevent fire or electrical shock, do not expose the device to rain or moisture. The encoder modulator is powered with a voltage of 12V DC. The power supply voltage must not exceed the recommended voltage, which otherwise may cause irreparable damage to the device and the invalidation of the warranty. -
Page 7: Cascade Installation
Connect the power plug to the mains socket. Cascade Installation FUTV4658 unit has 1 TV signal to RF output encoded as DVB-T Digital TV signal. Several FUTV4658 units can be cascaded in order to increase the capacity. The maximum capacity of a series of N units is 1xN incorporated TV signals. -
Page 8: Download Path: English→Tool→Ts Creator Xxx.rar
TS Creator.exe Download link: http://pan.baidu.com/share/link?shareid=2908902623&uk=4230600371 Download path: English→Tool→TS Creator xxx.rar... -
Page 9: Chapter 3 Operations Of Ts Creator Software
Chapter 3 Operations of TS Creator Software FUTV4658 encoder modulator has a function to create TS videos with the software supplied with the product. Users can create *.ts files containing images, videos and audios in a simple and intuitive way, and play them on a television through FUTV4658’s USB port. - Page 10 Users can filter the null packet to boost the video’s effect bit rate. A single video can be maximum 2.0 GB in size. (FUTV4658 cannot play a video bigger than 2GB.) After setting all the parameters, click to start the transformation. Click “OK” when it prompts “The operation completed normally.”...
-
Page 11: File Management
Two files will be generated if the Null Packet has been filtered. TS video for preview through the “Creator” interface by clicking “Play” button TS video: Users need to save it in the USB memory, and then FUTV4658 can read it and play the video. Remarks: l All the file names are automatically generated. -
Page 12: Chapter 4 Devices Operations And Management
CHAPTER 4 Devices Operations and Management FUTV4658 is controlled and managed through the key board and LCD display. LCD Display – It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied. - Page 14 1) FUTV4658: Model number; Input=Lock: Signal has been collected. 2) Alarm Status: For example, if the signal cable disconnected, it will display Video 1 Not Lock under this menu. 3) Uptime: It displays the working time duration of the device. It times upon power on.
- Page 15 Interface: select a right interface type from the options provided. The device then can Resolution: signal source resolution, automatically search the signal and starts to encode. read-only. Video Bit rate: adjust in range of 1.000~19.000 Mbps. Rate Mode: this unit user can choose CBR or VBR.
- Page 16 29) Save Config: Yes/No-to save/give up the adjustment of setting. 30) Load Saved CFG: Yes/No-to load/ not to load the saved configuration. 31) Reset all sets: Yes/No-choose/not choose the factory’s default configuration. 32) LCD Time out: A time limit that LCD will light off. Choose among 5s, 10s, 45s, 60s, 90s and 120s (seconds).
-
Page 17: Chapter 5 Operations Of Record Ts And Play Ts Through Usb Disk
Chapter 5 Operations of Record TS and Play TS through USB Disk The FUTV4658 encoder modulator has functions of: *.ts Video Creation See Chapter 3. TS Record and Save Record mode select Single File USB Device Record TS Main Menu... - Page 18 USB device through RF. While the auto mode is off, FUTV4658 will play the encoded TS through RF when the power is connected.
- Page 19 Press Enter key to re-connect the USB disk. Remove Device Main Menu USB Device Remove device USB Device Press Enter key to safely remove the USB disk. FUTV4658 will then automatically resume encoding process and playing the program input from the encoder module.
-
Page 20: Chapter 6 Operations Of Web-Server
Chapter 6 Operations of Web-server In addition to using front buttons to control the encoder modulator and USB device, users can also perform the same operation in an easier way with the web Brower in the PC (Personal Computer). Login The default IP address of this device is 192.168.0.136. -
Page 21: Operation
Operation Summary: When we confirm the login, it displays the WELCOME interface as Figure-2 where users can have an overview of the device’s system information and working status. System information Input information and encoding working status. User can click any item here to enter Alarm Area: Green light indicates the corresponding interface to check the corresponding... - Page 22 Select an interface according to the signal source user connects and intends to encode. For configuring CVBS/S-video signal only Figure-3 Parameters → TS Config: From the menu on left side of the webpage, clicking “TS Config”, it displays the interface where users can configure the parameters for the transport stream as prompt. (Figure-4) Figure-4...
- Page 23 Parameters → Modulator: From the menu on left side of the webpage, clicking “Modulator”, it displays the interface where users can configure the modulating parameters for the RF output. (Figure-5) Figure-5 Parameters → USB: From the menu on left side of the webpage, clicking “USB”, it displays the interface where users can operate USB device.
- Page 24 For reading USB To stop USB device device status recording or playing TS 1. Configure TS file parameters and click ‘set’ to start recording. 2 Click ‘stop’ to stop recording TS and the playing section below is available to operate. 1 Configure TS playing parameters and click ‘set’...
- Page 25 USB device through RF. While the auto mode is off, FUTV4658 will play the encoded TS through RF when the power is connected.
- Page 26 Figure-8 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-9 where to set the login account and password for the web NMS. (Figure-9) Figure-9 System → Save/Restore: From the menu on left side of the webpage, clicking “Save/Restore”, it will display the screen as Figure-10 where to save or restore your configurations.
- Page 27 Figure-10 System → Backup/Load: From the menu on left side of the webpage, clicking “Backup/Load”, it will display the screen as Figure-11 where to backup or load your configurations. Figure-11 System → Update (FPGA)/(CPU)/(Web): From the menu on left side of the webpage, clicking “Update”, it will display the screen as...
- Page 28 Figure-12-14 where to update the corresponding part for the device. Figure-12 Figure-13...
- Page 29 Figure-14 System → Reboot: From the menu on left side of the webpage, clicking “Reboot”, it will display the screen as Figure-15 where to restart the device manually. Figure-15...
-
Page 30: Appendix
Appendix Australia Air Channels Australia Air Channels Frequency Frequency Start Center Start Center 599.5 606.5 48.5 613.5 59.5 620.5 66.5 627.5 88.5 634.5 97.5 641.5 104.5 648.5 140.5 655.5 177.5 662.5 184.5 669.5 191.5 676.5 198.5 683.5 205.5 690.5 212.5 697.5 219.5 704.5... - Page 31 6MHz Bandwidth 7MHz Bandwidth 8MHz Bandwidth Modulation Guard Interval Guard Interval Guard Interval Constellation 1/16 1/32 1/16 1/32 1/16 1/32 6.03 The weak ability of error-correcting and anti-interference in this area 6.03 5.80 6.45 6.83 7.03 6.64 7.37 7.81 8.04 QPSK 6.22 6.58...
- Page 32 F MU S E R I NT E R NA T I ONA L G R OU P I NC . 广州市汉婷生物技术开发有限公司 32 / 32...
