Artesyn MVME2500-ECC Quick Start Manual

MVME2500-ECC
Quick Start Guide
P/N:6806800L02B (August 2014)
1
What's in the box?
Make sure you receive all items of
your shipment:

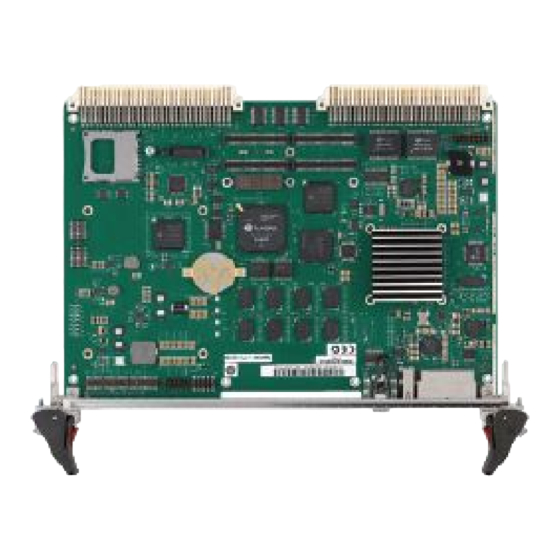

• One MVME2500-ECC VMEbus
board
• One printed copy of Quick Start
Guide
• One printed copy of Safety Notes
Summary
• Other items that were ordered
When installing or servicing the
module or accessories, strictly
observe the safety precautions
in the Safety Notes Summary.
Otherwise, personal injury or
property damage may occur.
2
Observe ESD-safe
measures
• Use either a properly grounded ESD
wrist strap or make sure that you are
working in an ESD-safe environ-
ment.
• Connect to the ESD connector at the
front or the rear of the system.
3
Prepare the installation
site
• For information on the environmen-
tal and power requirements, see the
MVME2500-ECC Installation and Use
manual.
• Operating temperatures refer to the
temperature of the air circulating
around the blade and not to the
actual component temperature.
4
Install the RTM
1. Power down all equipment and discon-
nect the power cable from the AC
power source.
2. Remove the chassis cover.
3. Remove the filter panel(s) from the card
slot(s) at the rear of the chassis (if the
chassis has a rear card cage).
4. Install the top and bottom edge of the
transition module into the rear guides
of the chassis.
5. Ensure that the levers of the two injec-
tor/ejectors are in the outward posi-
tion.
6. Slide the transition module into the
chassis until resistance is felt.
7. Move the injector/ejector levers in an
inward direction.
8. Verify that the transition module is
properly seated and secure it to the
chassis using the two screws adjacent
to the injector/ejector levers.
9. Connect the cables to the transition
module.
