Summary of Contents for Pyle PYLE Hydra Series PLCD13MR

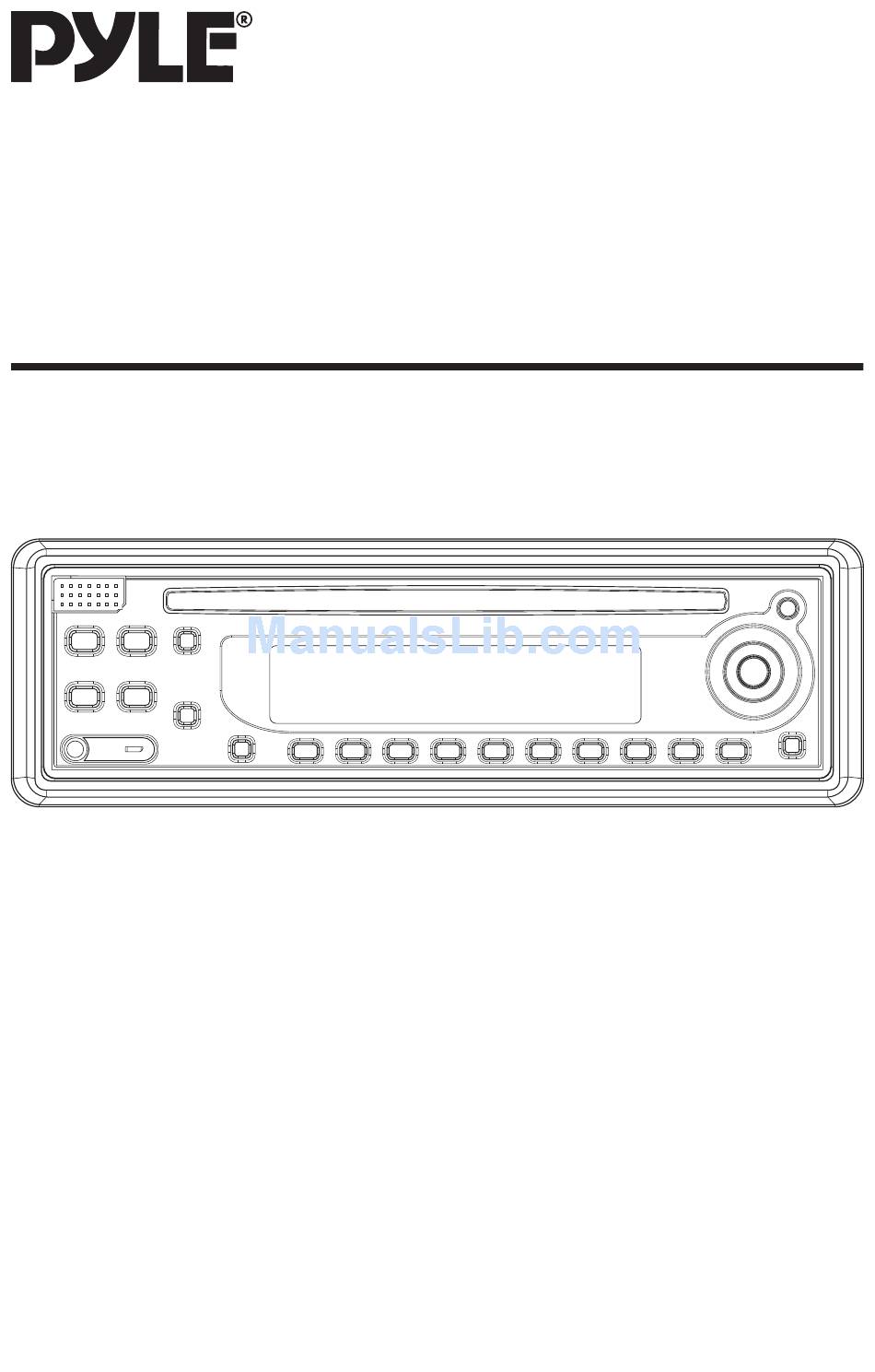

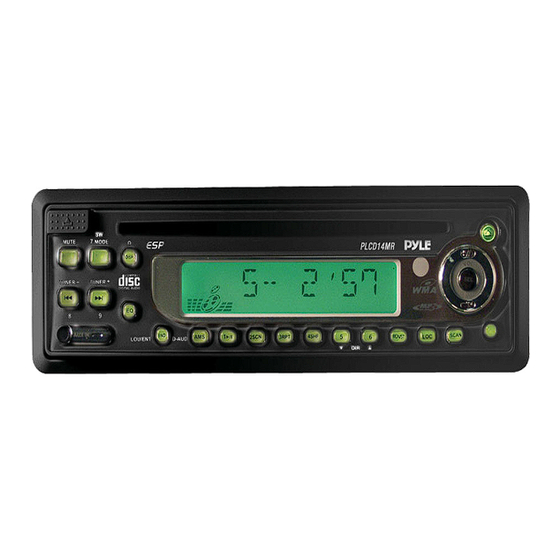

- Page 1 PLCD13MR OWNER’S MANUAL Mobile Audio System • MP3/CD Player • PLL Synthesizer Stereo Radio • Compact Disc Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Electronic Shockproof (ESP) Function • Auxiliary Input Function • Remote Control www.pyleaudio.com...
-
Page 2: Table Of Contents
CONTENTS Installation ...3 Take out screw before installation...3 DIN Front-Mount (Method A) ...3 Installing the unit...3 Removing the unit...4 DIN Rear-Mount (Method B) ...5 Using the detachable front panel ...6 Wiring Connection ...7 Operation ...8 Location of keys...8 Switching on/off the unit ...9 Faceplate release ...9 Sound adjustment...9 Loudness ...9... -
Page 3: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. -
Page 4: Removing The Unit
INSTALLATION Sleeve L Key Outer Trim Ring Front Panel R Key 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. -
Page 5: Din Rear-Mount (Method B)
INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle. -
Page 6: Using The Detachable Front Panel
USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button (RELEASE) on the front panel and pull off the front panel. Release Button Front Panel 2. Keep front panel into the case. Protective Case Front Panel INSTALLING THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel... -
Page 7: Wiring Connection
WIRING CONNECTION ANTENNA CONNECTOR FUSE IGNITION SWITCH (ACC+) FUSE MEMORY YELLOW BACK-UP (B+) BLACK GROUND (B–) POWER BLUE ANTENNA WHITE FRONT Lch SPEAKER WHITE/BLACK GREEN REAR Lch SPEAKER GREEN/BLACK MAIN UNIT REAR RCA CABLE GREY GREY/BLACK VIOLET VIOLET/BLACK (GREY) Rch RED Lch WHITE FRONT Lch SPEAKER... -
Page 8: Operation
OPERATION LOCATION OF KEYS... -
Page 9: Switching On/Off The Unit
OPERATION SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button (except button (7) and When system is on, press turn off the unit. FACEPLATE RELEASE Press button (7) to detach the removable faceplate. SOUND ADJUSTMENT Press SEL button (10) to select the desired adjustment mode. -
Page 10: Radio Operation
OPERATION RADIO OPERATION • SWITCHING TO RADIO MODE Press MODE button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band and frequency. • SELECTING THE FREQUENCY BAND At radio mode, press BND/LOU (ENT) button (13) shortly to select the desired band. -
Page 11: Playing All Tracks In Random
OPERATION • PLAYING ALL TRACKS IN RANDOM Press SHF button (23) to play all tracks on CD in random order. Press again to cancel the function. • EJECTING A DISC Press button (4) to stop CD playing and eject the disc from the disc slot (5). -
Page 12: Display Information
OPERATION (‘ ‘), then - Use the TUNE/TRACK UP/DOWN buttons to list all songs under this directory and select the title. - Press BND/LOU (ENT) button to confirm and start the play. - Repeat the above steps if the newly selected title is again a directory. -
Page 13: Remote Control Handset
REMOTE CONTROL HANDSET FUNCTION KEYS & CONTROL DSP (0) BND (LOU/ENT) MODE (7) TUNE/SKIP/CH (8) Tune/SKIP Down Button (V, W, X, 8 For MP3/WMA Operation) TUNE/SKIP/CH (9) Tune/SKIP Up Button (Y, Z, SPACE, 9 For MP3/WMA 10. AS/PS (D-AUD) 11. M1 - M6 12. -
Page 14: Disc Notes
OPERATION DISC NOTE A. Notes on discs: 1. Attempting to use non-standard shape discs (e.g. square, start, heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape etc., onto the label side or the recording side of any discs, as it may cause a malfunction. -
Page 15: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain CD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB) -
Page 16: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power. The car ignition switch is not on. The fuse is blown. Disc cannot be Presence of CD disc inside loaded or ejected.
