User manual for XMR401HDS
Channel: The total channel numbers of the device, including analog and digital channels.
Channel name: Change the name manually.
Enable: Enable the main stream record function
Resolution: The analog channel supports D1/HD1/CIF/WD1/WHD1/WCIF while the digital one supports
720P.
Frame Rate: Frame Rate of the recording.
Quality: Picture Quality of the recording.
Record mode: Ignition, Time, Event optional. Each channel can be set separately. The sub-stream and
mirror record are the same

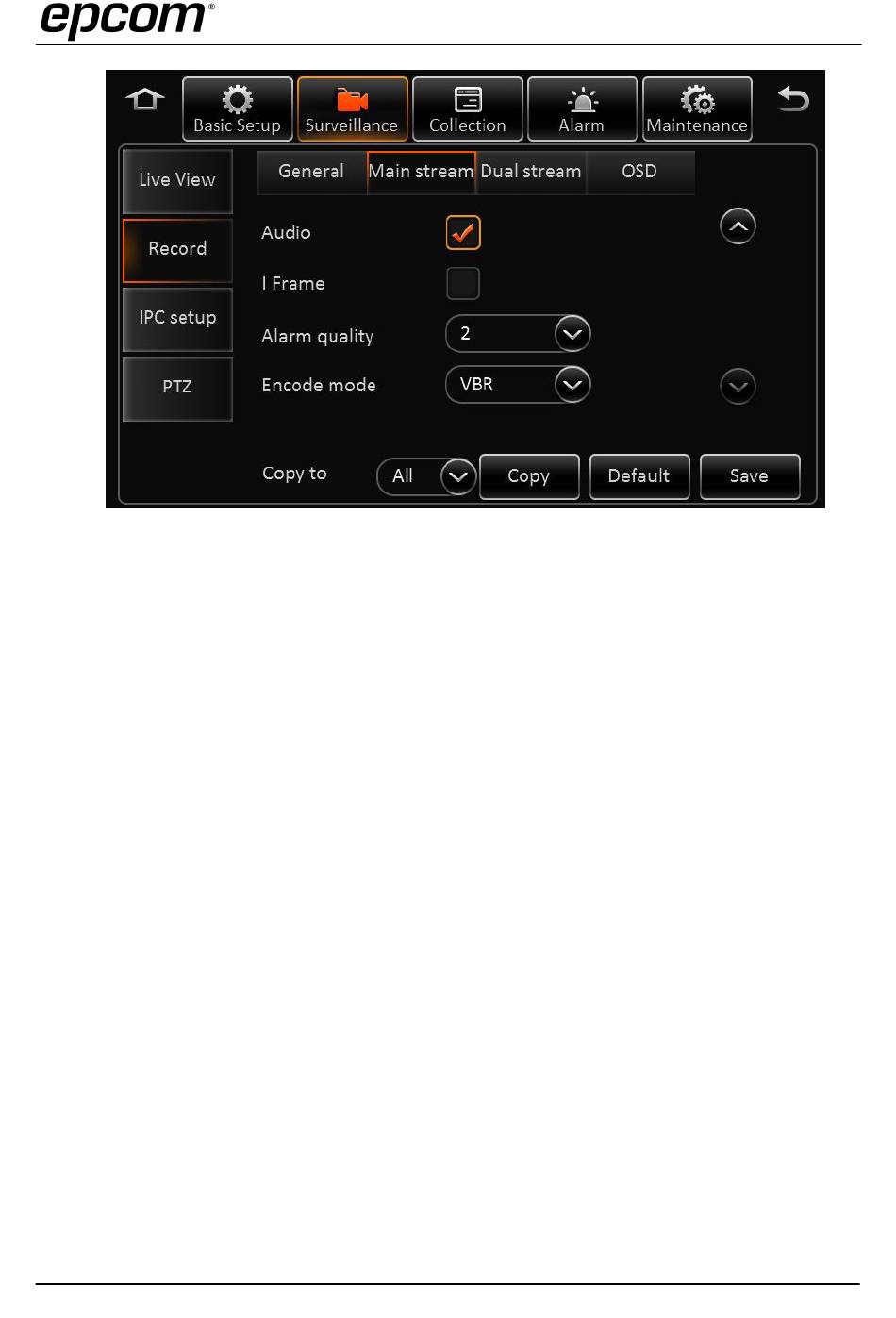

Audio: Enable the audio. Note: Audio cannot be record separately
I frame: Enable to let the frame rate invalid, record file that does not have alarm is I frame only.
Alarm quality: The alarm image is different from the normal recording image.
Encode mode: It supports VBR and CBR modes.
 Record- Dual stream
