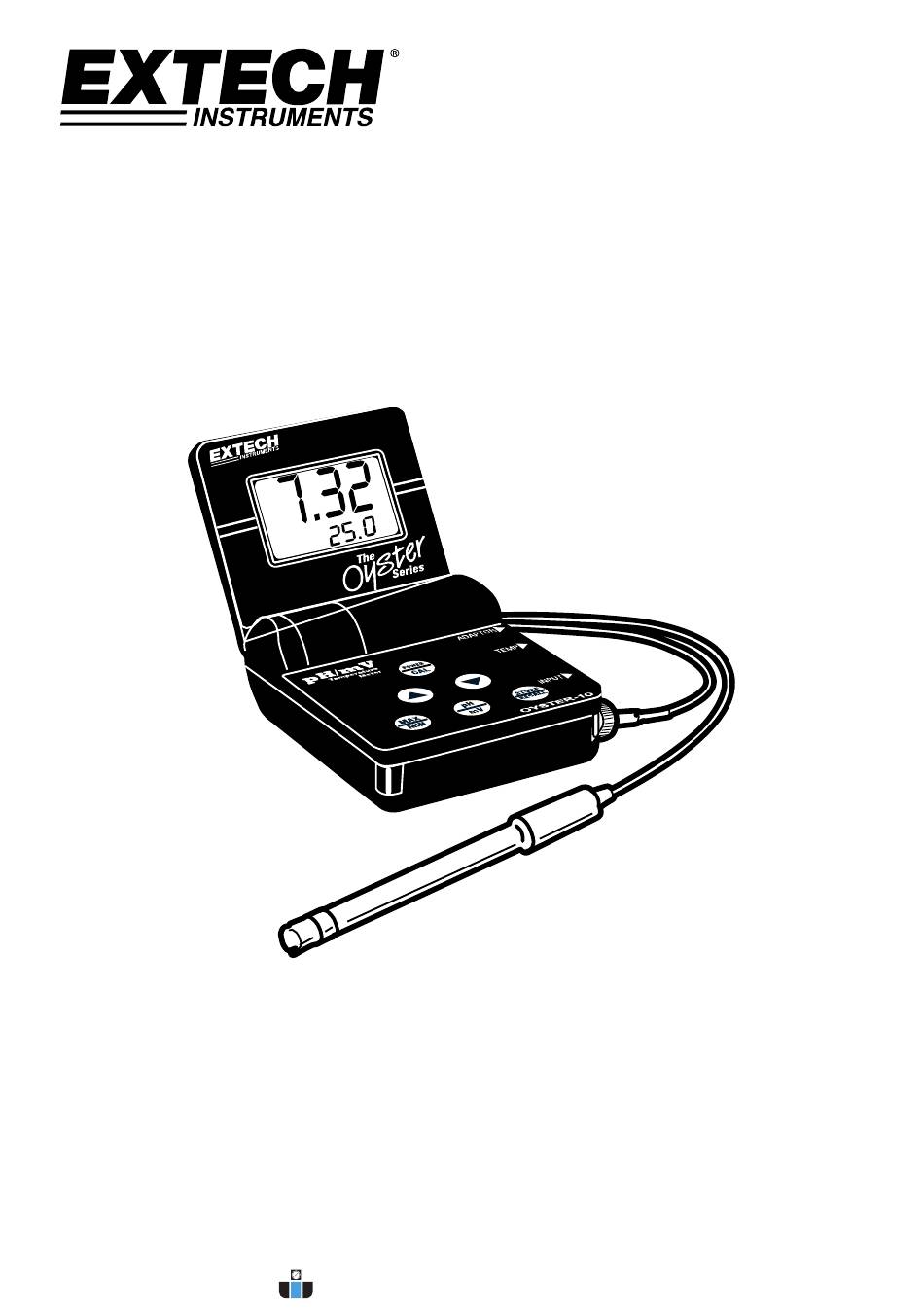

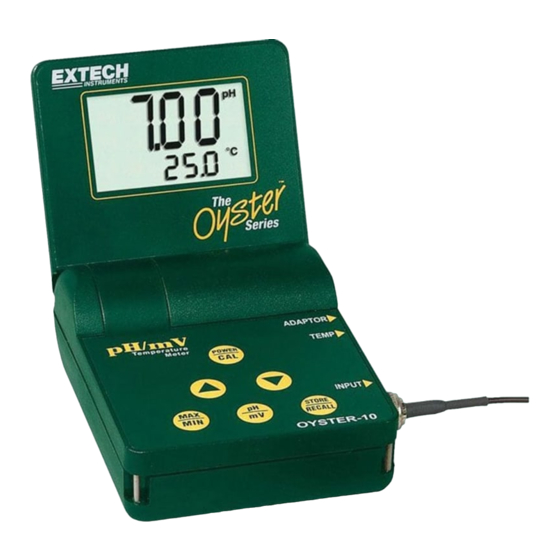

- Page 1 USER GUIDE pH/mV/Temperature Meter Model OYSTER-10 888.610.7664 www.calcert.com sales@calcert.co...
-
Page 2: Meter Description
This instrument is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide. Extech Instruments is an ISO-9001 certified company. -
Page 3: Calibration And Operation
pH Overview pH is a unit of measure (ranging from 0 to 14pH) indicating the degree of acidity or alkalinity of a solution. pH tests are the most commonly performed measurements in water quality testing, using the hydrogen ion activity of a solution to determine acidity or alkalinity. Solutions with a pH less than 7 are considered acidic, solutions with a pH higher than 7 are known as bases, and solutions with a pH of exactly 7 are considered neutral. - Page 4 pH Measurement and Temperature Compensation 1. Use the pH/mV button to select the pH mode. The unit of measure appears on the LCD. 2. Connect the pH electrode to the meter and place the sensor end in the solution under test. 3.
- Page 5 MAX/MIN Display 1. The meter memorizes the highest (MAX) and lowest (MIN) readings when prompted. 2. Press and hold the MAX/MIN button until both the MAX and MIN icons appear on the LCD. The meter will now begin keeping track of the MIN and MAX readings. 3.
- Page 6 pH Electrode Model 60120B Operation The Following information applies to the Epoxy Body, Sealed Reference Combination pH Electrode Model 60120B. Electrode Considerations 1. The 60120B pH electrode is recessed in the polymer body allowing it to rest against the bottom of a beaker without damaging the glass bulb.
-
Page 7: Specifications
Specifications Range (Resolution) Accuracy ± 1000 mV DC (1 mV) + 2mV Temperature 32.0 to 212.0 F (0.0 to 99.9 + 0.8 F (0.5 0.00 to 14.00pH (0.01pH) + 0.02pH Temperature Compensation 32 to 212 F (0-100 C) AUTO or MANUAL modes Power 9 volt battery or optional AC adapter Display... -
Page 8: Maintenance And Troubleshooting
Maintenance and Troubleshooting Electrode Cleaning The type of electrode coating that occurs over time will determine the cleaning method. Soft coatings can be removed by vigorous stirring or by using a squirt bottle. Organic chemical coating (hard coatings) should be chemically removed. Only in extreme cases should the bulb be cleaned mechanically. - Page 9 Troubleshooting an Electrode Problem Symptom Cause Recommended Solution Long response time or Clogged Junction Soak in 4.07 M Potassium Chloride (KCl) reading drift @ 60 C for 30 minutes. Replace electrode if necessary. Strong Alkaline measurement Soak in 0.1 M HCL overnight Deteriorated Gel layer of pH Replace electrode sensing membrane...
-
Page 10: Warranty
Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization. Visit the website www.extech.com for contact information. A Return Authorization (RA) number must be issued before any product is returned. The sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. FLIR Systems, Inc. specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be liable for any direct, indirect, incidental or consequential damages. FLIR’s total liability is limited to repair or replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or oral, is expressed or implied. Calibration, Repair, and Customer Care Services FLIR Systems, Inc. offers repair and calibration services for the Extech Instruments products we sell. NIST certification for most products is also provided. Call the Customer Service Department for information on calibration services available for this product. Annual calibrations should be performed to verify meter performance and accuracy. Technical support and general customer service is also provided, refer to the contact information provided below. Support Lines: U.S. (877) 439‐8324; International: +1 (603) 324‐7800 Technical Support: Option 3; E‐mail: support@extech.com Repair & Returns: Option 4; E‐mail: repair@extech.com Product specifications are subject to change without notice Please visit our website for the most up‐to‐date information www.extech.com FLIR Commercial Systems, Inc., 9 Townsend West, Nashua, NH 03063 USA ISO 9001 Certified Copyright © 2013‐2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com Oyster10-en-US_v2.3 9/15 888.610.7664 www.calcert.com sales@calcert.co... -
