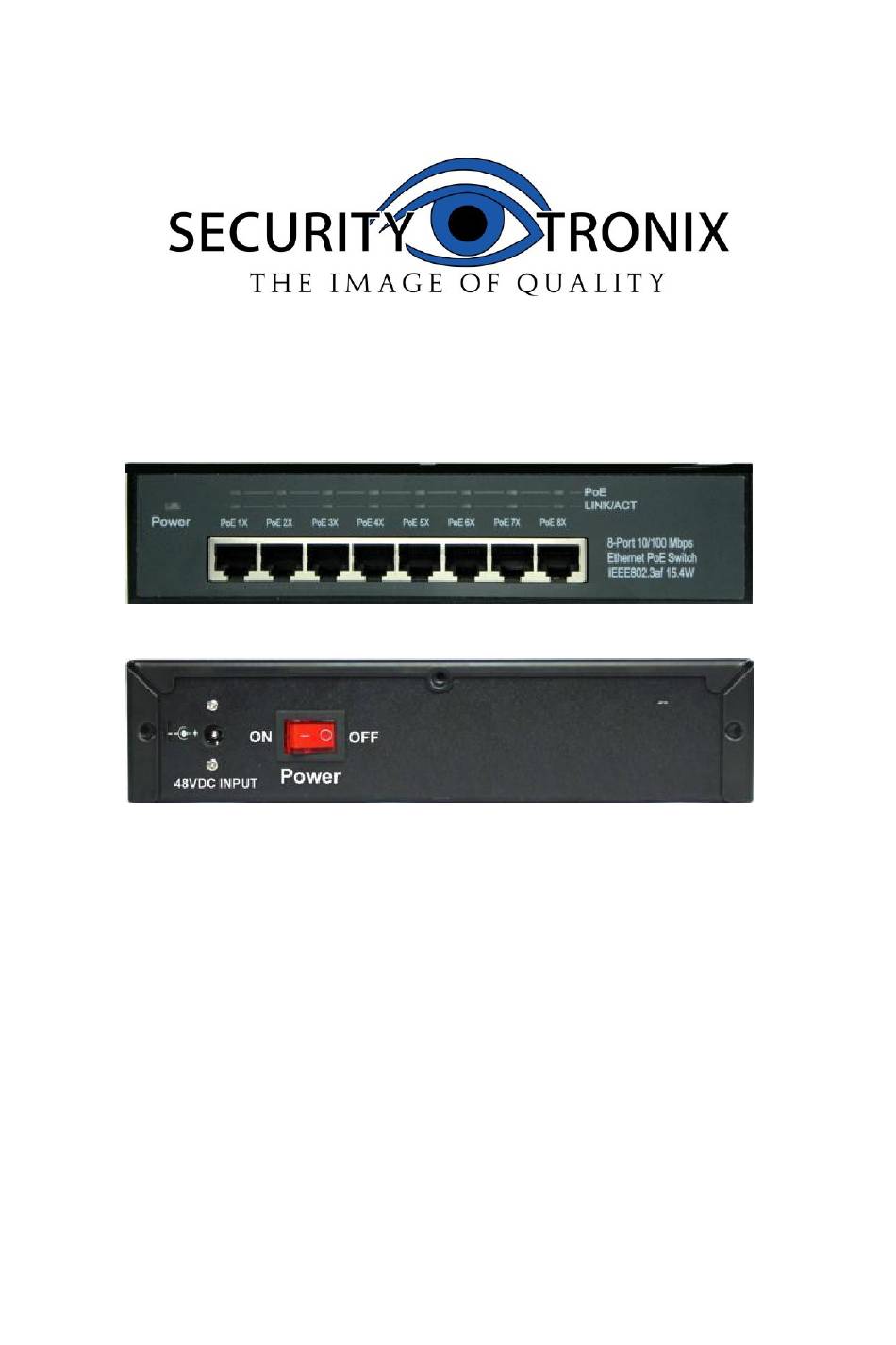

- Page 1 ST-POEAF-S08 8 port PoE switch User Guide IMPORTANT This user’s guide contains information on the limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire guide carefully...
- Page 2 The ST-POEAF-S08 is a Power Source Equipment (PSE) and fully compatible with Powered Devices (PD) that comply with the IEEE 802.3 af PoE standard. The ST-POEAF-S08 enables users to attach IEEE802.3 af compliant devices such as wireless Access Points (APS), VOIP phone, IP camera, printer and Network Attached Storage (NAS) directly to the ST-POEAF-S08 without requiring additional power on the network.
- Page 3 User’s Guide. If any item is found missing or damaged, please contact your salesperson. •Installation: The installation of the ST-POEAF-S08 requires the following steps: The surface must support at least 2.0Kg (4.4 lbs) for the switch. ...

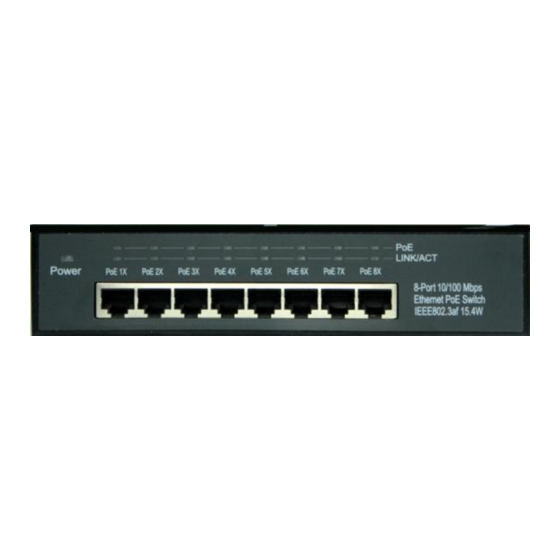

- Page 4 All ports are Auto-MDI type port. The switch can auto negotiate to MDII or MDI-X type, so you can connect RJ-45 cable regardless of whether it is a standard or crossover cable. Description •Front Panel: This is the front panel of the ST-POEAF-S08, showing the 8 RJ-45 ports and LED display. LINK/ACT Power 8-port •...
- Page 5 Description •LED Indicator: The LEDs provides instant status feedback, and helps monitor and troubleshoot when required. Power LED LED on: Power ON / LED off: Power off. LINK/ACT LED on: this port is Link and Active LED off: this port is not correct Link or inactive LED on: The PoE power device (PD) is connected and the port is supplying power successfully LED off: no PoE power device (PD) connected...
- Page 6 For additional support, please contact SecurityTronix Technical Support: support@securitytronix.com (800) 688-9282 Press “3” for Tech Support, then “2” for CCTV Tech Support.
