Icom iDAS IC-F3103D Instruction Manual page 47

D Using the BC-193 to rapid charge the BP-265
The BC-193 provides rapid charging of the Li-ion battery pack
(BP-265 only). Never use for any other battery pack.
Charging time period: Approximately 2.5 hours (for the BP-265)
The following item is additionally required:
• A power adapter (not supplied with some versions) or the DC
power cable (OPC-515L/CP-23L).
Power adapter
(A different type,
or no power
adapter is sup-
plied, depending
on the version.)
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V cig-
arette lighter socket)
can be used instead
of the power adapter.
* About OPC-515L
White line:
Black line :
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.

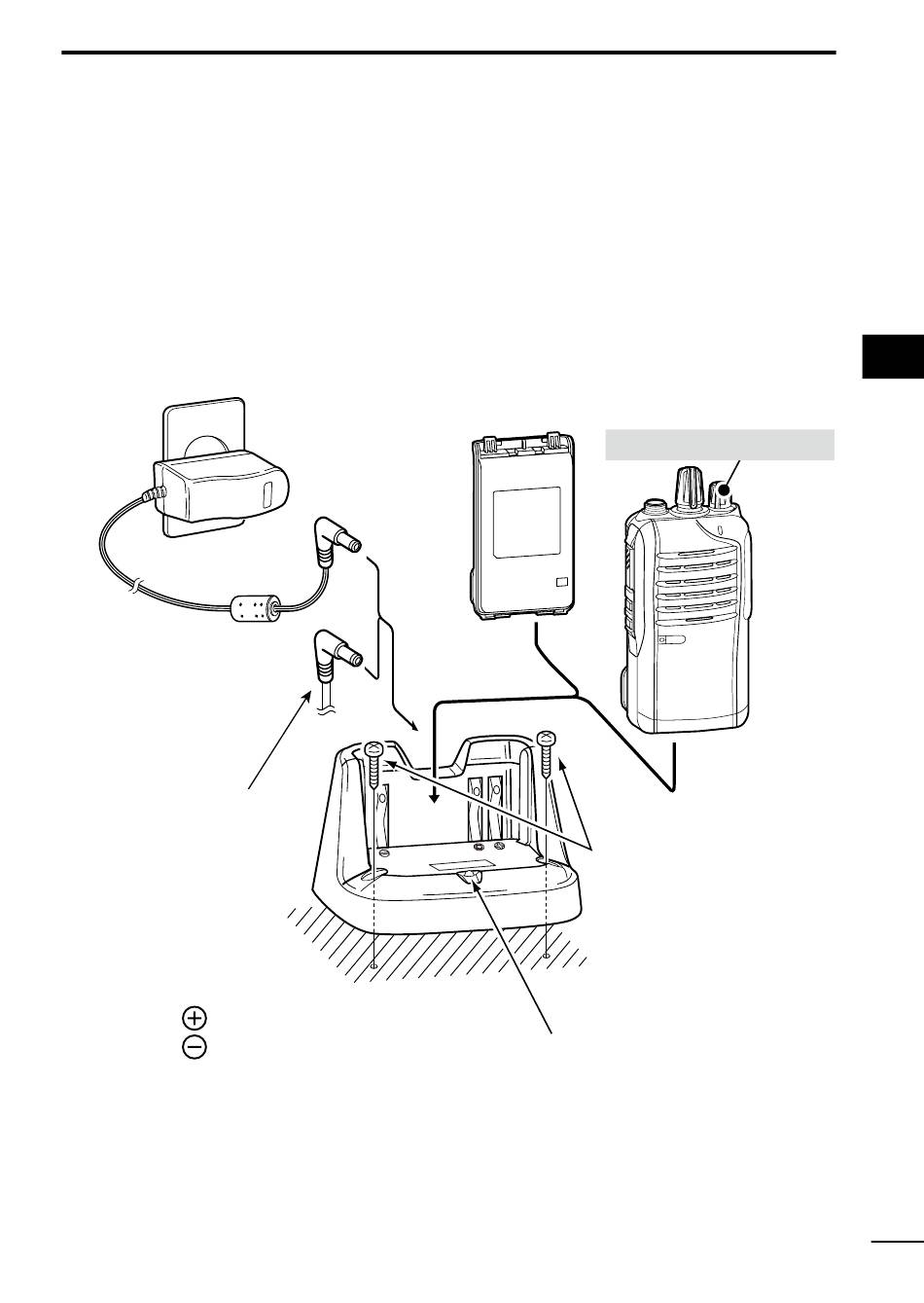

BATTERY CHARGING
Battery pack
Turn OFF the power
Screws*
( Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
Status indicator
• Lights orange:
While charging.
• Lights green:
Charging is completed.
