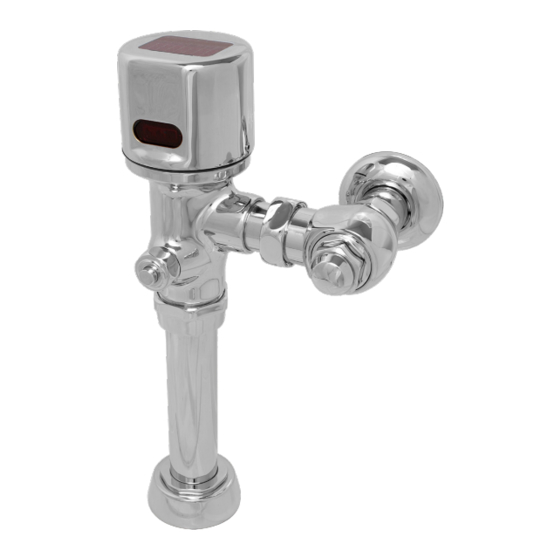

- Page 1 Sensor Faucets and Flush Valves OPERATION & MAINTENANCE MANUAL HB-8000SLE Series Flush Valve (includes HB8RSLE) www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...
- Page 2 8000 Series U.S. Patent 6192530B1, 5699994 Sensor Faucets and Flush Valves AC, Battery, or Solar Powered Sensor Operated Flush Valves The Hydrotek 8000 Series Automatic Flush Valves are the most advanced, • ADA Compliant. Meets all barrier free codes electronic flushing system in the industry today. By incorporating our field- •...

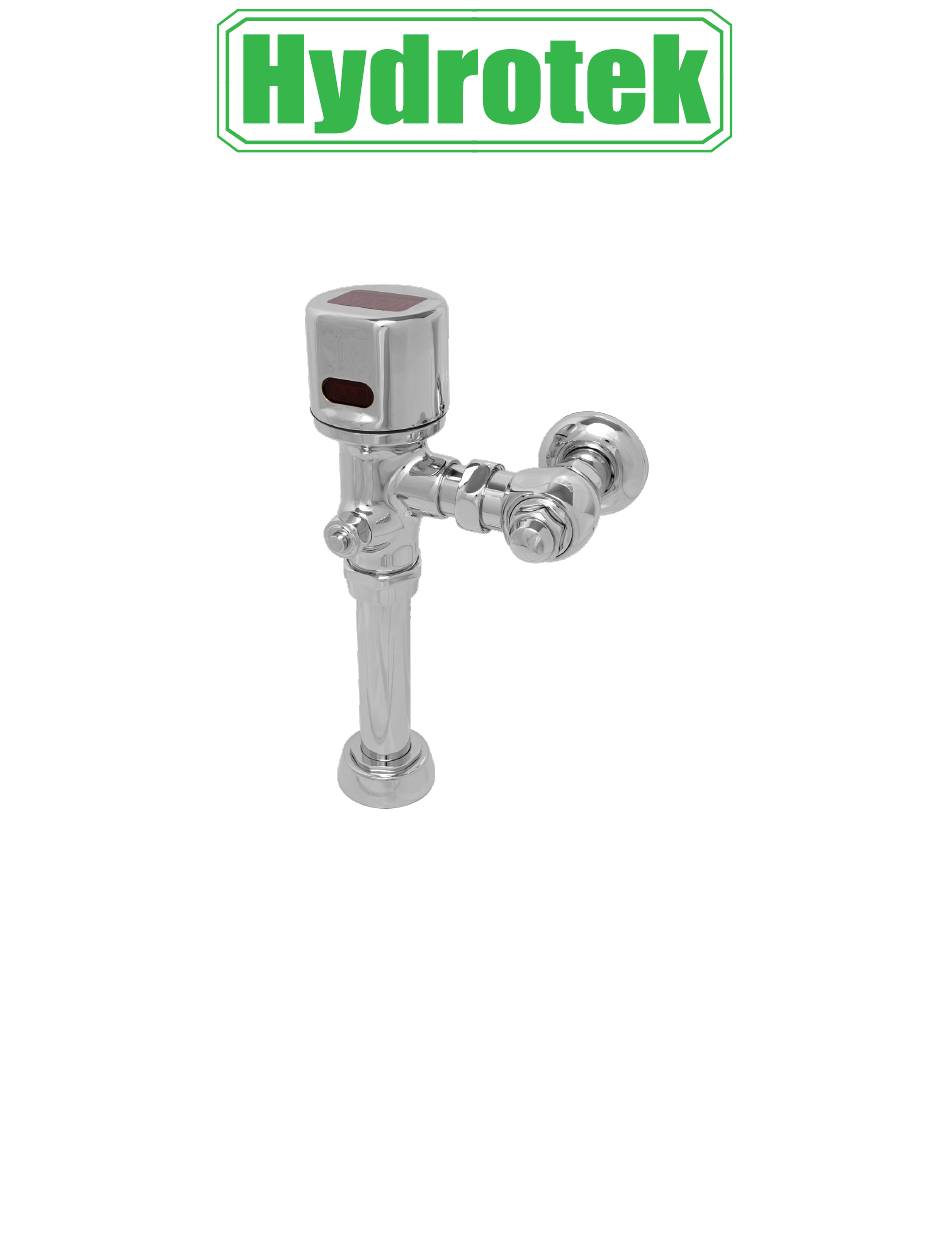

- Page 3 Hydrotek Autoflush Valves 8000 Series Meets A.S.S.E. Standard 1037-89 H-8000C (AC Powered) HB-8000C (Battery Powered) The 8000 Series Flush Valves are available in: PLUMBING SPECIFICATIONS: Model Fixture Supply Line Top Spud Flow Rate H-8000C Series (AC Powered): H/HB-8000C-A Closet 1”...
- Page 4 The valve should fl ush automati cally. If not, refer to the Troubleshooti ng Guide. 9. Flow rates are preadjusted from the factory. If minor adjustments are needed, contact Hydrotek for further details. Parts: 1. Set Screws 7. Vacuum Breaker HYDROTEK INTERNATIONAL, INC.
- Page 5 Control module is defective • Manual override button is sticking IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this flush valve. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-9883.
- Page 6 HB-8000SLE Series Sensor Operated Flush Valve Assembly Parts No Description Part Number Battery Holders (2 required) HCC-104A Control Module HCC-080SLE Solenoid Coil HCC-098 Sensor Eye and Cable HCC-080E HC-084 (3/4”) Sweat Kit Assembly HC-084B (1”) HC-082A (3/4”) Angle Stop - Complete Assembly HC-082B (1”) Angle Stop Repair Kit HC-082C...
- Page 7 HB-8000SLE Series Sensor Operated Flush Valve Control Module LEGEND 1. DC Input Pin Receptor 6. Control Cable (Sensor Eye) Pin Receptor 2. Dip Switches 7. Sensor Distance Adjustment Dial 3. Reset Button 8. Solar Input Pin Receptor 4. Indicator Lights 9.
- Page 8 *0.125 flow rate setting only available if ordered that way from the factory Flush Valves are preset to 1.0 GPF for urinal and 1.6 GPF for closet For alternate flow rates not listed, please contact Hydrotek direct Sensor Arming Time...
