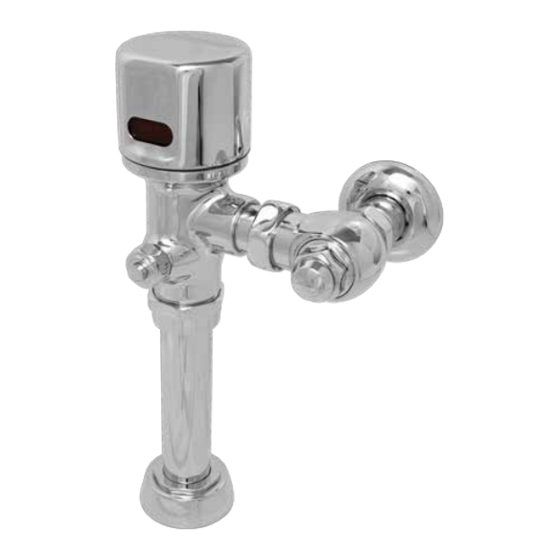

Hydrotek HB-8000C series Operation & Maintenance Manual
Flush valve
Hide thumbs
Also See for HB-8000C series:
- Operation & maintenance manual (10 pages) ,
- Operation & maintenance manual (15 pages)
Related Manuals for Hydrotek HB-8000C series
Summary of Contents for Hydrotek HB-8000C series

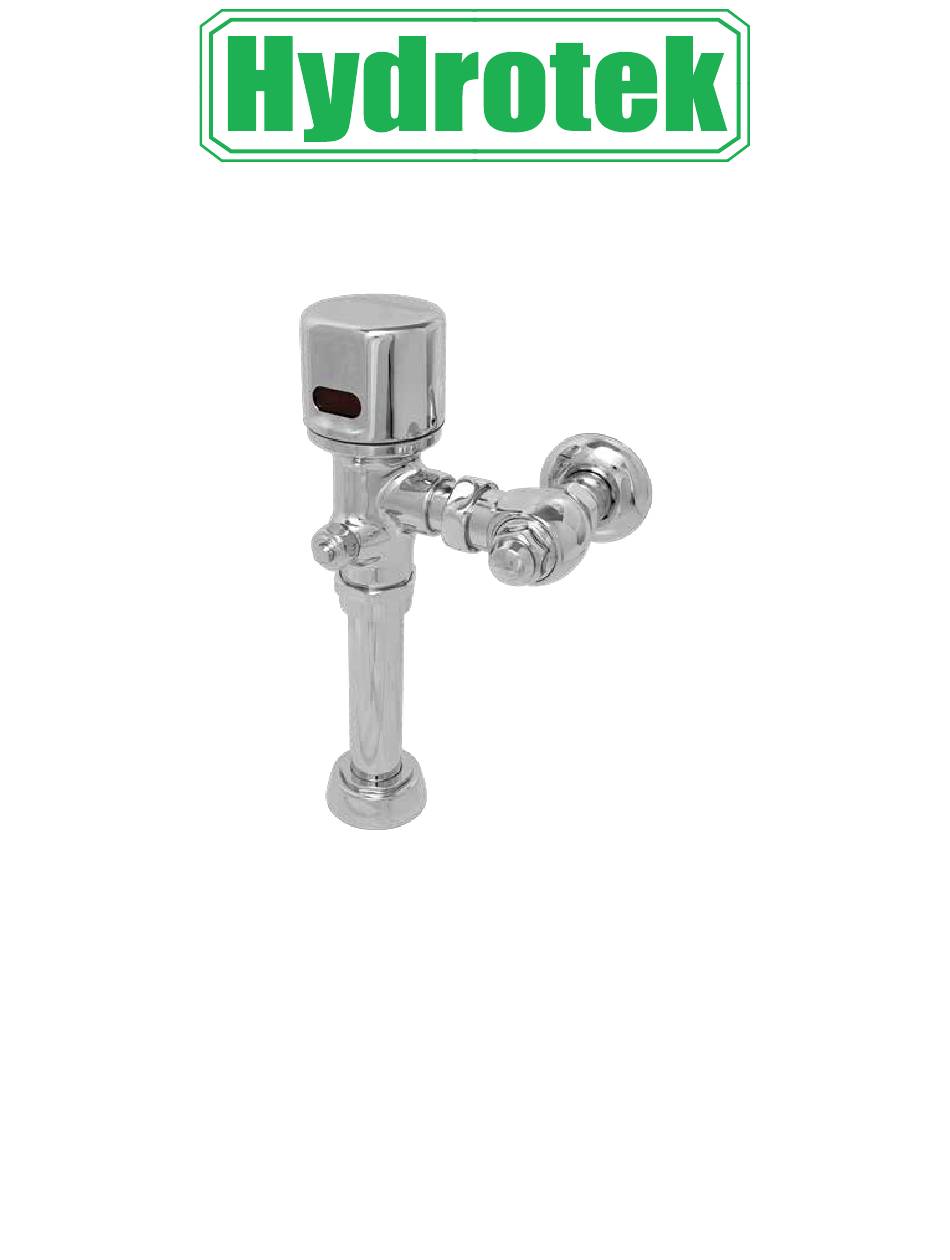

- Page 1 ISO 9001 Certified OPERATION & MAINTENANCE MANUAL HB-8000C Series Flush Valve (includes HB8RFKC) www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...
- Page 2 8000 Series U.S. Patent 6192530B1, 5699994 AC, Battery, or Solar Powered Sensor Operated Flush ISO 9001 Certified The Hydrotek 8000 Series Automatic Flush Valves are the most advanced, • ADA Compliant. Meets all barrier free codes electronic flushing system in the industry today. By incorporating our field- •...
- Page 3 1.0 GPF *Water conservation, concealed and AC with DC backup models available* HB8RFKC-C/U Cl. & Ur. 0.5-3.5 GPF ELECTRICAL REQUIREMENTS: HB-8000C Series (Battery Powered): • AC Powered Units: 9 HB-8000C-A (Closet) – Solenoid valve and sensor: 6V DC 9 HB-8000C-B1 (Urinal) –...
-
Page 4: Installation Instructions
HB-8000C Solar Powered Flush Valve with Battery Backup Installation Instructions... -
Page 5: Troubleshooting Guide
Control module is defective • Manual override button is sticking IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this flush valve. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-9883. - Page 6 HB-8000C Series Sensor Operated Flush Valve Assembly Parts No Description Part Number Battery Holders (2 required) HCC-104A Control Module HCC-080B Solenoid Coil HCC-098 Sensor Eye and Cable HCC-080E HC-084 (3/4”) Sweat Kit Assembly HC-084B (1”) HC-082A (3/4”) Angle Stop - Complete Assembly HC-082B (1”)
- Page 7 HB-8000C Series Sensor Operated Flush Valve Control Module LEGEND 1. DC Input Pin Receptor 6. Control Cable (Sensor Eye) Pin Receptor 2. Dip Switches 7. Sensor Distance Adjustment Dial 3. Reset Button 8. AC Input Pin Receptor 4. Indicator Lights 9.
- Page 8 *0.125 flow rate setting only available if ordered that way from the factory Flush Valves are preset to 1.0 GPF for urinal and 1.6 GPF for closet For alternate flow rates not listed, please contact Hydrotek direct Sensor Arming Time...
