Operation & MAINTENANCE MANUAL
4000C Series Faucet
www.hydrotekintl.com
5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807
Phone (800) 922-9883 | Fax (866) 670-5580
Advertisement
Table of Contents
Related Manuals for Hydrotek H-4000C-LR
Summary of Contents for Hydrotek H-4000C-LR
- Page 1 ISO 9001 Certified OPERATION & MAINTENANCE MANUAL 4000C Series Faucet www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...
- Page 2 Proven Hydrotek craftsmanship and reliability Available in: AC Powered Models D Low Lead, AC Powered (H-4000C-LR) D Low Lead, AC Powered Scrub Sink (H-4000C-SD-LR) D Low Lead, AC Powered with DC Backup (H-4000C-LRDC) D Low Lead, AC Powered with DC Backup Scrub Sink (H-4000C-LRDC)

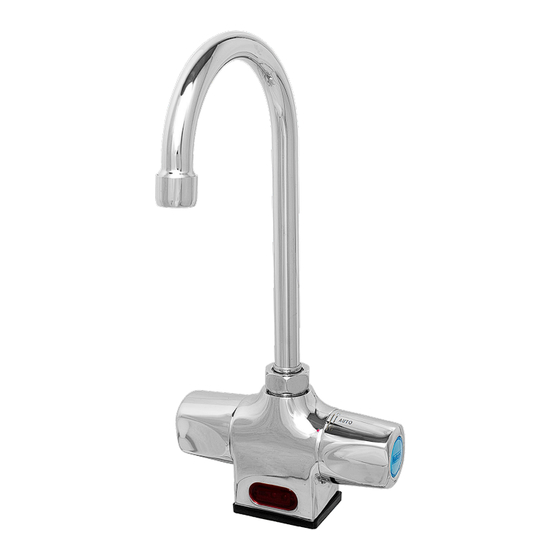

- Page 3 Hydrotek Automatic Faucets 4000C Series Deck Mounted / Mixing / Manual On & Off with Temperature Adjust Meets ANSI/ASME A112.18.1 M-1989 Operation: A continuous, invisible beam is emitted from the sensor. The faucet is activated by placing hands under the spout within the effective range of the beam.
- Page 4 If the faucet does not functi on properly, refer to Orlando, FL 32807 the troubleshooti ng guide. 800.922.9883 (Phone) 12. Sensor sensiti vity is preset at the factory. If you need to alter this se� ng, please call Hydrotek 1-800-922-9883. 866.670.5580 (Fax) www.hydrotekintl.com...
-
Page 5: Troubleshooting Guide
IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this faucet. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-9883. Care and Cleaning Instructions: •... - Page 6 4000C Series Sensor Operated Mixing Faucet Solenoid Valve Repair Kit Installation HCB-017B Solenoid Valve Repair Kit Control Disc Control Spring Control Valve O-Ring Piston Piston Spring Solenoid Coil Solenoid Cover Blue Side Mark Visit our website for a video of this procedure! www.hydrotekintl.com 1.
- Page 7 4000C Series Sensor Operated Mixing Faucet Control Module Settings Shut Off Time Delay (After hands are removed) Factory Preset Delay = Switch Position 1 Sec 2 Sec 3 Sec 4 Sec 5 Sec Sensor Distance 6 Sec Mode Distance 7 Sec 4”...
- Page 8 4000C Series Sensor Operated Mixing Faucet Assembly Parts No Description Part Number Solenoid Valve Repair Kit HCB-017B Temperature Adjuster Rod HC-027A Assembly Sensor Eye & Cable HCC-032 Supply Tube (2 needed) HC-025C 2.0 GPM Laminar Flow Control HB-003CF Solenoid Coil HCC-019 Filter Screen (2 needed) HC-020...
