- Page 1 Sensor Faucets and Flush Valves OPERATION & MAINTENANCE MANUAL 1000C Series Faucet www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...

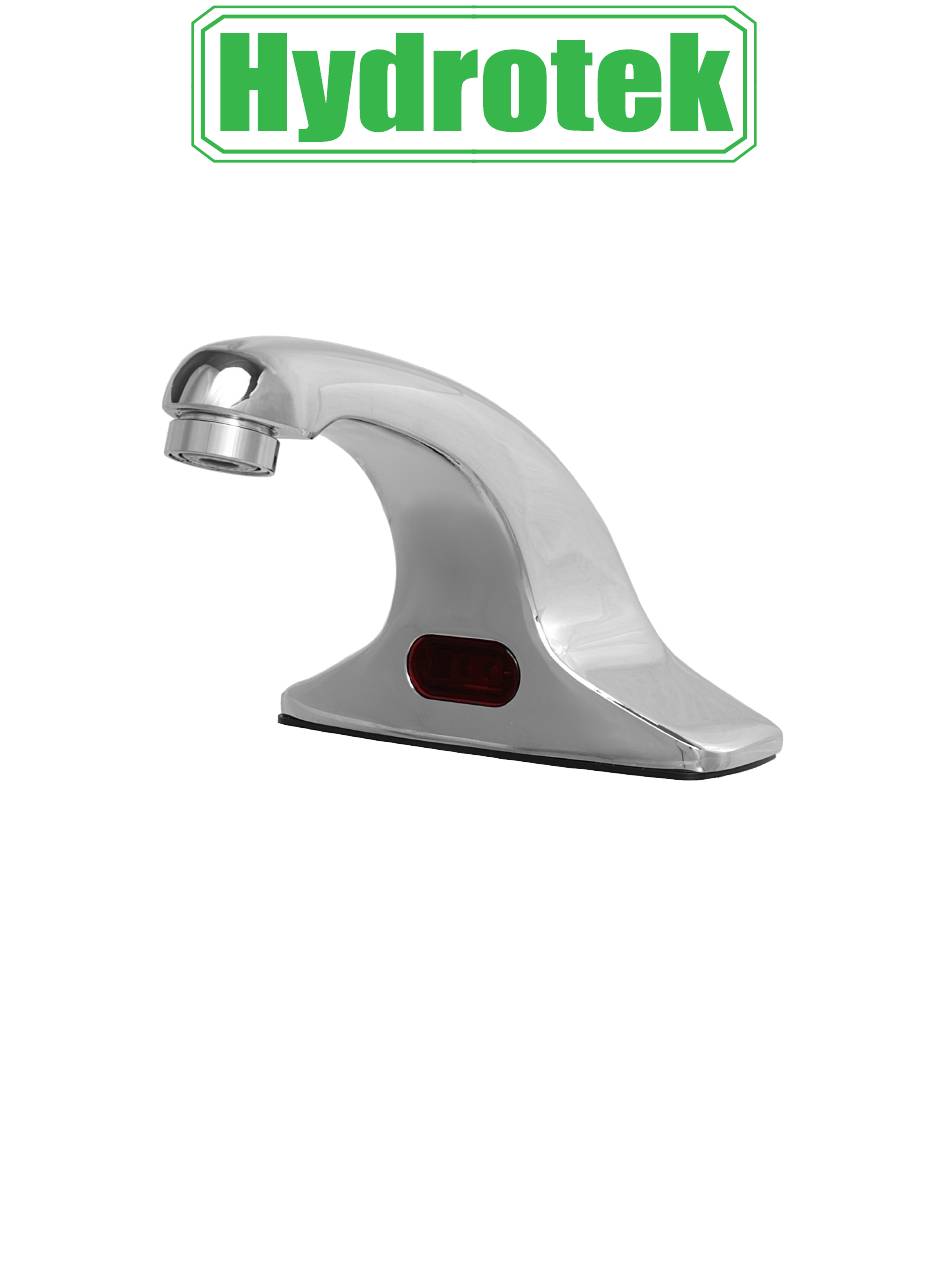

- Page 2 AC or Battery Powered Sensor Operated Faucet Sensor Faucets and Flush Valves The 1000C Series faucet is a 4-inch center-set, piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution that promotes better hygiene and energy savings.
- Page 3 1000C Series AC or Battery Powered Sensor Operated Faucet Sensor Faucets and Flush Valves Specifications: Faucet Construction: - Solid brass, chrome plated Deck Mounted Control Circuit: - Solid state, AC or battery, switchable Auto. Time-out: - Preset at 20 seconds and adjustable...
- Page 4 Should the fixture 800.922.9883 (Phone) overflow due to water exceeding the capability of the fixture and/ 866.670.5580 (Fax) or the drain pipe, Hydrotek will not be responsible for any damages. www.hydrotekintl.com...
-
Page 5: Troubleshooting Guide
IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this faucet. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922- 9883. Care and Cleaning Instructions: •... -
Page 6: Solenoid Valve Cleaning
4. Remove four Coil Screws (#2) and separate Coil operation. (#3) from Valve Seat (#4). 5. Clean or replace Control Disc (#5), Disc Spring (For further questions, please call Hydrotek Tech (#6), Piston, Piston Spring, and check the Piston Support at 1-800-922-9883 ext. 103) Sleeve for corrosion. - Page 7 1000C Series Sensor Operated Mixing Faucet Control Module Settings Shut Off Time Delay (After hands are removed) Factory Preset Delay = Switch Position 1 Sec 2 Sec 3 Sec 4 Sec 5 Sec Sensor Distance 6 Sec Mode Distance 7 Sec 4”...
-
Page 8: Assembly Parts
1000C Series Sensor Operated Mixing Faucet Assembly Parts Description Part Number PCB Module HCC-011B Sensor Eye and Cable HCC-030 Solenoid Valve Repair Kit HCB-017A Solenoid Assembly HCC-005 Solenoid Coil HCC-019 Battery Holder HCC-103A Plug-in Adapter HCC-008B...
