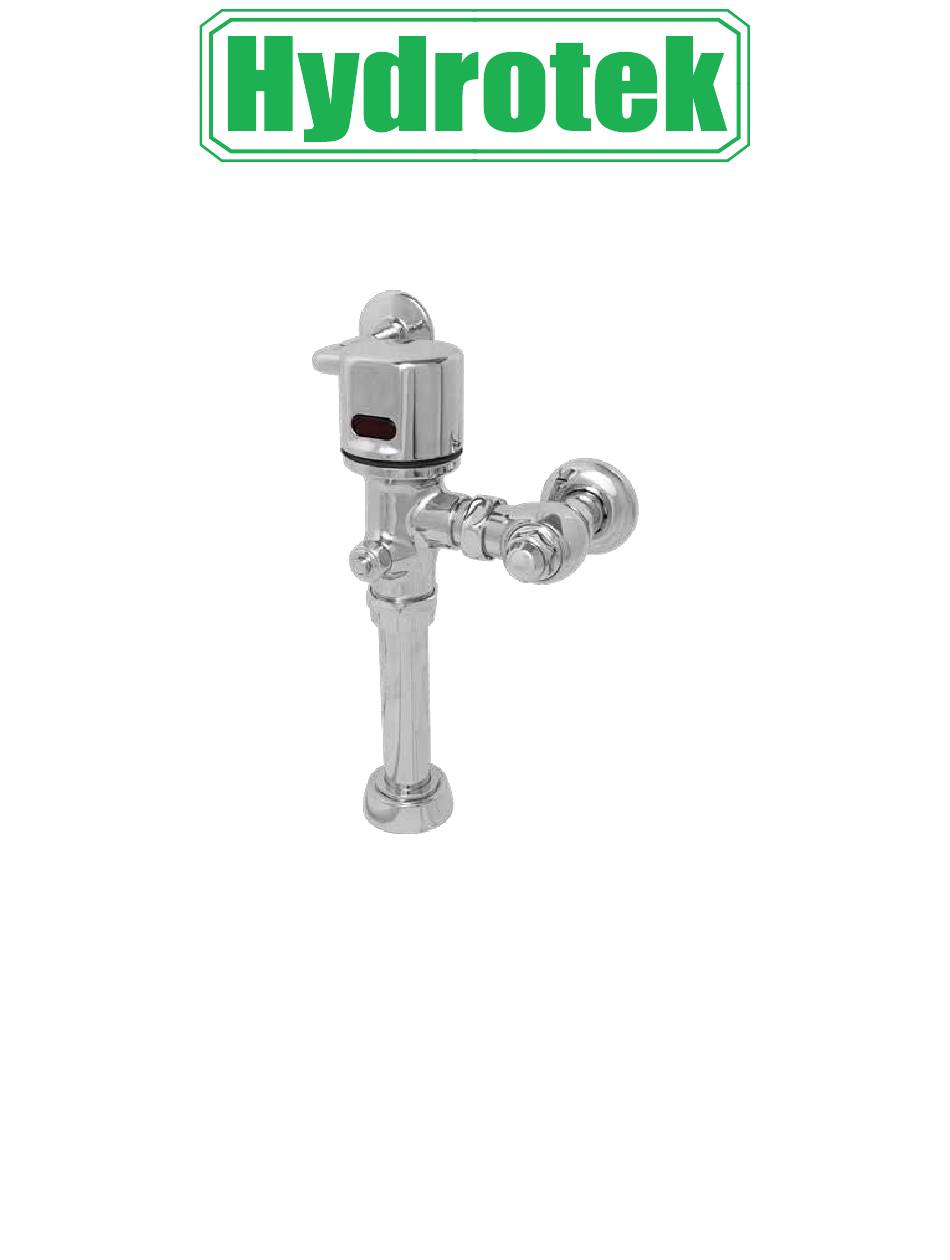

- Page 1 ISO 9001 Certified OPERATION & MAINTENANCE MANUAL H-8000C Series Flush Valve (includes H8RFKC) www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...

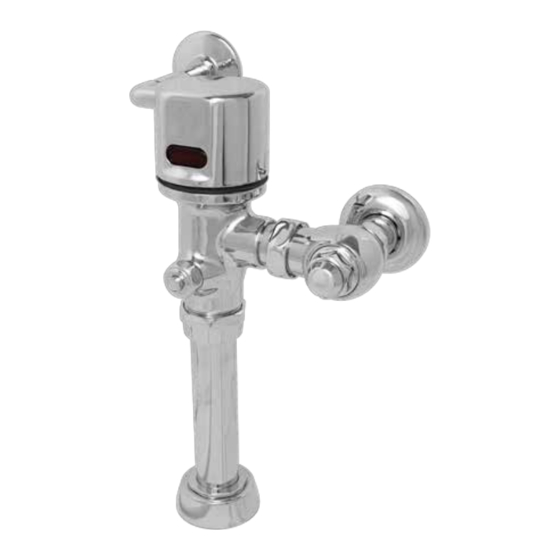

- Page 2 8000 Series U.S. Patent 6192530B1, 5699994 AC, Battery, or Solar Powered Sensor Operated Flush ISO 9001 Certified The Hydrotek 8000 Series Automatic Flush Valves are the most advanced, • ADA Compliant. Meets all barrier free codes electronic flushing system in the industry today. By incorporating our field- •...
- Page 3 H-8000C (AC Powered) HB-8000C (Battery Powered) The 8000 Series Flush Valves are available in: PLUMBING SPECIFICATIONS: Model Fixture Supply Line Top Spud Flow Rate H-8000C Series (AC Powered): H/HB-8000C-A Closet 1” 1-1/2” 1.6 GPF 9 H-8000C-A (Closet) H/HB-8-128 Closet 1”...
-
Page 4: Installation Instructions
3. Reinstall the Top Cap (2) onto the valve body and ti ghten the Set Screws (1). Install the Stop Valve (5) to the supply line using a Hydrotek Sweat Kit (opti onal). 4. Connect the valve body to the Stop Valve (5) using the Slip Joint Nut (6). -
Page 5: Troubleshooting Guide
Control module is defective • Manual override button is sticking IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this flush valve. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-9883. -
Page 6: Assembly Parts
H-8000C Series Sensor Operated Flush Valve Assembly Parts No Description Part Number AC Power Adapter HCC-008Cv Control Module HCC-080B Solenoid Coil HCC-098 Sensor Eye and Cable HCC-080E HC-084 (3/4”) Sweat Kit Assembly HC-084B (1”) HC-082A (3/4”) Angle Stop - Complete Assembly HC-082B (1”) -
Page 7: Control Module
H-8000C Series Sensor Operated Flush Valve Control Module LEGEND 1. DC Input Pin Receptor 6. Control Cable (Sensor Eye) Pin Receptor 2. Dip Switches 7. Sensor Distance Adjustment Dial 3. Reset Button 8. AC Input Pin Receptor 4. Indicator Lights 9. - Page 8 *0.125 flow rate setting only available if ordered that way from the factory Flush Valves are preset to 1.0 GPF for urinal and 1.6 GPF for closet For alternate flow rates not listed, please contact Hydrotek direct Sensor Arming Time...
-
Page 9: Guide Specification
® Dura-Ware 2162 Series Washout Urinal 2162-T-1-FV 2162-W-1-FV-2898 Fixture May Show Some Available Options Please visit www.acorneng.com for most current specifications. Washout Urinal Fixture is arranged to be installed on finished wall and serviced from the front side. Fixture is fabricated from 14 gage, type 304 stainless steel and is seamless welded construction. - Page 10 ® Dura-Ware 2162: Washout Urinal WALL THICKNESS AND TYPE (Must Specify) FLUSH VALVE OPTIONS (Must Specify) Thickness: ________ Type: o Concrete o Block o Steel Refer to Acorn Dura-Ware Supplementary for Box Cover(s) and Access Panel(s) MODEL NUMBER AND OPTIONS SELECTION o -FV Flush Valve, Mechanical BASE MODEL NUMBER...
- Page 11 ® Dura-Ware 2120 Series Siphon Jet Toilet - On Floor - Floor Outlet 2120-W-3-CN Fixture May Show Some Available Options Please visit www.acorneng.com for most current specifications. Siphon Jet Toilet - On Floor - Floor Outlet Fixture is arranged to be installed on finished wall from the front side. It is fabricated from 16 gage, type 304 stainless steel and is seamless welded construction.
- Page 12 Configure products and create specs with ease. Get Started www.mgispecbuilder.com ® Dura-Ware : 2120 Siphon Jet Toilet - On Floor - Floor Outlet WALL THICKNESS AND TYPE (Must Specify) TOILET SEAT OPTIONS Thickness: ___________ Type: o Concrete o Block o Steel o -HPS High Polish Integral Seat -HS-OFLC Hinged Seat, Open Front Less Cover...
- Page 13 Fail-Safe D ES C RIPTION Type Catalog # Designed with asthetics as a high priority, the tasteful FVS4 combines style with strength. Ideally suited for high abuse areas, Fail-Safe's FVS4 is offered as ceiling- or wall-mounted, to provide general ambient Project illumination.
- Page 14 FVS4 LED O RDER ING INF OR MA TION S A M P L E N U M B E R S : F V S 4 W M - 8 - L D 4 - 2 S T D - 3 5 - U N V - O P L - E D C 1 - E L 7 W F V S 4 P - 4 - L D 4 - 2 S T D - 3 0 - 1 2 0 - P 1 8 7 - E D C 1 - O S 1 - W L P r o d u c t N o .
- Page 15 FVS4 LED N OMINAL INPUT W AT TS LENS LENS LENS Nominal P125 P187 # Modules in Illumination Color LENGTH Input Nominal Nominal Nominal Cross-Section Level Temp Watts Delivered Delivered Delivered Lumens Lumens Lumens 1266 1230 1290 1254 12.3 1316 1279 1434 1394...
