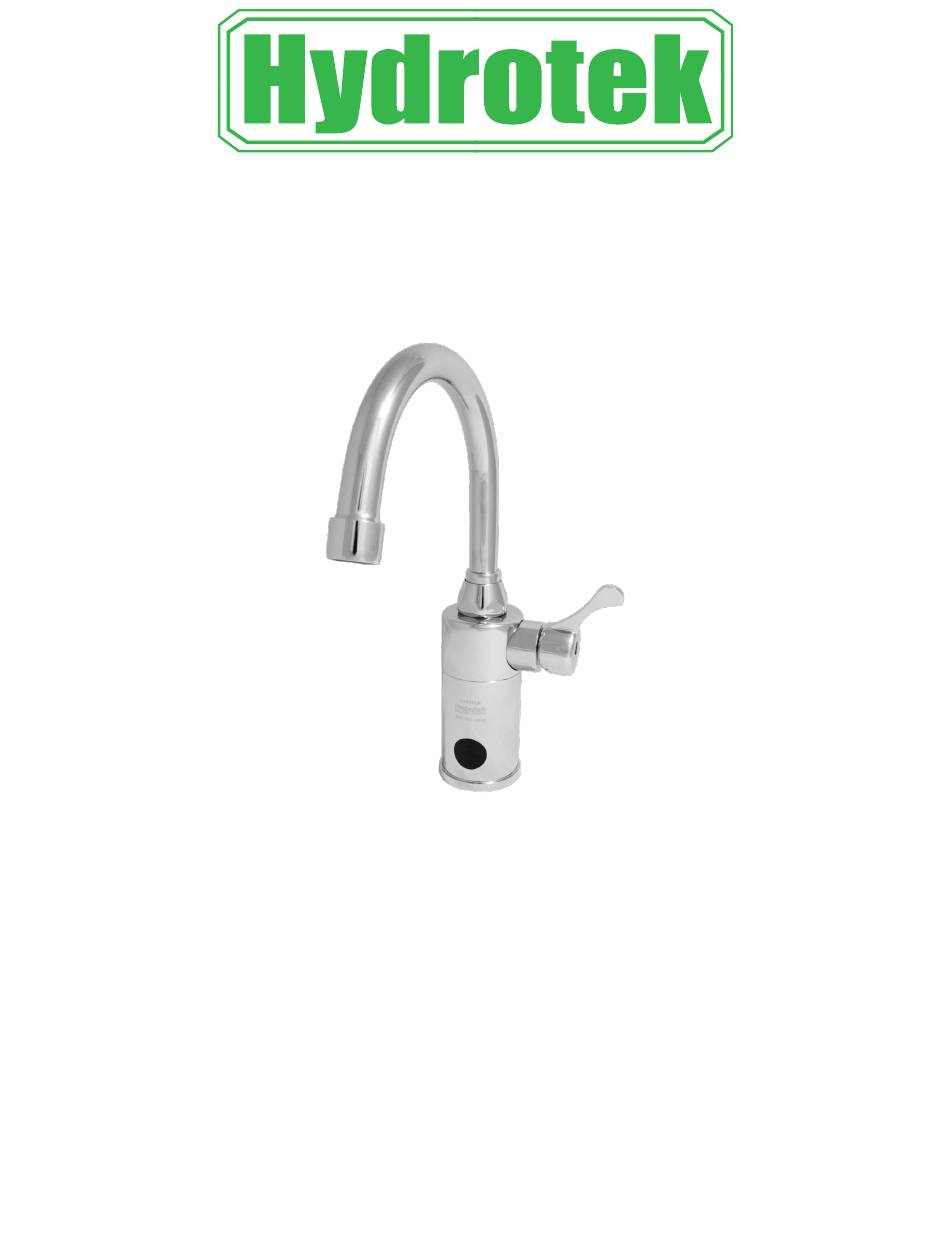

- Page 1 Sensor Faucets and Flush Valves OPERATION & MAINTENANCE MANUAL 4100-LR Series Faucet www.hydrotekintl.com 5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807 Phone (800) 922-9883 | Fax (866) 670-5580...
- Page 2 AC or Batt ery Powered Sensor Operated Faucet Sensor Faucets and Flush Valves The 4100-LR Series faucet is a single-hole deck mounted, piston operated sensory faucet that provides a vandal resistant, Lead Free, no touch soluti on with integral hot/ cold ceramic mixing and manual on/off adjustment that promotes bett er hygiene and energy savings.
- Page 3 Hydrotek Automati c Faucets 4100-LR Series Deck Mounted / Mixing Meets ANSI/ASME A112.18.1 M-1989 Operati on: 1. A conti nuous, invisible beam is emitt ed from the sensor. 2. The faucet is acti vated by placing hands under the spout within the eff ecti ve range of the beam.
- Page 5 Periodical maintenance is required in order to maintain the faucet performance. 9. DO NOT USE abrasives, acids or cleaning fl uids to clean Hydrotek Sensor faucet . Use only soap and water then wipe with clean cloth or towel.
- Page 6 IMPORTANT: Periodic maintenance is required for smooth and trouble-free operation of this faucet. For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-9883.
- Page 7 4. Unscrew the Retaining Rods and pull them up and out from the faucet base. 5. Remove the Control Module. 6. Install the new Control Module and reassemble the faucet in reverse order. For further questions, please call Hydrotek Technical Support at (800) 922-9883.
- Page 8 4100-LR Series Sensor Operated Mixing Faucet Assembly Parts No Description Part Number Gooseneck Spout H41-001 Ceramic Cartridge H41-002 Power Adapter (AC Only) HCE-008 Pressure Valve Assembly H41-004 Sensor/Control Module Assembly H41-005 Please visit our website, www.hydrotekintl.com, for our most current Products Pricing Sheet.
