silen CHATBOX DUO Assembly Manual page 11

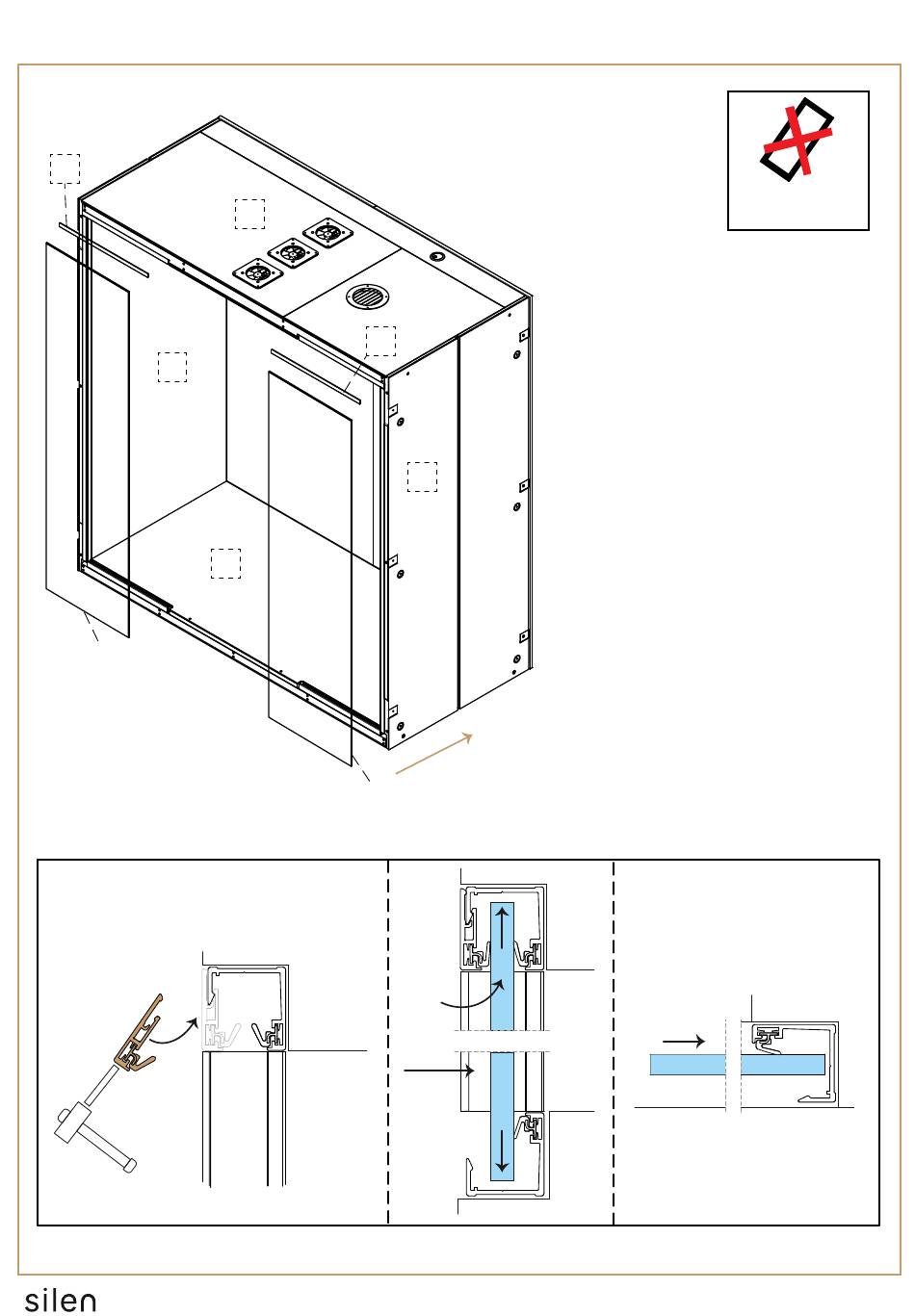

7. Front Glass Panel Assembly
K
B
G
Step 1.
K
C
K
A
G
Step 2.
C
B
Step 1. Click in profiles (K) to the ceiling
module using a rubber mallet and plas�c
block to secure it.
Step 2.
- Li� the glass panel (G) into the top
aluminum profile using suc�on cups,
B
- Push the bo�om of the glass panel (G)
towards the back of the cabin,
- Carefully lower the glass panel (G) un�l it
stands on spacers pre-installed in the
bo�om aluminum profile,
- Repeat with second glass panel on the
opposite side.
Step 3.
un�l they reach the bo�om of the aluminum
profile on the side modules (B).
C
1.
G
2.
3.
A
10
Don't support on
corner
Shi� the glass panels (G) right/le�
Step 3.
G
B
