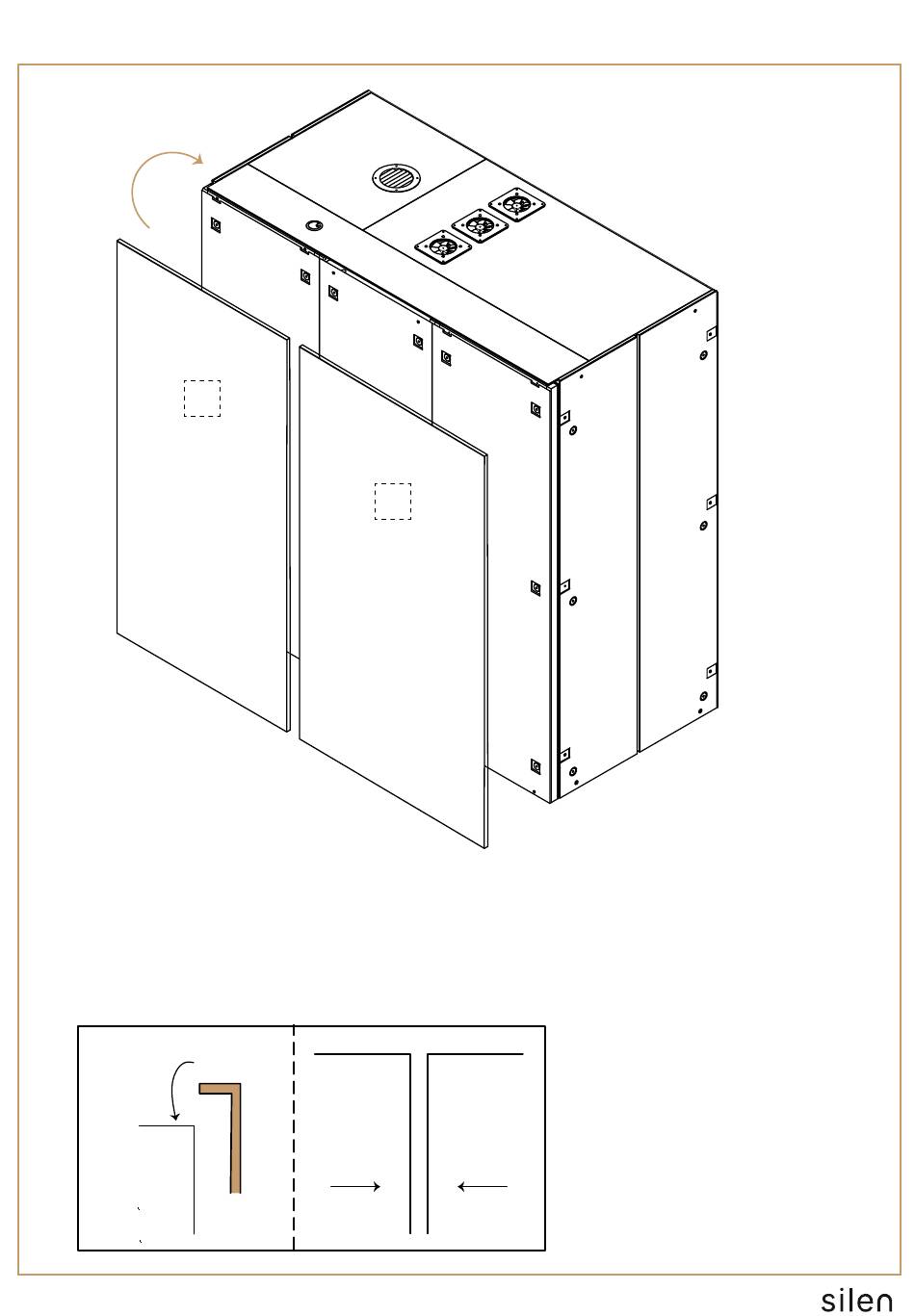

6. Rear Wall Covering Plate Assembly
Step 1. A�ach the Covering plates (F) by placing them first on top of the Chatbox
and then slowly let the magnets pull the side panel to it's place.
Step 2. Push the Covering plates (F) together un�l there is no gap in between.
Step 1.
D1
D2
D3
F
Step 2.
F
F
F
F
9
