Control Panel/Start–Up/Testing
ECOGEN HSB MENU MAP
Running Manual
Running-Utility Lost
Running-Remote Start
Running-2 Wire Start
Switched Off
Stopped - Auto
Stopped - Alarm
- 1 thru 50 +
- 1 thru 50 +
Warning Message(s)
"Low Battery"
"FIRMWARE ERROR-9"
"Fuel Pressure"
"Battery Problem"
"Charger Warning"
"Charger Missing AC"
"Overload Warning"
"Overload Cooldown"
"SEEPROM ABUSE"
"USB Warning"
"Download Failure"
Alarm Message(s)
"High Engine Temp."
"Low Oil Pressure"
"Overcrank"
"Overspeed"
"RPM Sense Loss"
"Underspeed"
"Internal Fault"
"FIRMWARE ERROR-7"
"WIRING ERROR"
"Over Voltage"
"Under Voltage"
"Overload Remove Load"
"Low Volts Remove Load"
"Stepper Over Current"
"Fuse Problem"
32
Battery Condition
"Good" "Inspect Battery" or "Check Battery"
ENTER
- Run Log +
ESC
- Alarm Log +
ENTER
Language
ENTER
ESC
English
Fuel Selection
ENTER
ESC
NG or LP
ENTER
Cold Smart Start?
ESC
YES or NO
Current Date/Time
ESC
2/12/13 12:22
Firmware Update
ESC
Press Enter

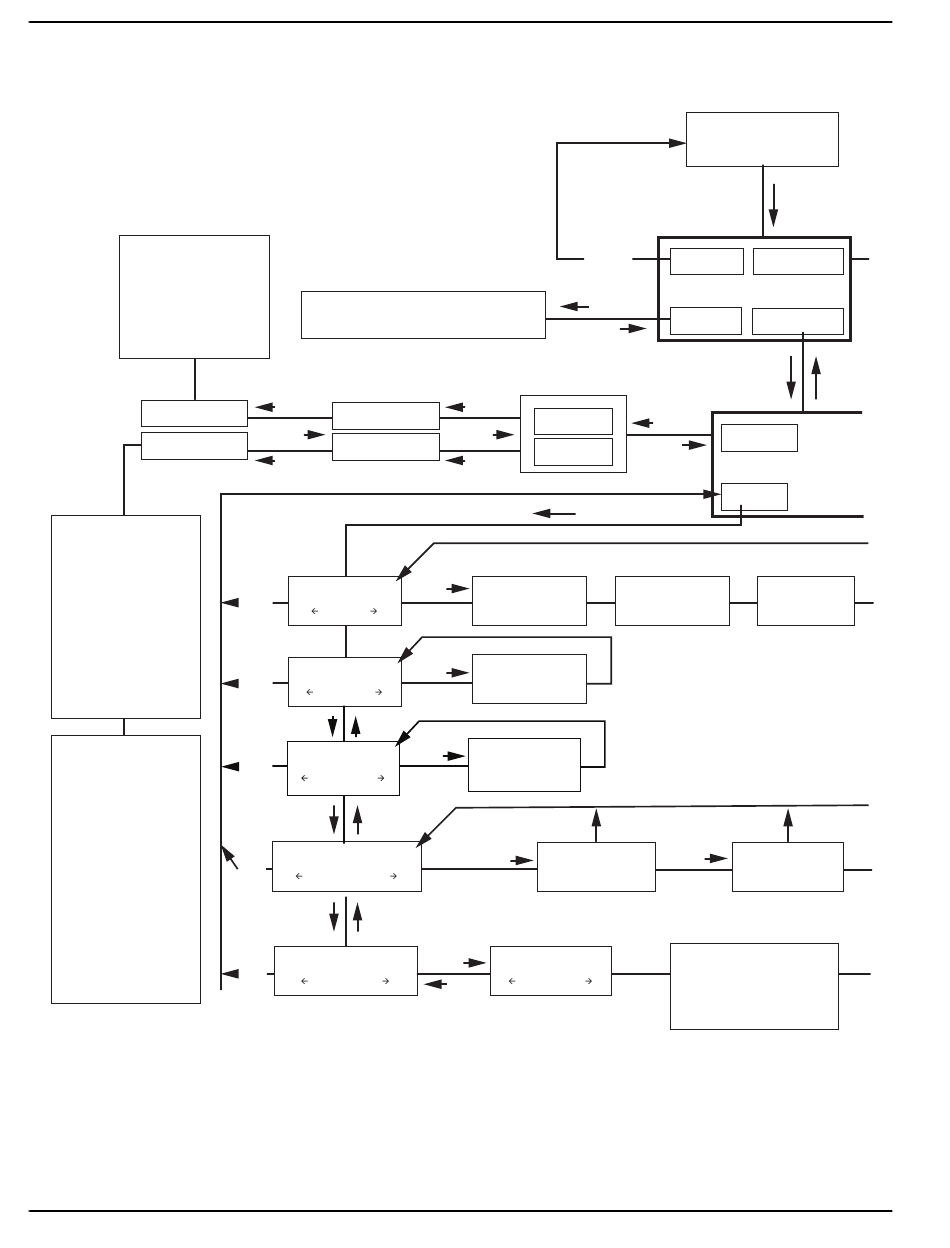

Figure 7-5. Navigation Menu
ENTER
ENTER
ESC
ENTER
"Run Log"
ESC
"Alarm Log"
ENTER
ENTER
Language
+
+ English -
-
Fuel Selection
+ NG or LP -
Cold Smart Start?
- YES or NO +
ESC
Select Hour (0-23)
ENTER
- 14 +
Firmware Update
ENTER
Insert USB
ESC
Installation Guidelines for 60 Hz EcoGen™ Generator
Switched to "OFF"
Hours of Protection
0 (H)
ESC
SYSTEM
DATE/TIME
BATTERY
SUB MENUS
ENTER
ENTER
HISTORY
ESC
EDIT
Language
Language
+
+ Espanol -
+ Francais -
-
ESC
ESC
Select Min (0-59)
ENTER
- 0 +
Possible Message(s)
Corrupted File
Invalid File
File Not Found
Unsupported Device
ESC
ESC
