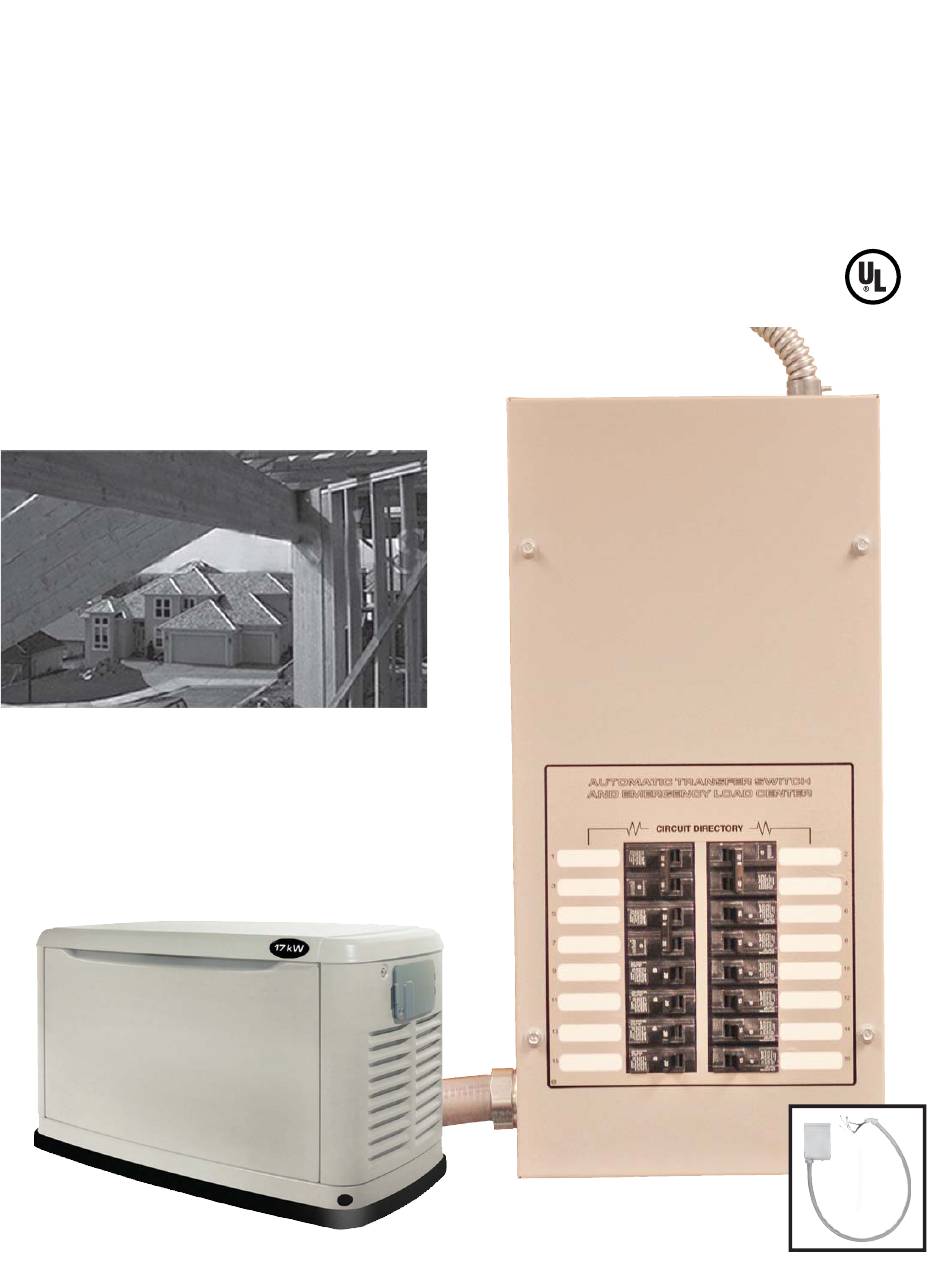

INSTALLATION GUIDE
For 100 Amp Automatic Transfer Switch/Load Center Models:
10, 12, 14 and 16 Circuit.
Installed with 8, 10, 12, 13, 14, 16 and 17kW Generators.
This Automatic Transfer Switch with built-in
Load Center includes an Express Install Kit.
• Saves on installation time and cost, in many
cases up to 50% compared to traditional
transfer switch installations.
• Automatically supplies electricity to
selected critical circuits.
• Can be installed prior to, or along with
generator installation.
This manual should remain with the unit.
C
US
LISTED

Advertisement

loading
Need help?

Need help?

Do you have a question about the G0058821 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Generac Power Systems G0058821

  • Page 1 INSTALLATION GUIDE For 100 Amp Automatic Transfer Switch/Load Center Models: 10, 12, 14 and 16 Circuit. Installed with 8, 10, 12, 13, 14, 16 and 17kW Generators. This Automatic Transfer Switch with built-in Load Center includes an Express Install Kit. LISTED •...
  • Page 2 Table of Contents INSTALLATION GUIDE INSTALLATION DRAWINGS/WIRING DIAGRAMS .....................8 GUÍA DE INSTALACIÓN ............................15 GUIDE D'INSTALLATION ............................25...
  • Page 3: Electrical Hazards

    Residential Transfer Switch Installation Guide PLEASE NOTE: This installation guide should be used in conjunction with the “Installation and Owner’s Manual” that is fur- nished with the Air-cooled Standby Generator. Please review both manuals prior to installation of the generator and transfer switch. This Automatic Transfer Switch/Load Center is not intended for use with the Liquid-cooled Generator product line.
  • Page 4 Residential Transfer Switch Installation Guide 100 Amp Automatic Transfer Designed with installation cost savings in mind! Switch/Load Center with Express Install Kit KIT INCLUDES: THE OUTDOOR CONNECTION BOX WITH FIVE FOOT PRE-WIRED LIQUID TIGHT CONDUIT Mounted outside the home or business nearest the planned generator location.
  • Page 5 Residential Transfer Switch Installation Guide Site Preparation and Standby Generator Placement Crushed Stone or Pea Gravel 1. PLAN THE LOCATION OF THE GENERATOR. Drill Hole Through House NOTE: Do not place the generator directly under a window, eves, deck or other structure. Select an area outside of the home or business nearest the incoming gas service.
  • Page 6 Residential Transfer Switch Installation Guide From inside the building, feed the end of the 30-foot conduit (INCLUDED and pre-wired from transfer switch) The outdoor connection box must be locked to  through the wall to the outside. ensure safety and to discourage tampering. Feed Conduit and Wires 11.
  • Page 7 Residential Transfer Switch Installation Guide NOTE: Models Balance must be maintained when moving circuit loca- Circuit Circuit Circuit Circuit tions from main electrical distribution panel to emergency Circuits 50A, 240V load center. Circuit breaker positions alternate buss bars vertically. Circuits sharing a neutral wire should either be 40A, 240V moved together to adjacent positions in emergency load 30A, 240V...
  • Page 8 Residential Transfer Switch Installation Guide THE AUTOMATIC TRANSFER SWITCH/LOAD CENTER IS NOW INSTALLED! 14. Open the outdoor connection box and unplug the 4-pin 18. Place the generator and mounting pad in the location and 2-pin connector. Remove the black, white, red, prepared in steps one through five.
  • Page 9 Residential Transfer Switch Installation Guide FUEL HOOKUP AND CHECK FOR LEAKS 21b. If a leak is located, shut off fuel and disconnect flex- ible piping. Dry the threaded ends and reapply an 21a. Make the connection between the rigid fuel piping adequate amount of pipe sealant.
  • Page 10 Installation Drawing 0H6393-A...
  • Page 11 Installation Drawing 0H6393-A...
  • Page 12 Installation Drawing 0H6392-C 10 10...
  • Page 13 Electrical Schematic Drawing 0H6386-B...
  • Page 14 Wiring Diagram Drawing 0H6385-A...
  • Page 15 Wiring Diagram Drawing 0H6385-A...
  • Page 16 Part No. 0H6391 Revision F (09/26/12) Catalog No. KGATX0316100-1SI Printed in U.S.A.
  • Page 17: Guía De Instalación

    GUÍA DE INSTALACIÓN Para modelos de centro de carga/interruptor de transferencia automática de 100 amp: de 10, 12, 14 y 16 circuitos. Instalado con generadores de 8, 10, 12, 13, 14, 16 y 17kW. Este interruptor de transferencia automática con cen- tro de carga incorporado incluye un kit de instalación rápida.
  • Page 19: Peligros Eléctricos

    Guía de instalación del interruptor de transferencia residencial POR FAVOR NOTAR: Esta guía de instalación deberá usarse junto con el “Manual del propietario e instalación” que se proporciona con el generador de respaldo enfriado por aire. Por favor revise ambos manuales antes de la instalación del generador e inter- ruptor de transferencia.
  • Page 20: Herramientas Requeridas

    Guía de instalación del interruptor de transferencia residencial Interruptor de transferencia ¡Diseñado con el ahorro del costo de instalación en mente! automática/centro de carga de 100 amperios con kit de insta- lación rápida EL KIT INCLUYE: LA CAJA DE CONEXIONES DE EXTERIORES CON CONDUCTO ESTRECHO DE LÍQUIDO PRE CABLEADO DE CINCO PIES Montado fuera del domicilio o empresa más cercana a la ubi- cación del generador.
  • Page 21 Guía de instalación del interruptor de transferencia residencial Preparación del sitio y ubicación del generador de respaldo Piedra chancada o gravilla 1. PLANIFICAR LA UBICACIÓN DEL GENERADOR. Taladrar agujero a través de la casa NOTA: No coloque el generador directamente debajo de una ventana, vísperas, cubierta u otra estructura.
  • Page 22 Guía de instalación del interruptor de transferencia residencial 8. Desde dentro del edificio, alimente el final del conducto de 30 ADVERTENCIA pies (INCLUÍDO y pre-cableado desde el interruptor de transfer- La caja exterior de conexión debe estar cerrada  encia) a través de la pared al exterior. para asegurar la seguridad y para desalentar la manipulación.
  • Page 23 Guía de instalación del interruptor de transferencia residencial NOTA: 10 cir- 12 cir- 14 cir- 16 cir- Modelos Se debe mantener el balance cuando se mueve las ubicaciones cuitos cuitos cuitos cuitos de circuitos desde el panel de distribución eléctrica al centro Circuitos 50A, 240V de carga de emergencia.
  • Page 24 Guía de instalación del interruptor de transferencia residencial ¡EL INTERR. DE TRANSFERENCIA AUTOMÁTICA/CENTRO DE CARGA ESTÁ AHORA INSTALADO! Abra la caja de conexiones de exteriores y desconecte el Coloque el generador y almohadilla de montaje en la ubi- conector de 4 pines y de 2 pines. Retire los cables negro, cación preparada en los pasos uno al cinco.
  • Page 25 Guía de instalación del interruptor de transferencia residencial CONEXIÓN DE COMBUSTIBLE Y REVISIÓN 21b. Si se percibe una fuga, cierre el combustible y desconecte la tubería flexible. Seque los extremos roscados y vuelva a apli- DE FUGAS car una cantidad adecuada de sellador de tubería. Reconecte la línea de combustible flexible, abra el suministro de com- 21a.
  • Page 26 Parte No. 0H6391 Revisión F (26/09/12) Catálogo No. KGATX0316100-1SI Impreso en los EE.UU.
  • Page 27: Guide D'installation

    GUIDE D'INSTALLATION Pour les modèles de commutateur de transfert automatique de 100 A / centre de distribution : Circuit 10, 12, 14 et 16. Installé avec les générateurs de 8, 10, 12, 13, 14, 16 et 17 kW. Ce commutateur de transfert automatique avec centre de distribution intégré...
  • Page 28 26 26 26...
  • Page 29: Dangers Électriques

    Guide d'installation du commutateur de transfert résidentiel REMARQUE : Ce guide d'installation doit être utilisé en conjonction avec le « Manuel d'installation et d'entretien » fourni avec le générateur de secours refroidi à l'air. Bien vouloir consulter les deux manuels avant l'installation du générateur et du commutateur de transfert.
  • Page 30: Outils Requis

    Guide d'installation du commutateur de transfert résidentiel Commutateur de transfert Conçu pour réduire les coûts d'installation ! automatique / centre de distribution de 100 A avec Kit d'installation rapide LE KIT INCLUT : LA BOÎTE DE CONNEXION EXTÉRIEURE AVEC UN CONDUIT DE LIQUIDE ÉTANCHE PRÉ-CÂBLÉ...
  • Page 31 Guide d'installation du commutateur de transfert résidentiel Préparation du site et installation du générateur de secours Gravillons ou cailloux concassés 1. DÉTERMINER L'EMPLACEMENT DU GÉNÉRATEUR. Percer un trou à travers le mur de la maison REMARQUE : Ne placez pas le producteur directement sous une fenêtre, veilles, pont ou autre structure.
  • Page 32 Guide d'installation du commutateur de transfert résidentiel De l'intérieur du bâtiment, passer l'extrémité du conduit de AVERTISSEMENT 30 pieds (INCLUS et pré-câblé à partir du commutateur de Le boîtier de raccordement extérieur doit être verrouillé  transfert) à travers le mur vers l'extérieur. pour assurer la sécurité...
  • Page 33 Guide d'installation du commutateur de transfert résidentiel REMARQUE : Modèles L'équilibre doit être maintenu lors du déplacement des sites du Circuit Circuit Circuit Circuit circuit du panneau de distribution électrique principal au centre Circuits 50 A, 240 V de distribution de secours. Le disjoncteur positionne les barres omnibus alternatives à...
  • Page 34 Guide d'installation du commutateur de transfert résidentiel L'INSTALLATION DU COMMUTATEUR DE TRANSFERT AUTOMATIQUE / CENTRE DE DISTRIBUTION EST TERMINÉE ! Ouvrir la boîte de connexion extérieure et débrancher le Placer le générateur et plaque de montage à l'emplacement connecteur de 4 et 2 broches. Retirer les fils noir, blanc, rouge préparé...
  • Page 35 Guide d'installation du commutateur de transfert résidentiel BRANCHEMENT DE CARBURANT ET 21b. Lorsqu'une fuite est détectée, couper et débrancher la tuyauterie flexible de carburant. Sécher les extrémités VÉRIFICATION DES FUITES filetées et réappliquer une quantité adéquate de mastic. Rebrancher la ligne flexible de carburant, ouvrir l'alimentation 21a.
  • Page 36 Référence 0H6391 Révision F (26/09/12) Catalogue n° KGATX0316100-1SI Imprimé aux États-Unis...
