4.5 Setup Mode in Detail

Press SETUP to enter the Setup Mode, selected items will appear highlighted (reverse video). Use

the up and down arrow keys to move through the available parameters and use the Shift key to

open a parameter for editing. Once a parameter is opened for editing, the up and down arrow keys

are used again to change a parameter's setting. The SHIFT key is then used to return to Setup

Mode editing where the arrow keys are used again for scrolling. Use the EXIT key to leave the

Setup Mode.

4.5.1 Folder name: Set a Folder Name on the SD Memory Card

1. Scroll to the FOLDER NAME field using the up and down arrow keys if necessary

2. The Folder Name range is "WTA01" to "WTA10"

3. Press Shift to open the Folder Name parameter for editing

4. Use the arrow keys ▲ ▼ to select a folder number; the available numbers are "01 to 10"

(Note: Press and hold ▲ or ▼ continuously for at least two seconds to scroll quickly).

5. Press SHIFT when done

www.calcert.com

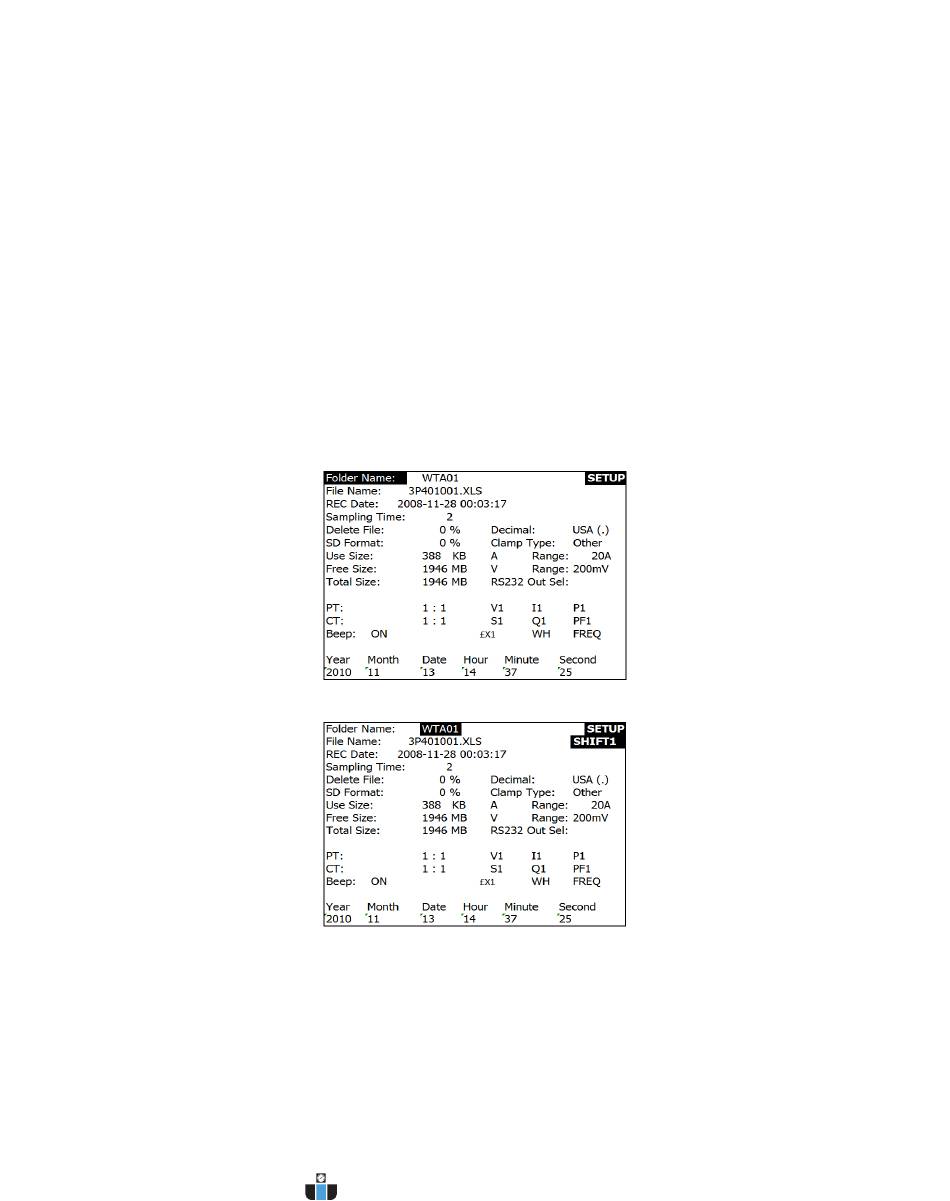

Folder Name Screen 1

Folder Name Screen 2
