4.4.2 The Setup Mode Parameter Menu

Folder Name: Select a file name on the SD CARD; the range is WTA01 to WTA10

File Name: Set a file name on the SD CARD (50 filenames are permitted)

REC Date: Show a file's date-time stamp (Year / Month / Date / Hour / Min / Sec)

Sampling Time: Set the datalogger sampling rate from 2 to 7200 seconds

Delete File: Delete an existing data file from the SD CARD

SD Format: Format the SD CARD

PT: Set Potential Transformer ratio (1 to 1000); CT: Set Current Transformer ratio (1 to 600)

Audible Tone: Set the beeper ON or OFF

Clamp Type: Select the clamp type from the menu list

A (Amps): Set the Current range; V (Volts): Set the Voltage range

RS232 Out Select: RS232 output function (up to nine items can be output)

Year, Month, Date, Hour, Minute, Second: Set the current date and time
www.calcert.com
10 15 20
5 25
0 30

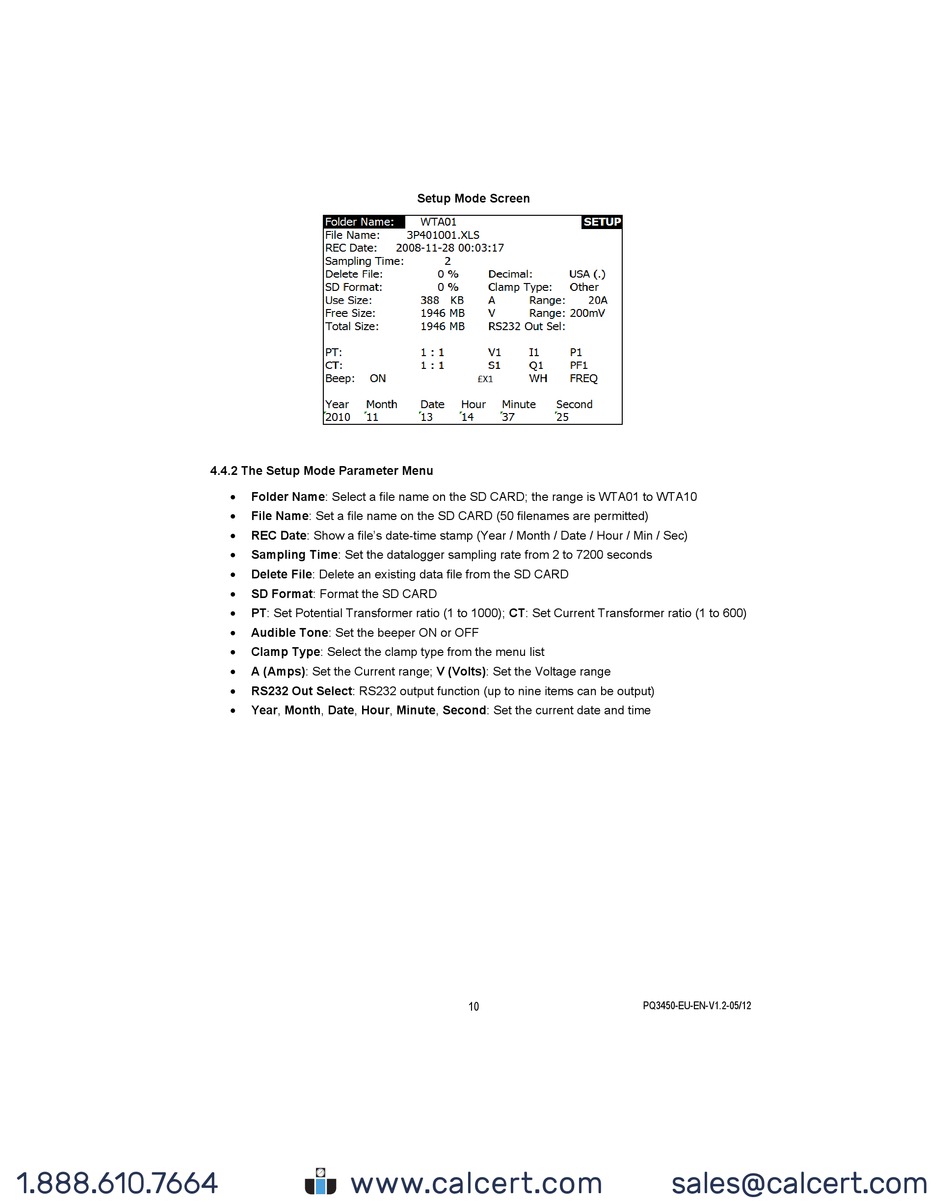

Setup Mode Screen
