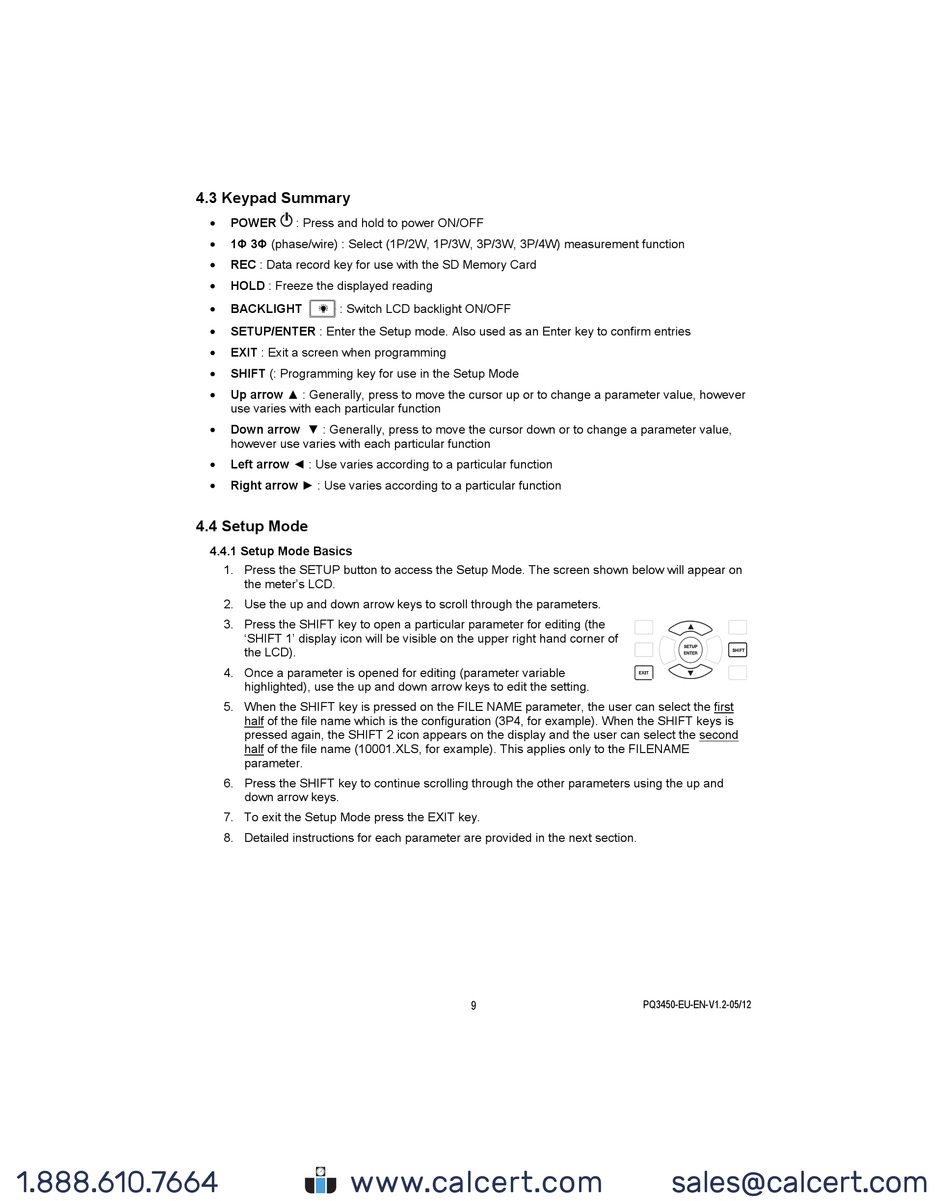

4.3 Keypad Summary


POWER : Press and hold to power ON/OFF

1Φ 3Φ (phase/wire) : Select (1P/2W, 1P/3W, 3P/3W, 3P/4W) measurement function

REC : Data record key for use with the SD Memory Card

HOLD : Freeze the displayed reading

BACKLIGHT : Switch LCD backlight ON/OFF

SETUP/ENTER : Enter the Setup mode. Also used as an Enter key to confirm entries

EXIT : Exit a screen when programming

SHIFT (: Programming key for use in the Setup Mode

Up arrow ▲ : Generally, press to move the cursor up or to change a parameter value, however
use varies with each particular function

Down arrow ▼ : Generally, press to move the cursor down or to change a parameter value,
however use varies with each particular function

Left arrow ◄ : Use varies according to a particular function

Right arrow ► : Use varies according to a particular function
4.4 Setup Mode

4.4.1 Setup Mode Basics

1. Press the SETUP button to access the Setup Mode. The screen shown below will appear on
the meter's LCD.
2. Use the up and down arrow keys to scroll through the parameters.
3. Press the SHIFT key to open a particular parameter for editing (the
'SHIFT 1' display icon will be visible on the upper right hand corner of
the LCD).
4. Once a parameter is opened for editing (parameter variable
highlighted), use the up and down arrow keys to edit the setting.
5. When the SHIFT key is pressed on the FILE NAME parameter, the user can select the first
half of the file name which is the configuration (3P4, for example). When the SHIFT keys is
pressed again, the SHIFT 2 icon appears on the display and the user can select the second
half of the file name (10001.XLS, for example). This applies only to the FILENAME
parameter.
6. Press the SHIFT key to continue scrolling through the other parameters using the up and
down arrow keys.
7. To exit the Setup Mode press the EXIT key.
8. Detailed instructions for each parameter are provided in the next section.
