Intel NUC Kit NUC5i7RYH User Guide
This guide tells you how to:
Install and remove memory
•
Install an M.2 SSD
•
Install a 2.5" drive
•
Install a VESA mount bracket
•
Install an operating system
•
Install the latest drivers
•

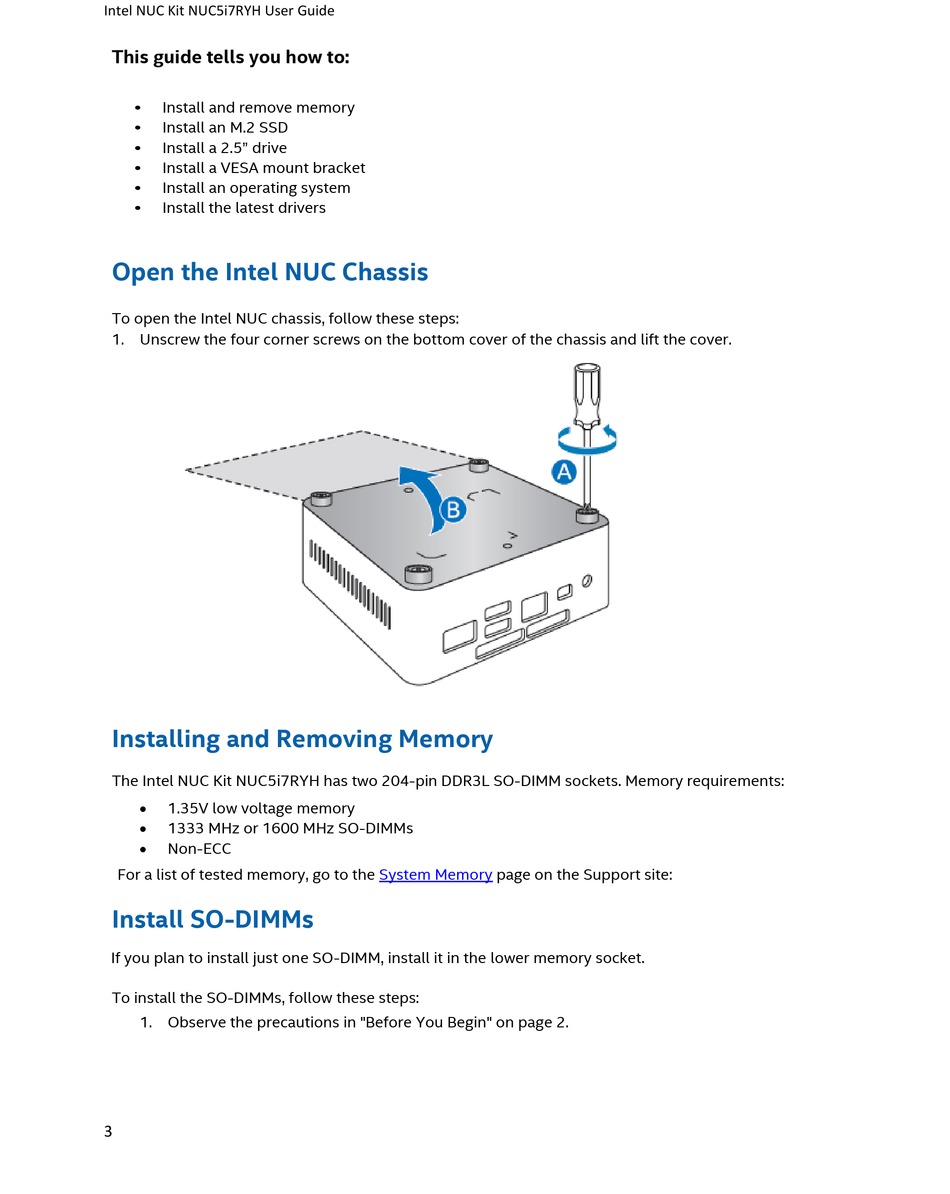

Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Installing and Removing Memory

The Intel NUC Kit NUC5i7RYH has two 204-pin DDR3L SO-DIMM sockets. Memory requirements:
 1.35V low voltage memory
 1333 MHz or 1600 MHz SO-DIMMs
 Non-ECC
For a list of tested memory, go to the
Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.
3
System Memory page on the Support site:
