C.A. Technologies H2O-CPR Product Information

The H2O-CPR gun comes equipped with both a pressure reduced air cap 23-2101 and a HVLP air
cap 23-1301 for areas requiring HVLP compliance.
23-2101 - consumes 11 cfm at 29 psi gun inlet.
23-1301 - consumes 13.5 cfm at 29 psi gun inlet.
23-2101 pressure reduced air caps can be used with the 0.8 mm - 1.7 mm fluid orifices listed below.
23-1301 HVLP air caps can be used with the full range of fluid orifices listed below.
HVLP/PRESSURE REDUCED AIR CAP AND FLUID NOZZLE CHART
MODEL FLUID TIP
AIR CAPS
NO. RANGE
23-2101
CPR
0.8 - 1.7
(Pressure
Reduced)
H2O-CPR
23-1301
0.8 - 2.2
(HVLP)
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Note: Air cap test gages are available to confirm HVLP compliance.
*Gun inlet pressures may vary as required by application
Coating Atomization Technologies 337 South Arthur Avenue, Louisville CO 80027 Phone: 888.820.4498, Fax: 303.438.5708
*MAX GUN
FAN
INLET PRESS.
CONTROL
FOR HVLP
29*
60-1504 (S)
29*
www.spraycat.com

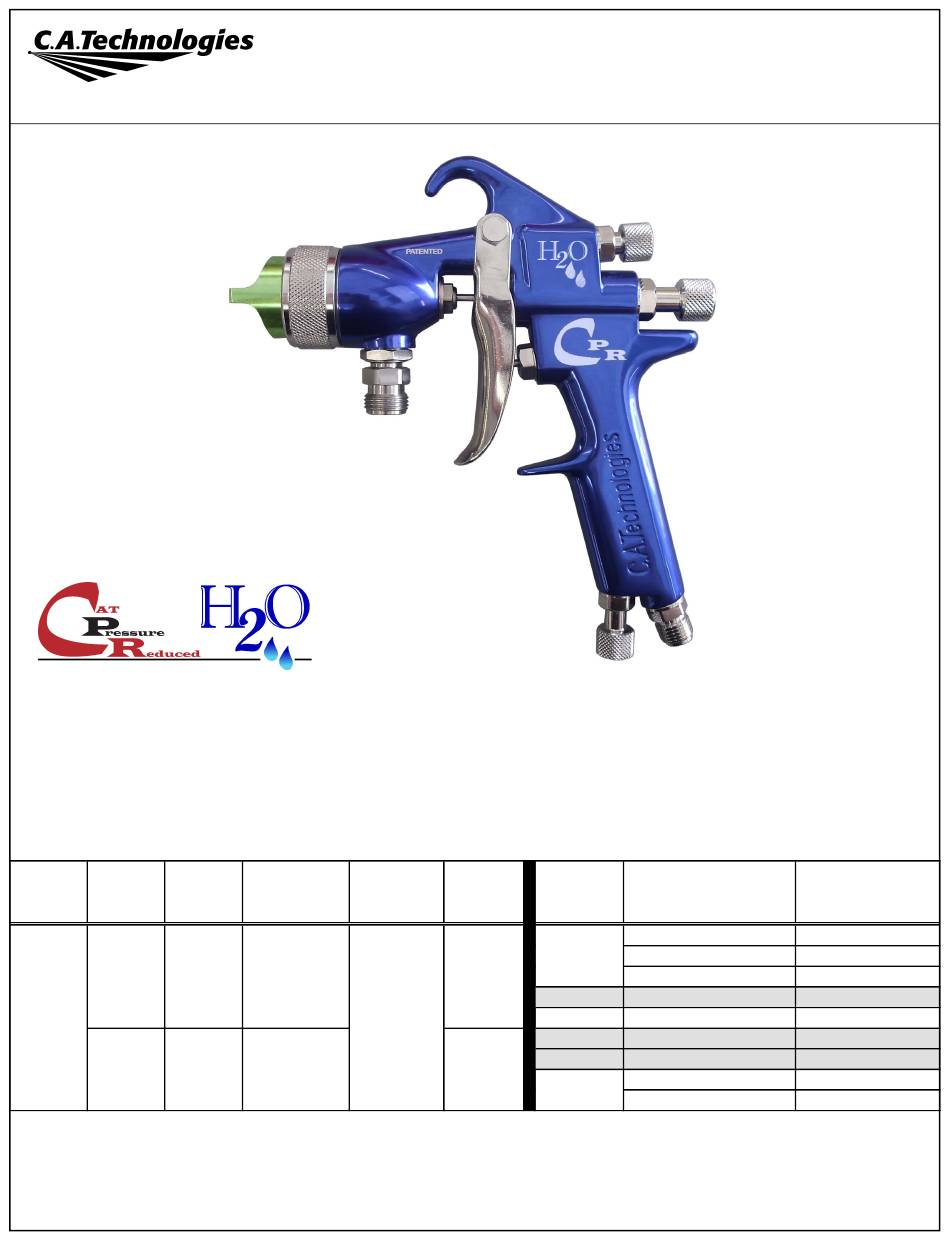

H2O-CPR
PRESSURE FEED SPRAY GUN
SCFM @ STANDARD
MAX GUN IN CAT
INLET PACK
11
Included
Included
Included
13.5
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS marking on needle
33-0208 0.8mm (.022")
33-0210 1.0mm (.040")
33-0212 1.2mm (.046")
33-0213 1.3mm (.052")
33-0214 1.4mm (.055")
33-0215 1.5mm (.059")
33-0217 1.7mm (.070")
33-0219 1.9mm (.075")
33-0222 2.2mm (.086")
NEEDLES /
40-1308 (308)
40-1310 (310)
40-1312 (312)
40-1313 (313)
40-1314 (314)
40-1315 (315)
40-1317 (317)
40-1319 (319)
40-1322 (322)
