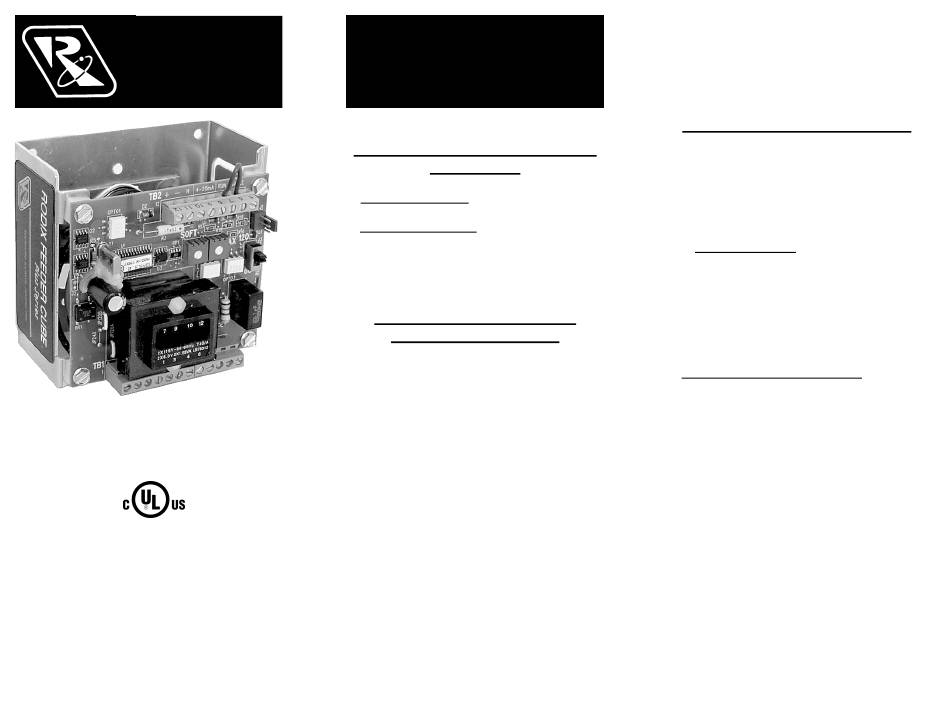

Rodix FC-40 Plus Series Quick Start Manual

RODIX INC.
FEEDER CUBE
FC-40 Plus Series Plus Series Plus Series Plus Series
OPEN FRAME
MODEL FC-44-PLC Plus Plus
Plus Plus
P/N 121-686
SUB PANEL MOUNT
Listed, File No.
E183233
Input: 120 VAC
50/60 HZ.
Output: 0-120 VAC
Single Unit Fuse Size: 15 AMPS
80% Duty Cycle at Rated AMPS
© 2000 RODIX
RODIX RODIX RODIX . . . .
INC INC INC INC
ADJUSTMENTS AND
SET UP
Mount Open Frame controls within an enclosure.
1. SELECTING 60 OR 120 PULSE
OPERATION
A. For 60 pulse output - Set switch (S1) to 60 on
"master control" P.C. card (No. 24-488).
B. For 120 pulse output - Set switch (S1) to 120
on "master control" P.C. card.
Note: Readjust MAX pot after changing pulse
switch setting.
2. LIMITING THE MAXIMUM
OUTPUT OF CONTROL
Adjust the MAX Output trimpot so that the output
to the feeder reaches its desired maximum level
when the MAIN CONTROL DIAL is turned fully
clockwise. The MAX Output trimpot should be
adjusted to keep the vibratory feeder from
hammering when the control is turned up to full
power.
NOTE: Output to feeder must be connected
and the control set for proper output frequency
(60 or 120 pulse) setting. The Run Jumper
must be connected as shown on the wiring
diagram.
A. Power input should be OFF or disconnected.
B. Rotate MAIN CONTROL DIAL on front cover
to 0 or its minimum setting.
C. Open cover to allow access to printed circuit
card.
D. Using CAUTION, turn power ON (no output
should be present).
E. Rotate the MAIN CONTROL DIAL on front
cover slowly to its highest setting.
F. Adjust the MAX Output trimpot so that the
output to the feeder reaches its desired
maximum level when the MAIN CONTROL
DIAL is turned fully clockwise. Turning the
MAX Output trimpot clockwise increases the
maximum output level.
3. REMOTE OFF/ON CONTROL
Note: a Run Jumper has been installed at the
factory as shown on the enclosed wiring diagram.
Remote OFF/ON operation of the FC-40 Plus
Series Series Series Feeder Cube Series
control can be configured
®
to operate in one of the following ways.
A. A low current switch such as a paddle switch
can replace the factory-installed Run jumper
"J1." The "Run Contact" connects to
terminals 6 and 7. The contact must be able
to switch 5VDC and 2mA. The control will
then run only when the contact is closed.
Refer to Section A of the OFF/ON CONTROL
GUIDE.
B. Feeder Bowl/Hopper Interlock allows the
Hopper control to operate only when the Bowl
is running and the paddle switch contact is
closed. The interlock input on terminals 11
and 12 of TB2 is controlled by the interlock
output of a "Parts Sensing Feeder Bowl
Control" such as an FC-90 Plus Plus Plus Plus.
Remove jumper "J1" of this control from TB2
terminals 6 and 7. Connect the Hopper
Paddle switch to alternate terminals 5 and 6 of
TB2. Connect TB2 terminals 11 and 12 of this
control to the "Parts Sensing Control". Refer
to Section B of the OFF/ON CONTROL
GUIDE. Check specific instructions for the
"Parts Sensing Control" wiring.
Note: Only use the Bowl/Hopper Interlock with
a FC-90 and FC-40 Series control. Two FC-
40 Series controls will not interlock to each
other since neither one has an interlock
output.
FC-44-PLC APP 1/21/2000
