RODIX INC.

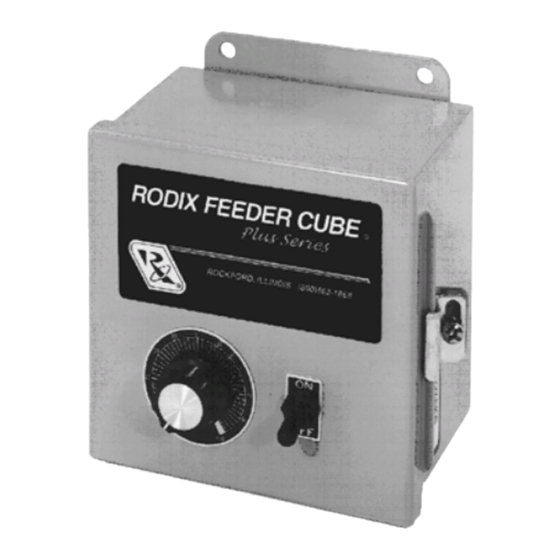

FEEDER CUBE
FC-40 Plus
Plus
Plus Series
Plus
Series
Series
Series
OPEN FRAME
MODEL
FC-44-DC-PLC Plus
Plus
Plus
Plus
P/N 121-000-0705
SUB PANEL MOUNT
Input: 120 VAC
50/60 HZ.
Output: 0-120 VDC
Single Unit Fuse Size: 10 AMPS
© 2000-2011 RODIX
INC
ADJUSTMENTS AND
Mount Open Frame controls within an enclosure.
1. SELECTING 60 OR 120
Always have switch (S1) set to 120 on "master
control" P.C. card.
To avoid failure of the DC motor, the fuse on this
control must be resized to match the fuse size listed
on the motor nameplate. Do not exceed 10 Amps
maximum.
3. TO LIMIT THE MAXIMUM
OUTPUT OF CONTROL
The MAX Output trimpot must be adjusted to
prevent the DC motor from being damaged when
the control is turned up to full power.
voltmeter to monitor the output of the control. Do
not exceed the voltage shown on the nameplate of
the motor.
NOTE: Output to motor must be connected and
the control set for proper output frequency (120
pulse) setting.
connected as shown on the wiring diagram.
A.
Power
disconnected. Monitor the output of the
control with a DC voltmeter.
Rotate MAIN CONTROL DIAL on front
B.
cover to 0 or its minimum setting.
C.
Open cover to allow access to printed
circuit card.
Using CAUTION, turn power ON (no output
D.
should be present).
Rotate the MAIN CONTROL DIAL on front
E.
cover slowly to its highest setting.
.
SET UP
PULSEOPERATION
2. FUSE SIZE
Use a
The Run Jumper must be
OFF
input
should
be
Adjust the MAX Output trimpot so that the
F.
output to the DC motor reaches its
desired maximum level when the MAIN
CONTROL DIAL is turned fully clockwise.
Turning
the
clockwise increases the maximum output
level.
4. REMOTE OFF/ON CONTROL
Note: a Run Jumper has been installed at the
factory as shown on the enclosed wiring diagram.
Remote OFF/ON operation of the FC-40 Plus
Series
Se
ries Feeder Cube
Se
Se
ries
ries
®
to operate in one of the following ways.
A. A low current switch such as a paddle switch
can replace the factory-installed Run jumper
"J1."
The "Run Contact" connects to
terminals 6 and 7. The contact must be able
to switch 5VDC and 2mA. The control will
then run only when the contact is closed.
Refer to Section A of the OFF/ON CONTROL
GUIDE.
B. Feeder Bowl/Hopper Interlock allows the
Hopper control to operate only when the Bowl
is running and the paddle switch contact is
closed. The interlock input on terminals 11
and 12 of TB2 is controlled by the interlock
output of a "Parts Sensing Feeder Bowl
Control" such as an FC-90 Plus
Remove jumper "J1" of this control from
terminals 6 and 7.
Paddle switch to alternate terminals 5 and 6.
or
Connect TB2 terminals 11 and 12 of this
control to the "Parts Sensing Control". Refer
to Section B of the OFF/ON CONTROL
GUIDE. Check specific instructions for the
"Parts Sensing Control" wiring.
Note: Only use the Bowl/Hopper Interlock with
a FC-90 and FC-40 Series control. Two FC-
40 Series controls will not interlock to each
other since neither one has an interlock
output.
MAX
Output
trimpot
Plus
Plus
Plus
control can be configured
Plus.
Plus
Plus
Connect the Hopper
FC-44-DC-PLC Plus 6/2/2011
