QUICK START GUIDE
CRESCENT ICE MAKERS AND ADA15IM

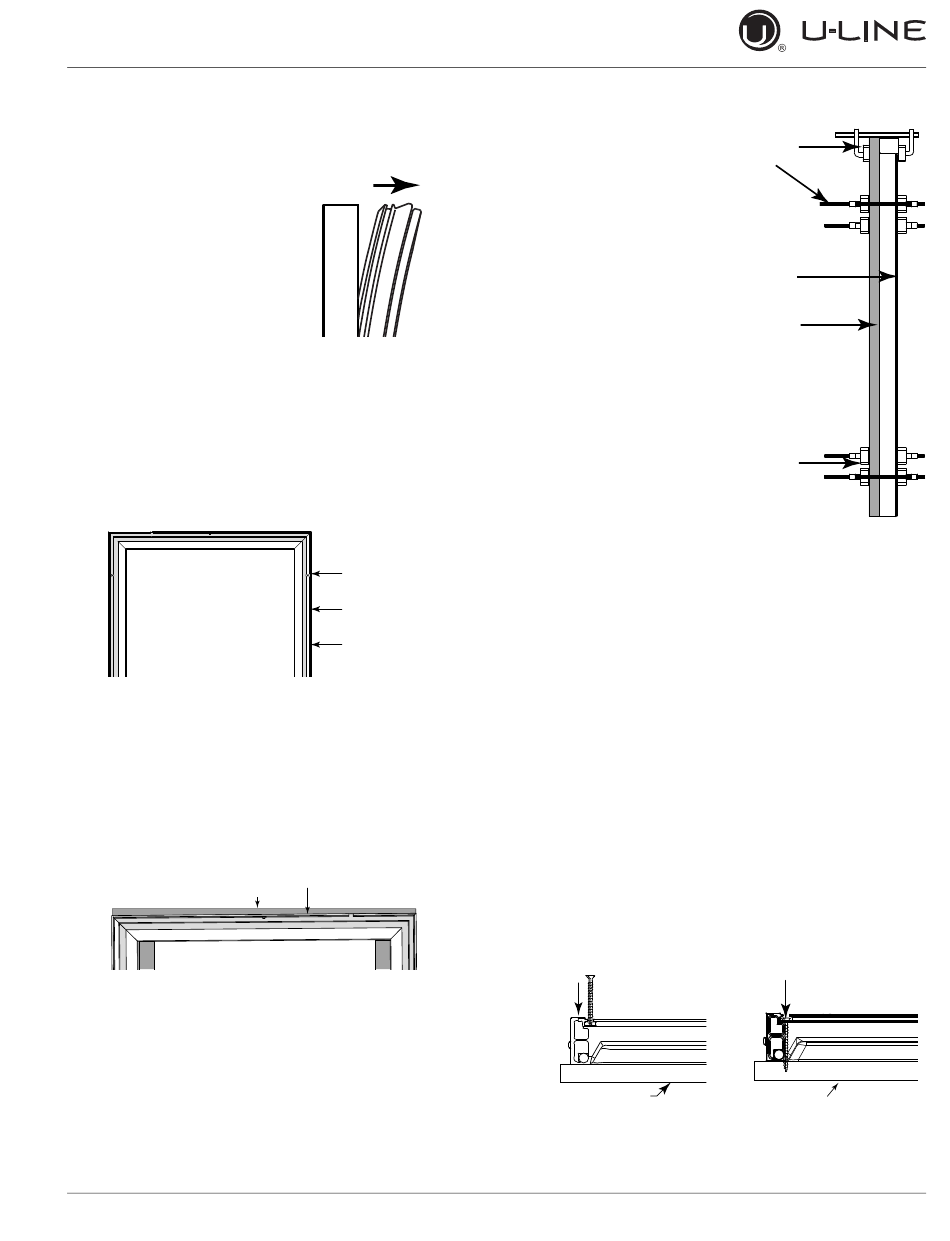

1. Fully open door.
2. Starting at corner, pull
gasket away from door.
3. Continue to pull gasket
free from gasket channel.
4. Upon removal, lay gasket down on a flat surface.
5. The panel should be aligned with the outside edge
(opposite the hinge) and high enough to align with the
highest point in the door.
Align Top Of Panel With Highest Point Of Door
NOTICE
Due to differences in floor construction or
surrounding cabinetry, the panel may not sit
flush with the top of the door.
Panel
Align Panel
Against
Door
Edge First
Door
6. Secure integrated
panel to door using
clamps. A robust
tape may also be
used. U-Line
recommends the use
of bar clamps to
secure the panel to
the door. If using
tape, be certain the
tape will not damage
panel finish upon
removal.
7. Using a 7/64" (3 mm)
drill bit, drill 6 pilot
holes into the wood
panel 1/2" (12 mm)
deep using the holes in the door frame as a guide.
NOTICE
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardwood is installed.
8. Locate 6 of the #6x 1-1/4" (32 mm) screws provided
with your unit.
9. Using a Phillips screwdriver, place one screw into each
of the 6 pilot holes and screw down. Do not overtighten
screws.
10.Be sure the screws force their way past the opening on
the gasket channel and sit flush against the bottom of
the channel.
Integrated Panel
11.Remove clamps from door.
13
u-line.com
Bar
Clamp
Door
Wood
Panel
Bar
Clamp
Integrated Panel
