FLOW COMPUTER FOR CORRECTED LIQUID VOLUME
Signal input flowmeter: pulse, Namur and coil
Signal input temperature: (0)4-20mA
Signal output: 4-20mA ref. corrected flowrate
Options: Intrinsically Safe, Modbus communication
F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries
Advertisement
Table of Contents
Related Manuals for Fluidwell F126-P-EL-TA
Summary of Contents for Fluidwell F126-P-EL-TA

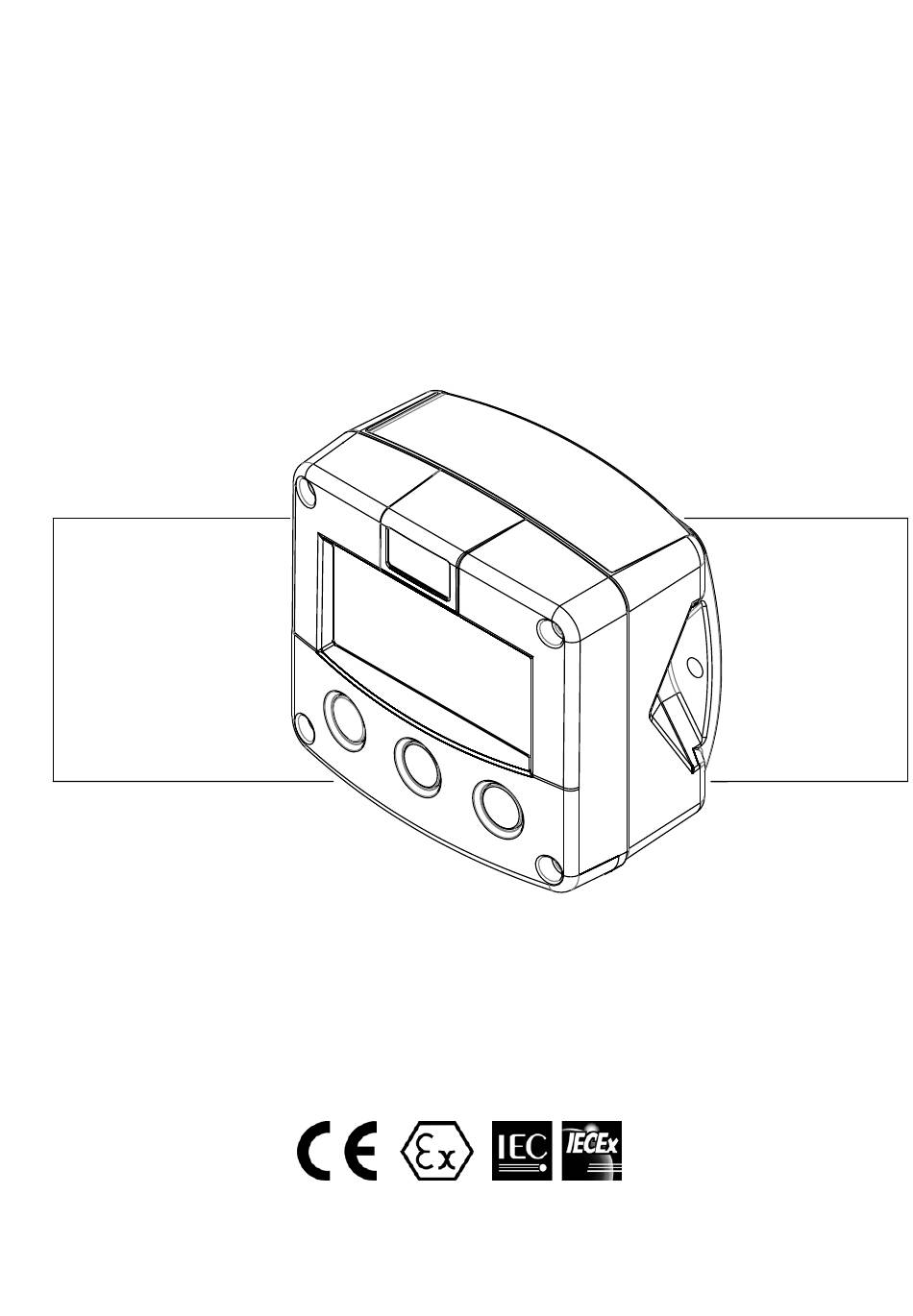

- Page 1 FLOW COMPUTER FOR CORRECTED LIQUID VOLUME Signal input flowmeter: pulse, Namur and coil Signal input temperature: (0)4-20mA Signal output: 4-20mA ref. corrected flowrate Options: Intrinsically Safe, Modbus communication F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries...
-
Page 2: Safety Instructions
Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and consult “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”. DISPOSAL At the end of its life this product should be disposed of according to local regulations regarding waste electronic equipment. -
Page 3: About The Operation Manual
This operation manual describes the standard unit as well as most of the options available. For additional information, please contact your supplier. A hazardous situation may occur if the F126-P-EL-TA is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms: A "warning"... -
Page 4: Table Of Contents
Page 4 CONTENTS MANUAL Safety instructions ............................2 Disposal ..............................2 Safety rules and precautionary measures ....................... 2 About the operation manual ..........................3 Introduction ..........................5 1.1. System description of the F126-P-EL ..................5 Operational ..........................7 2.1. General ..........................7 2.2. -
Page 5: Introduction
SYSTEM DESCRIPTION OF THE F126-P-EL Functions and features The flowcomputer Model F126-P-EL-TA is a microprocessor driven instrument for the calculation of standard volumetric flow or mass flow for liquid applications using flow equations. This product has been designed with a focus on: ... - Page 6 Page 6 Configuration of the unit The F126-P-EL-TA was designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F126-P-EL-TA according to your specific requirements. SETUP includes several important features, such as K-factors, Span, measurement units, signal selection etc.
-
Page 7: Operational
2.1. GENERAL The F126-P-EL-TA may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of this manual. -
Page 8: Operator Information And Functions
2.3. OPERATOR INFORMATION AND FUNCTIONS In general, the F126-P-EL-TA will always function at Operator level. The information displayed is dependant upon the SETUP-settings. All pulses generated by the connected flowmeter are measured by the F126-P-EL-TA in the background, whichever screen refresh rate setting is chosen. -
Page 9: Configuration
Operating Manual before carrying out its instructions. The F126-P-EL-TA may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. - Page 10 Page 10 Matrix structure SETUP-level: SCROLLING THROUGH SETUP-LEVEL Selection of function-group and function: SETUP is divided into several function groups and functions. Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display. The number is a combination of two figures. The first figure indicates the function-group and the second figure the sub-function.
- Page 11 Page 11 To change or select a value: To change a value, use to select the digits and to increase that value. To select a setting, both and can be used. If the new value is invalid, the increase sign or decrease-sign will be displayed while you are programming.
-
Page 12: Overview Functions Setup Level
COMMUNICATION SPEED / BAUDRATE 1200 - 2400 - 4800 - 9600 ADDRESS 1 - 255 MODE rtu - off OTHERS MODEL F126-P-EL-TA (fixed) SOFTWARE VERSION 02.05.xx (fixed) SERIAL NO. xxxxxxx (fixed) PASS CODE 0000 - 9999 TAGNUMBER 0000000 - 9999999... -
Page 13: Explanation Of Setup-Functions
Page 13 3.2.3. EXPLANATION OF SETUP-FUNCTIONS 1 - TOTAL SETUP - 11 determines the measurement unit for total and accumulated MEASUREMENT UNIT total. The following units can be selected: L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit). Alteration of the measurement unit will have consequences for operator and SETUP-level values. -
Page 14: Flowrate
Page 14 2 - FLOWRATE The settings for total and flowrate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flowrate. The display update time for flowrate is one second or more. Note: these settings also influence the analog output. -
Page 15: Power Management
When used with the internal battery option, the user can expect reliable measurement over a long period of time. The F126-P-EL-TA has several smart power management functions to extend the battery life time significantly. Two of these functions can be set:... -
Page 16: Flowmeter
Page 16 4 - FLOWMETER The F126-P-EL-TA is able to handle several types of input signal. The SIGNAL type of flowmeter pickup / signal is selected with function. Note: The selections "active pulse" offer a detection level of 50% of the supply voltage. -
Page 17: Temperature
Page 17 5 - TEMPERATURE Conversion formula’s temperature units: xK = (x-273,15)°C = (9/5x-459,67)°F x°C = (x+273,15)K = 9/5x+32°F x°F = 5/9(x-32)°C = 5/9(x+459,67)K Read also par. 4.4.3. Temperature input terminal 12-14. With this setting, the measurement range of the (0)4-20mA temperature SPAN sensor is determined in Kelvin (K). - Page 18 Page 18 5 - TEMPERATURE (CONTINUED) With this setting it is possible to calibrate the input value for (0)4mA as the CALIBRATE LOW signal from the sensor might not be exact 4.0 mA (or 0.0 mA) at “offset- temperature” - SETUP 53. This function will measure the real output value at “offset-temperature”.
-
Page 19: Formula
Page 19 6 - FORMULA This function describes the supplied equations. EQUATIONS TYPE The supplied Model is the F126-P-EL. “EL” stands for “Equations Liquid” - flowcomputer for corrected liquid volume. The formula used: = Q * (1 + α (T - T)) normal normal... -
Page 20: Analog Output
Page 20 7 - ANALOG OUTPUT A linear analog (0)4-20mA or 0-10V signal is generated according to the flowrate with a 10 bits resolution. The settings for flowrate (SETUP - 2) influence the analog output directly. The relationship between rate and analog output is set with the following functions: The analog output can be disabled. -
Page 21: Communication (Optional)
Page 21 7 - ANALOG OUTPUT (CONTINUED) This function is used to stabilize the analog output signal. FILTER The output value is updated every 0.1 second. With the help of this digital filter a more stable but less precise reading can be obtained. The filter principal is based on three input values: the filter level (01-99), the last analog output value and the last average value. -
Page 22: Installation
Page 22 INSTALLATION 4.1. GENERAL DIRECTIONS Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ... -
Page 23: Dimensions- Enclosure
Page 23 4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") 12mm 12mm 30mm 30mm 24mm 24mm M20 x 1,5 6 x M12 36mm 36mm 30mm 30mm M16 x 1,5 M16 x 1,5 1/2"NPT M20 x 1,5 0.12"... - Page 24 Page 24 GRP enclosures: 75 mm (2.95") 112 mm (4.40") 130 mm (5.12") HK back box: (flat bottom) 75 mm (2.95") 118 mm (4.65”) 25mm 25mm D=20mm D=20mm 12mm 12mm 30mm 30mm 24mm 24mm D=12mm D=16mm D=16mm D=20mm 36mm 36mm 0.12”...
-
Page 25: Installing The Hardware
Page 25 4.4. INSTALLING THE HARDWARE 4.4.1. INTRODUCTION Electro static discharge does inflict irreparable damage to electronics! Before installing or opening the unit, the installer has to discharge himself by touching a well-grounded object. This unit must be installed in accordance with the EMC guidelines (Electro Magnetic Compatibility). -
Page 26: Voltage Selection Sensor Supply
Page 26 4.4.2. VOLTAGE SELECTION SENSOR SUPPLY For Intrinsically Safe applications: read chapter 5. Type PB / PC / PX (AP) - battery powered and output loop-powered applications: Terminal 11 provides a limited supply voltage of 3.2 V DC (coil signals 1.2V) for the signal output of the flowmeter. -
Page 27: Terminal Connectors
TYPE PX TYPE P PD / PF / PM SIGNAL Fig. 9: Overview of terminal connectors standard configuration F126-P-EL-TA and options. REMARKS: TERMINAL CONNECTORS: Terminal GND- 01- 02: Power Supply - only available with type PD / PF or PM: erminal... - Page 28 Page 28 Terminal 07-08; basic POWER SUPPLY - type PX - output loop powered: Connect an external power supply of 8-30VDC to these terminals or a 4-20mA loop. Do connect the "-" to terminal 7 and the "+" to terminal 8. When power is applied to these terminals, the (optional) internal battery will be disabled / enabled automatically to extend the battery life time.
- Page 29 Page 29 Type AF: For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5. Type AI: An isolated 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max.
- Page 30 Page 30 Terminal 09-11; Flowmeter input: Three basic types of flowmeter signals can be connected to the unit: pulse, active pulse or sine- wave (coil). The screen of the signal wire must be connected to the common ground terminal 09 (unless earthed at the sensor itself).
- Page 31 Page 31 Pulse-signal PNP / PNP-LP: The F126-P-EG-TA is suitable for use with flowmeters which have a PNP output signal. 3.2V is offered on terminal 11 which has to be switched by the sensor to terminal 10 (SIGNAL). For a reliable pulse detection, the pulse amplitude has to go above 1.2V.
- Page 32 Page 32 Reed-switch: The F126-P-EG-TA is suitable for use with flowmeters which have a reed-switch. To avoid pulse bounce from the reed-switch, it is advised to select REED LP - low-pass filter (read par. 3.2.3.) NAMUR-signal: The F126-P-EG-TA is suitable for flowmeters with an Namur signal. The standard unit is not able to power the Namur sensor, as an external power supply for the sensor is required.
- Page 33 Page 33 Terminal 26-31: type CB / CH / CI / CT - communication RS232 / RS485 / TTL (option) Full serial communications and computer control in accordance with RS232 (length of cable max. 15 meters) or RS485 (length of cable max. 1200 meters) is possible. ...
-
Page 34: Intrinsically Safe Applications
Please Note Certificates, safety values and declaration of compliance can be found in the document named: “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”. Special conditions for safe use mentioned in both the certificate and the installation instructions must be observed for the connection of power to both input and / or output circuits. -
Page 35: Terminal Connectors Intrinsically Safe Applications
Indicated labels on the back cover (below) and on the inside cover (right) show the type labels for intrinsically safe certified units. For details on usage see the separate “Fluidwell F1..-..-XI Documentation for Intrinsic Safety”. Serial number and year of production This information can be looked-up on the display: See setup function (par. - Page 36 Page 36 Explanation Intrinsically Safe options: Type AF - Intrinsically Safe floating 4-20mA analog output - Terminal 7-8: A floating 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated. Max.
-
Page 37: Configuration Examples
Page 37 CONFIGURATION EXAMPLES Configuration example IIB /IIIC F126-P-AF-CT-EL-(PC)-(PD)-TA-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL I.S. Certified Isolator TTL to: = max. 30 V e.g. PC RS232 = max. 250 mA RS422 = max. 0.85 W +12V For example: Common ground... - Page 38 Page 38 Configuration example IIB/IIIC and IIC - F126-P-AF-(CT)-EL-PD-TA-XI HAZARDOUS AREA SAFE AREA TERMINAL CONNECTORS F100-series Modbus communication type CT: TTL Please note: communciation type CT is allowed in IIC applications. I.S. Certified Isolator TTL to: = max. 30 V e.g.
-
Page 39: Battery Replacement Instructions
Batteries for use in safe areas have no Ex label. DO NOT EXCHANGE: Using the wrong type of battery can pose a SERIOUS RISK. For use in hazardous areas Fluidwell recommends FW-LiBAT batteries (manufactured by Fluidwell bv) only. Battery replacement procedure Depending on the production batch, one of two visualized Intrinsically Safe certified battery types may have been installed in the unit. -
Page 40: Maintenance
Page 40 MAINTENANCE 6.1. GENERAL DIRECTIONS Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ... -
Page 41: Appendix A: Technical Specification
Page 41 APPENDIX A: TECHNICAL SPECIFICATION GENERAL Display Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB Transflective LCD with green LED backlight. - Page 42 Page 42 Sensor excitation Type PB / PC / PX 3.2V DC for pulse signals and 1.2V DC for coil pick-up. Note: This is not a real sensor supply. Only suitable for pulse sensors with a very low power consumption like coils (sine wave) and reed-switches. Type PD 1.2 - 3.2 - 8.2 - 12 and 24V DC - max.
- Page 43 Page 43 Temperature Type TP 2 or 3 wire PT100. Standard range: -100°C to +200°C (-148°F to 392°F) - accuracy 0.1 °C (0.18°F). Update time four times a second. Note The linearity is internally compensated. Option ZV range: -200°C to +800°C (-328°F to 1832°F) - accuracy 0.5 °C (0.9°F). Type TA (0)4-20mA - with signal calibration feature.
- Page 44 Page 44 OPERATIONAL Operator functions Displayed functions • compensated total and/or compensated flowrate. • compensated total and compensated accumulated total. • line temperature. • compensated total can be reset to zero by pressing the CLEAR-key twice. Total Digits 7 digits. Units L, m3, GAL, USGAL, KG, lb, bbl, no unit.
-
Page 45: Appendix B: Problem Solving
Page 45 APPENDIX B: PROBLEM SOLVING In this appendix, several problems are included that can occur when the F126-P-EL-TA is going to be installed or while it is in operation. Flowmeter does not generate pulses: Check: Signal selection SETUP - 41, ... -
Page 46: Appendix C: Communication Variables
Page 46 APPENDIX C: COMMUNICATION VARIABLES Remarks: Below, an overview of the F126-P-EL-TA specific variables; other common variables are described in the standard table. All numbers are decimal numbers, unless otherwise noted. The following variables of the standard table (var00-var30) are not valid for this product and will be responded with value 1: var00, 03-05, 07,08, 16-22, 24, 26-29. - Page 47 Page 47 DESCRIPTION BYTES VALUE REMARKS POWERMANAGEMENT LCD update time 0=fast (50h) 1=1sec 2=3sec 3=15sec 4=30sec 5=off power-mode battery 1 0=operational (51h) 1=shelf FLOWMETER flowmeter signal 0=npn (60h) 1=npn-lp 2=reed 3=reed LP 4=pnp 5=pnp-lp 6=namur 7=coil hi 8=coil lo TEMPERATURE span 1..9,999,999 (212h)
- Page 48 (A8h) tagnumber 0..9999999 Other vars: see standard table OTHER F126-P-EL-TA VARIABLES FOR COMMUNICATION TOTAL - variable number 566 (236h) – 6 bytes Read total: The value of total read using RS communications might differ from the value that appears on the display. This is due to the fact that the display can only display up to...
-
Page 49: Index Of This Manual
Page 49 INDEX OF THIS MANUAL accumulated Total Intrinsically Safe options actual settings IP classification alarm keys analog low-battery cut-off value main-function disable/enable maintenance filter model floating output. NAMUR-signal flowrate max. Operator level flowrate min. pass code 21, 45 intrinsically safe output. power supply 27, 28 output loop powered. -
Page 50: List Of Figures In This Manual
Fig. 7: Grounding aluminum enclosure with type PM 115-230V AC..........25 Fig. 8: Switch setting sensor supply voltage..................26 Fig. 9: Overview of terminal connectors standard configuration F126-P-EL-TA and options.... 27 Fig. 10: Overview terminal connectors communication option............33 Fig. - Page 51 Page 51 NOTES LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE : DATE : 1 - TOTAL Enter your settings here 11 unit 12 decimals 0000000 13 K-factor 0000001 14 decimals K-factor 2 - FLOWRATE 21 unit 22 time unit /min 23 decimals 0000000 24 K-factor...
- Page 52 _ _ _ _ _ _ _ 94 pass code 0000 95 tagnumber 0000000 Fluidwell bv HF126PEN_EL_TA_v0501_05 PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright Fluidwell bv - 2012 - HF110AEN_v0501_03...
