This manual describes how to install the following products:
LCP01U/LCP01X 1-button 1-home doorphone kit
LCP02U/LCP02X Code-operated 1-home doorphone kit
LCP03U/LCP03X 2-button 2-home doorphone kit
LCP03U/LCP03X Code-operated 2-home doorphone kit
LCA01U/LCA01X Interior handset unit + base + EU power pack
LCB01X
MHF01X
MHF02X
MHF03X
MHF04X
MHF05X
MHF06X
Foreword
The doorphone system can be used to welcome and filter visitors, listen in to background sounds
at each access point and communicate with another handset.
It can also be used to remotely control:
• one or several electrical latches,
• one or several automatic gate control systems,
• one or several automatic garage door control systems,
• one or several lights.
It also allows users to check the status of access points or lights using the screen on the handset
at any time.
Several additional interior handset units can be added to the doorphone system (maximum of 4
per call button).
Hager Security SAS hereby declares that the radioelectric equipment, references LCA01U, LCA01X,
LCB01X, MHF01X, MHF02X, MHF03X, MHF04X, MHF05X and MHF06X, complies with the requirements
of the following 2014/53/EU RE-D directive.
The full text of the EU declaration of conformity is available at the address: www.hager.com.
Non-binding document, subject to modification without notice.
176
Controller

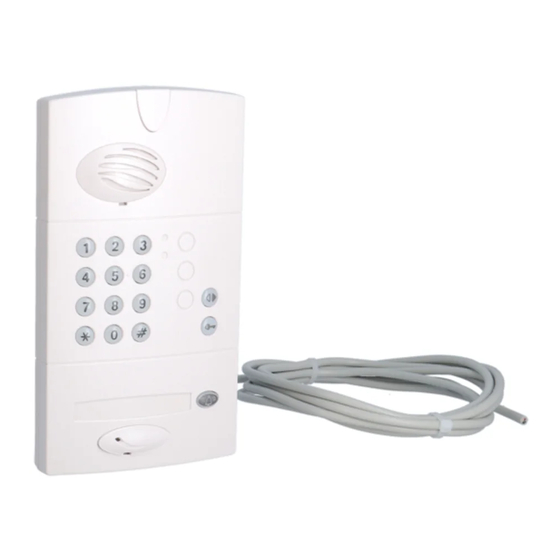

Translucent 2-home outdoor caller unit
Translucent code-operated 2-home outdoor caller unit
Opaque 1-home outdoor caller unit
Opaque 2-home outdoor caller unit
Opaque code-operated 1-home outdoor caller unit
Opaque code-operated 2-home outdoor caller unit
Advertisement
Table of Contents
Related Manuals for hager LCP01U
Summary of Contents for hager LCP01U
- Page 1 LCB01X, MHF01X, MHF02X, MHF03X, MHF04X, MHF05X and MHF06X, complies with the requirements of the following 2014/53/EU RE-D directive. The full text of the EU declaration of conformity is available at the address: www.hager.com. Non-binding document, subject to modification without notice.
-
Page 2: Table Of Contents
Contents 1. Introduction ..............................178 2. Description..............................180 2.1 Outdoor system ............................180 2.2 Interior handset unit........................... 180 3. Tooling required ............................. 184 4. Preparation ..............................185 4.1 Guarantee stickers............................. 185 4.2 Charging the handset before installation ....................186 5 Installing the outdoor system........................189 5.1 Installing the outdoor caller unit ........................ -
Page 3: Introduction
1. Introduction DOORPHONE SYSTEM COMPONENTS Outdoor caller units wired to main controller (road side) 1 call button 2 call buttons + tag reader + tag reader OUTDOOR SYSTEM 1 call button with keypad 2 call buttons with keypad + tag reader + tag reader Connection of gate motorisation... - Page 4 Each kit comprises the following (minimum): • An outdoor caller unit installed on the road side, for visitors. • A controller installed on the same pillar but on the garden side. This controller provides: - the radio link with the interior handset unit, - the power supply to the outdoor caller unit and controller, - the connections to the electrical lock or latch and gate motorisation system.
-
Page 5: Description
2. Description 2.1 Outdoor system 2.1.1 Outdoor caller units with armoured cover Programming Loudspeaker keypad for entering access code to allow Call button pedestrians and (1 or 2 depending cars to enter on model) 4 handsets max. Gate access per button control button Blank label Latch/side... - Page 6 2.2.2 Handset unit IMPORTANT: when installing the system, the handset(s) must be charged on their base before they can be used. Cover closed Cover open Removable belt clip Loudspeaker Display Garage Communication button control button Latch/side gate control button Lighting Inter-handset control button communication button...
- Page 7 2.2.3 Display description Handset battery status Communication in progress Radio range flat no signal Missed call Handset in silent mode needs poor charging charging average recommended good fully charged excellent charging Indoor temperature Scrolling text zone: Temperature unit: - display of time - °C: Celsius - outdoor temperature - °F: Fahrenheit...
- Page 8 2.2.4 Handset display in standby mode (general information screen) Handset battery status Indication of the outdoor temperature The temperature displayed is the temperature measured at Time the first access point programmed and is updated every 10 minutes Indication of the indoor temperature The temperature displayed is the temperature measured on...
-
Page 9: Tooling Required
3. Tooling required 6/8 mm PZ 0 PZ 2 3 mm 6 mm 3.5 mm GUARANTEE The conditions according to which the guarantee and after sales service apply are described in the general price list and can be sent on request. Some after sales service products and accessories, such as: •... -
Page 10: Preparation
4. Preparation 4.1 Guarantee stickers Remove the pre-cut parts of the stickers and stick these to the extension request supplied. On the back of the caller unit On the handset MHF01X A0831A04823 MHF01X Coller sur certif A0831A04823 LCA01F Coller sur certif A0831A04823 Inside the controller 1. -
Page 11: Charging The Handset Before Installation
4.2 Charging the handset before installation IMPORTANT: when installing the system, the handset(s) must be charged on the base before it/they can be used. 1. Open the base. 2. Remove the 4 anti-slip pads. ➁ ➀ ➀ 3. Rotate the back of the base until it is in “table” position. 4. - Page 12 6. Thread the power cable into one of the 7. Unscrew the locking screw. guides at the back of the base. Pozidriv 0 Alternative guides 8. Screw it back into the same place hence 9. Close the base. locking the base in “table” position. Pozidriv 0 10.
- Page 13 12. Connect the power pack to the mains 13. Put the handset on the base. (220 V). The handset displays this message for 2 sec.: Electrical shock hazard Then CHARGING if the battery is not sufficiently charged (1). IMPORTANT: the mains socket must remain accessible so that the power pack can be easily disconnected.
-
Page 14: Installing The Outdoor System
Put the screw Stick a transparent covers back. protection label on top. TIP: you can print the labels using the software (EtikPrint) available on the Hager Pozidriv 2 web site. - Page 15 Mounting the outdoor caller units with armoured cover 145 mm 145 mm 145 mm 145 mm IMPORTANT: use the label supplied and carefully TIP: you can position it in the space provided. print the labels using the software (EtikPrint) available on the Hager web site.
- Page 16 Pozidriv 2...
- Page 18 IMPORTANT: when the armoured cover is positioned on the unit, there should be a 1 mm clearance (use the shim for this purpose) between the pillar and armoured cover. Pozidriv 2...
-
Page 19: Installing The Controller
5.2 Installing the controller 1. Unscrew the locking screw from the 2. Following the installation rules below, bracket and then remove it. mark 3 fixing points and drill a hole in the pillar using a Ø 6 mm drill bit. Pozidriv 2 4 cm minimum... -
Page 20: Connecting The Equipment
3. Insert a washer and fix the bottom and 4. Hook the base on to the fixing bracket. then the top of the bracket. Fixing without a washer ➀ Detach and dispose of unused washers ➁ Pozidriv 2 Fixing with a washer 5. - Page 21 TIP: • All terminal blocks can be unplugged to facilitate wiring. • The connections to be made are summarised on a label inside the controller cover. 3. Connecting the outdoor caller unit 15 16 17 18 Connect the 4 outdoor caller unit wires to terminal blocks 15 to 18 on the controller.
- Page 22 5. Connecting a gate motorisation system Use a cable cross-section of 22 mm (telephone type wire) to connect the system. IMPORTANT: for the information 9 10 11 12 13 14 feedback to be properly managed, the position contact (ref. D8921 on the price list) must be wired before NC NO power-up and be in closed position...
-
Page 23: Powering The Controller
5.4 Powering the controller 1. Two types of power supply can be used. • Battery IMPORTANT: push the batteries into their slot making sure that the + pole of each Position the 4 LR20 1.5 V one is in contact with the metal part. batteries (not supplied) making sure they are the right way round. - Page 24 2. When powered, the outdoor caller unit lights up and beeps every 2 sec. The radio link creation LED also lights up red for 2 sec. If this is not the case, check that the controller’s batteries or external power supply are properly connected.
-
Page 25: Creating The Radio Link Between The Handset And The Controller
5.5 Creating the radio link between the handset and the controller IMPORTANT: each call button on the outdoor caller unit can be linked via radio with up to 4 handsets. 1. At this stage in the installation procedure, the handset should display: If this is not the case, the handset needs to be charged (see chapter on Charging the handset before installation) until the language selection message is displayed. - Page 26 Controller Handset unit Outdoor caller unit 6. Put the controller in radio link creation mode by pressing The radio link creation LED lights up orange. 7. The radio link creation LED The handset displays: lights up orange. 8. Press once on the outdoor caller unit so that it calls the handset.
- Page 27 Controller Handset unit Outdoor caller unit 9. The handset displays: then Display of time, indoor and outdoor temperature, gate, side gate and The radio link LED lights up latch status (if position contacts green for 2 sec. connected). beeps for 2 sec The outdoor caller unit beeps for 2 sec.
-
Page 28: Testing The Radio Range
6. Testing the radio range Before installing the handset base, make sure the radio range between the handset and the controller(s) is good. 1. Stand in the place you wish to install the handset unit and quickly press key. 2. If you have several access points: select the access point from where you would like to listen in to background sounds using the keys... -
Page 29: Installing The Interior Handset Unit
7. Installing the interior handset unit 7.1 On a table The table mounting procedure is described in the chapter on Charging the handset unit before installation. 7.2 On a wall This chapter describes how to move the handset unit from a “table” position (in which the handset unit is normally placed at this stage in the installation, see chapter on Charging the handset unit before installation) to a “wall”... - Page 30 4. Unscrew the base locking screw. 5. Open the base. ➁ ➀ Pozidriv 2 6. Unscrew the locking screw. 7. Insert the screw here and tighten it. Pozidriv 0 Pozidriv 0 8. Rotate the back of the base until it is in wall position.
- Page 31 9. Mark the 2 fixing points and then make a hole using a Ø 6 mm drill bit. roughly 1.5 m high 10. Check the power pack jack is in the 11. Thread the power cable into one of the right position.
- Page 32 14. Tighten the locking screw. 15. Connect the power pack (220 V). Electrical shock hazard Pozidriv 2 IMPORTANT: the mains socket must remain accessible so that the power pack can be easily disconnected. 16. Place the handset on the base. The handset beeps once.
-
Page 33: Testing Operation
8. Testing operation 8.1 Testing communication with each interior handset unit 1. Press on the outdoor caller unit call button. IMPORTANT If the handset being called is already: To confirm the call, the outdoor caller unit • communicating with another outdoor caller unit or handset, rings at regular intervals for 30 sec. -
Page 34: Testing Access Controls
8.2 Testing access controls IMPORTANT: to test the access controls, it is first necessary to register a tag or programme an access code on the outdoor caller unit (see User guide/11.2 Modifying tag options/11.3 Modifying access code options). Activate the outdoor Status display Latch access status caller unit... -
Page 35: Appendices
9. Appendices 9.1 General information about creating the radio link An OPTWIN installation is a home-control system in which all the doorphone products communicate with each other via radio. It comprises different types of products that can be classed according to their function at a given time T in the installation: •... - Page 36 Configuring an OPTWIN installation consists in: • creating radio links between the different transmitter and receiver products to define who controls who and who sends information to whom. • allocating a function to each radio link, e.g. when the Light button on the handset is pressed, this activates the lighting controlled by the output receiver for 5 minutes.
- Page 37 9.1.1 The controller is used as a transmitter Application examples By creating a radio link between a controller and an output receiver, the following applications can be set up: • gate opening can switch on lighting to facilitate night time access and gate closing can switch off lighting, •...
- Page 38 Controller Receiver 4. Select the event associated with the function. Using the keys and controller display. Event N° Event name Comment Gate opening This event is displayed when the gate is opened Gate closed This event is displayed when the gate closes, as long as limit switches have been wired.
- Page 39 Controller Receiver 5. Validate the procedure. Press on the key. The radio link creation LED lights up green for 2 sec. Otherwise, start the procedure again. The radio link has been created. IMPORTANT: if an error occurs, the radio link LED flashes red 3 times. The radio link creation process should be performed again in this case.
- Page 40 9.1.2 The handset is used as a transmitter Application examples By creating a radio link between the keys on the handset and an output receiver, the following applications can be set up: Radio link n° 1 Press once on the to open the garage door and press again to close.
- Page 41 Handset Receiver 2. Switch to radio link creation mode. 3. Select the function. Information available in the receiver product manual. 4. Select the key associated with the function. Press on the then Select a command from the following: GARAGE 1 LIGHT 1 GARAGE 2 LIGHT 2...
- Page 42 Handset Receiver 5. Validate the procedure. Press on the key. The handset displays: then beeps for 2 sec Garage or light icon displayed The radio link has been created. If an error occurs, It beeps 3 times Perform the radio the handset displays: and then link creation...
- Page 43 9.1.3 Specific cases • Creating a radio link between a handset and several controllers or several outdoor caller unit call buttons A handset can be associated with 4 different inputs. By creating a radio link between the handset and the controller (see chapter on Installing the doorphone), you have created radio link n° 1 (e.g.
- Page 44 Controller Handset Outdoor caller unit 2. Switch the handset to radio link creation mode. Display the following screen using the keys The radio link creation LED flashes orange. 3. Press once on the outdoor caller unit call button to call the handset.
- Page 45 Controller Handset Outdoor caller unit 4. The handset displays: then The radio link creation LED lights up green for 2 sec. beeps for 2 sec. “ EEP” The radio link has been created. If an error occurs, It beeps 3 times Perform the radio the handset displays: and then...
- Page 46 IMPORTANT: each handset can be linked via radio with a maximum of 7 other handsets. handset handset 1. Switch the handset to radio link creation mode. Display the following screen using the keys 2. Switch the handset to radio link creation mode.
- Page 47 handset handset 3. Press 4. The handset displays: 4. The handset displays: then then beeps for 2 sec. beeps for 2 sec. The radio link has been created If an error occurs, It beeps 3 times Perform the radio the handset displays: and then link creation automatically...
-
Page 48: Testing The Radio Link
9.2 Testing the radio link This function is used to test the radio links created between a handset and a controller. To do this, open the controller cover and proceed as follows: Handset Controller 1. Switch the handset to radio link test mode. Display the following screen using the keys 2. - Page 49 Handset Controller 3. Select the controller to be tested using the keys 4. Press again on The controller screen displays “1”. is linked via radio to the controller gate output. The controller screen displays “2”. is linked via radio to the controller side gate output.
-
Page 50: Deleting Radio Links And Returning To Factory Programming
9.3 Deleting radio links and returning to factory programming 9.3.1 Deleting a radio link between a controller and a handset This function is used to delete the radio links created between a controller and a handset. Controller Handset Outdoor caller unit 1. - Page 51 Controller Handset Outdoor caller unit 3. Press once on the outdoor caller unit call button to call the handset. 4. The handset displays: then The radio link creation LED lights up green for 2 sec. beeps for 2 sec. The outdoor caller unit beeps for 2 sec.
- Page 52 9.3.2 Returning the handset and controller to factory programming This procedure is used to delete all the radio links and reset all handset and controller parameters to their factory value. 1. Switch the handset to radio link deletion mode. Display the following screen using the keys...
- Page 53 2. Press and hold until the screen displays OK. The handset displays: then beep for 2 sec. If an error occurs, It beeps 3 times Perform the radio the handset displays: and then link deletion automatically procedure again. returns to the general information screen: 3.
-
Page 54: Changing The Batteries
10. Changing the batteries 10.1 In the main controller When the “BATTERY ACCESS X” IMPORTANT: disconnect the controller message appears, you have from the electrical network before 1 month in which to change the carrying out any maintenance work. batteries of the controller Electrical shock concerned. - Page 55 10.2 In the handset When you change the controller batteries, it is also advisable to change the handset batteries. 1. Take the handset off its base and remove 2. Insert a flat screwdriver into the slot and the belt clip by pressing on one of its press to open the handset.
-
Page 56: Questions - Answers
11. Questions - Answers Questions Answers Why can conversation be This can happen when you are at the radio reception limit. “broken” when using the The controller cuts off communication when you go beyond handset? this limit. You should move closer to the controller. What causes the interference This can happen when the handset is too close to another (Larsen effect, crackling, etc.) - Page 57 Creating a radio link between a handset and several controllers or several outdoor caller unit call buttons). Why does the handset not For a Hager brand automatic control system, check the wiring display the status of the and check for any short-circuits between terminal blocks 9 motorisation system connected? and 10.
-
Page 58: Technical Data
12. Technical data General data • Failsafe multi-frequency radio technology with a free field (1) range of up to 400 m, according to environmental and installation conditions • Radio link: 868 - 870 MHz, 25 mW max, Duty cycle: 0,1%, Rx: category 2 •... - Page 61 Hager SAS 132 Boulevard d’Europe BP 78 F-67212 OBERNAI CEDEX Tél. +333 88 49 50 50 www.hager.com Hager 04.19 805202/B...
