DANGER
- IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) If a gas odor persists, keep away from your
appliance and contact your gas supplier or fire
department immediately.
ATTENTION:
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE
INSTALLING AND OPERATING.
Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA
USE & CARE GUIDE

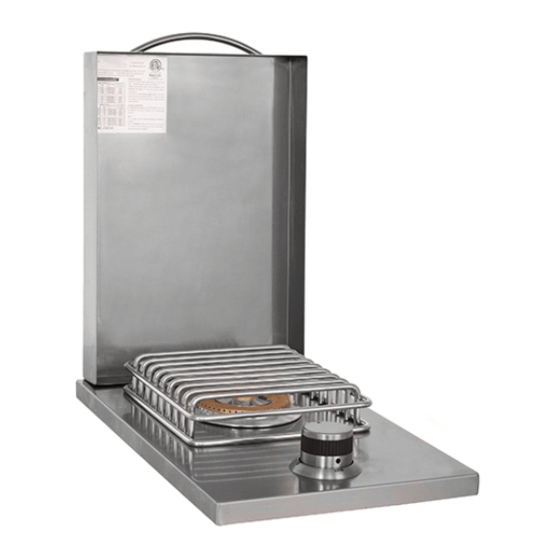

SINGLE SIDE BURNER MODEL
SINGLE SIDE BURNER MODEL BLZ-SB1(NG/LP)
- CONTACT INFORMATION -
70805 USA Phone: 866-976-9510
email: CustomerService@BlazeGrills.com
WWW.BLAZEGRILLS.COM
BLAZE Instructional Book
WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance.
2) An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
Page | 1
Advertisement
Table of Contents
Related Manuals for Blaze BLZ-SB1-LP
Summary of Contents for Blaze BLZ-SB1-LP
- Page 1 INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER. CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING AND OPERATING. - CONTACT INFORMATION - Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA 70805 USA Phone: 866-976-9510 email: CustomerService@BlazeGrills.com WWW.BLAZEGRILLS.COM...
-
Page 2: Table Of Contents
VI. Installing the Appliance in a BBQ Island i. Outdoor Kitchen Ventilation 21-23 ii. Building BBQ Specifications + Instruction Diagrams 23-24 VII. First Time Operation i. Lighting the Appliance 25-26 ii. Manually Lighting the Appliance iii. Flame Adjustment 26-27 BLAZE Instructional Book Page | 2... - Page 3 VIII. Cleaning your Appliance 27-28 IX. Fuel Conversion i. Gas Regulator 28-29 ii. Burners Troubleshooting XI. Warranty Registration XII. Parts XIII. Product Serial Number XIV. BLAZE Product Registration BLAZE Instructional Book Page | 3...
-
Page 4: Burner Specifications
THIS MANUAL APPLIES TO THE FOLLOWING BLAZE PRODUCT: SINGLE SLIDE IN SIDE BURNER PRODUCT SPECIFICATIONS NOTE: ALWAYS have equipment measured by Contractor before beginning any project. Single Side Burner Cut Out 11 1/4" W x 18” D (Allow for 2 13/16" of drop-in clearance into your island) -
Page 5: General Safety And Installation Warnings
General Safety and Installation Warnings Safe operation of the BLAZE burner depends upon its proper installation. Only a qualified professional installer and service technician must perform adjustments and service of the burner. Proper location and proper use is essential to insure safe and continued trouble-free operation. - Page 6 When using your BLAZE appliance, please read and follow these basic precautions: To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before installing/operating your appliance. APPLIANCE INSTALLATION This gas appliance must be installed in accordance with all local codes.
- Page 7 Although an obstructed burner tube is not the only cause of “FLASH- BACK” it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary. BLAZE Instructional Book Page | 7...
-
Page 8: Location Of Appliance
Please note since hot air rises above the BLAZE burner while in operation, covered locations should be avoided. Do not locate the BLAZE burner where an overhang or awning may cover BLAZE Instructional Book... - Page 9 Non-Combustible Enclosure: The BLAZE burner must be installed in a NON-COMBUSTIBLE ENCLOSURE ONLY. The determination of whether a location is combustible or non-combustible construction is made by the local fire marshal, building inspector or the local safety authority having jurisdiction.
- Page 10 Do not leave the appliance unattended while in use. Do not use water on grease fires! A violent steam explosion may result. Instead, smother the fire with a multipurpose ABC extinguisher. BLAZE Instructional Book Page | 10...
-
Page 11: Electrical Safety And Installation Warnings
Do not operate any appliance with a damaged power cord or power plug, and do not operate any appliance after the appliance malfunctions or has been damaged in any manner. If this should occur, return the appliance to the nearest authorized service facility for examination, repair or adjustment. BLAZE Instructional Book Page | 11... -
Page 12: Gas Safety And Installation Warnings
LP tank to be used. The cylinder must be marked in accordance with the latest U.S. Department of Transportation specifications for LP gas cylinders. (DOT. CFR49 or National Standards of Canada CAN/CSA-B359 Cylinders, Spheres and Tubes for the BLAZE Instructional Book Page | 12... - Page 13 Ensure that the service supplying the appliance is fitted with a shut off valve conveniently positioned near the appliance and giving ease of access. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system. BLAZE Instructional Book Page | 13...
-
Page 14: Checking For Gas Leaks
AFFECT THE SAFETY BEFORE EACH USE. ONLY THE FACTORY SUPPLIED HOSE AND REGULATOR MUST BE USED. USE ONLY REPLACEMENT REGULATOR AND HOSE ASSEMBLIES SPECIFIED BY BLAZE. Checking for Gas Leaks Perform a leak test before each use. In addition, whenever the gas cylinder is connected to the regulator or whenever any part of the gas system is disconnected or replaced, perform a leak test. - Page 15 Ensure the leak test includes all valves, pipe connections, joints, lines and every point from the gas source to the burners. BLAZE Instructional Book Page | 15...
-
Page 16: Unpacking Unit
Your BLAZE Series Appliance comes pre-assembled and requires very little setup. We do however; recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. -
Page 17: Gas Connections
Liquid Propane (LP) Gas and Tank Requirements If your BLAZE burner is for a Liquid Propane application, an LP regulator set for 11” WC must be used. The regulator and hose supplied must be used with a 20 lb. LP cylinder. -
Page 18: Transporting And Storing Lp Gas
Department of Transportation or the National Standard of Canada, CAN/CSA‐ B339. The basic tank size is 12” in diameter and 18” High with a QCC‐1 cylinder valve. 1. Turn the “Hand Wheel” on cylinder clockwise until it stops to ensure the Cylinder Valve is fully BLAZE Instructional Book Page | 18... - Page 19 6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position. 7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops. 8. Disconnect the regulator from the LP cylinder after use. BLAZE Instructional Book Page | 19...
-
Page 20: Installing The Appliance In A Bbq Island
Wind can back up the heat behind the control panel potentially creating a gas leak, damage to the product, and injury. A wind block behind the appliance may be necessary. BLAZE Instructional Book Page | 20... -
Page 21: Outdoor Kitchen Ventilation
24), and both the cabinets containing the gas appliances and the gas tank should be ventilated appropriately. If a plenum wall is undesirable, BLAZE offers a Propane tank drawer as an alternative. NG/Natural Gas: Natural gas is lighter than air and will rise to the highest levels of the outdoor kitchen. It is imperative to provide adequate cross ventilation for the areas where gas can accumulate at these higher levels of the island cavity. - Page 22 Be very careful not to kink the gas line when lowering the appliance into the cut out. • Keep your fingers away from where the appliance will be supported on counter. Your fingers could become trapped and serious injury could occur. BLAZE Instructional Book Page | 22...
-
Page 23: Building Bbq Specifications + Instruction Diagrams
ALL BBQ ISLANDS MUST BE MANUFACTURED FROM “NON-COMBUSTIBLE” MATERIAL. Maintain minimum clearance to adjacent combustible construction at 16” from sides & 16” from back. HEIGHT MODEL DESCRIPTION WIDTH (B) DEPTH (C) BLZ-SB1(NG/LP) Single Side Burner 2 13/16” 11 1/4" 18" BLAZE Instructional Book Page | 23... - Page 24 Installation Diagram Installation Method for Low Pressure Gas ( 5 Gallon LP Tank Shown) Source – (Natural Gas Regulator Shown) BLAZE Instructional Book Page | 24...
-
Page 25: First Time Operation
You will hear a loud click as the electronic lighter produces a spark. Listen for the sound of the gas igniting and look for a flame through the cooking grate. If the burner does not light on the first try, repeat immediately. BLAZE Instructional Book Page | 25... -
Page 26: Manually Lighting The Appliance
Become familiar with the safety instructions at the front of this manual. Do not smoke while lighting the appliance or checking the gas supply connections. b. Make sure that all gas connections are securely tightened and have been leak-tested with a soapy BLAZE Instructional Book Page | 26... -
Page 27: Cleaning Your Appliance
Cooking Rack Brush off any debris with a stainless steel bristle brush. Burners The appliance must be completely cooled before proceeding. Make sure the gas supply is off and all control BLAZE Instructional Book Page | 27... -
Page 28: Fuel Conversion
Please consult your local Propane gas provider to confirm the gas pressure on the supply line feeding the appliance. 2. If converting to Natural Gas, a low pressure regulator with an outbound pressure set to 4” of Water BLAZE Instructional Book Page | 28... - Page 29 Column pressure must be used. 3. With either setup, remember to always check for gas leaks after the job is complete (see checking for gas leaks). BLAZE Instructional Book Page | 29...
-
Page 30: Burners
Fuel (Gas) Conversion Instructions for BLAZE Gas Burners. There will be an orifice conversion kit in each Side Burner appropriate for the opposite gas type. The kit will include the office to be replaced. CAUTION: This should only by performed by a licensed gas professional. -
Page 31: Warranty Registration
Warranty Registration If you have purchased a Blaze Series Burner you must register your product within 30 days of purchase to validate the warranty and maintain your original receipt to get parts for the appliance. You may register your appliance e at blazegrills.com by selecting Support, and then selecting Register your Product. - Page 32 BLAZE Instructional Book Page | 32...
-
Page 33: Product Serial Number
Locating the Product Serial Number: The serial number for your BLAZE appliance is located on the inside of the burner lid. You will need this number to properly register your appliance and activate coverage. Write this information in the space provided below for... -
Page 34: Blaze Product Registration
Please take a minute to let us know what you bought. This makes sure we keep you up to date and have your info ready if you ever need warranty help! You may register your product electronically on the blaze website vs mailing in the below paperwork, blazegrills.com.
