DANGER
- IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) Open grill hood to release any accumulation of gas
vapor.
4) If a gas odor persists, keep away from your
appliance and contact your gas supplier or fire
department immediately.
ATTENTION:
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE
INSTALLING OR OPERATING.
Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA
USE & CARE GUIDE

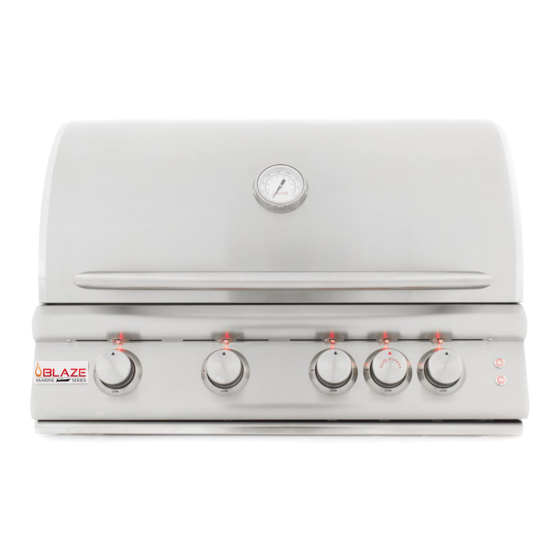

GAS GRILLS BLZ-4LTE2MG (NG/LP)
- CONTACT INFORMATION -
70805 USA Phone: 866-976-9510
CustomerService@BlazeGrills.com
WWW.BLAZEGRILLS.COM
Blaze Outdoor Products Instructional Book
WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance
2) A LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
Page | 1
Advertisement
Table of Contents
Related Manuals for Blaze BLZ-4LTE2MG
Summary of Contents for Blaze BLZ-4LTE2MG
- Page 1 INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER. CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING OR OPERATING. - CONTACT INFORMATION - Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA 70805 USA Phone: 866-976-9510 CustomerService@BlazeGrills.com WWW.BLAZEGRILLS.COM...
-
Page 2: Table Of Contents
Outdoor Kitchen Ventilation 22-23 ii. Building BBQ Specifications and Instruction 23-25 iii. Installation Diagrams VII. First Time Operation i. Lighting the Appliance 27-28 ii. Manually Lighting the Appliance 28-29 iii. Flame Adjustment 29-30 Blaze Outdoor Products Instructional Book Page | 2... - Page 3 Infrared Burner Cleaning Drip Tray Flame Guard XI. Fuel Conversion i. Gas Regulator 34-35 Main Burner iii. Rear Burner XII. Warranty Registration XIII. Grill Parts XIV. Product Serial Number XV. Blaze Product Registration Blaze Outdoor Products Instructional Book Page | 3...
- Page 4 In addition to the parts warranty found below, Blaze Outdoor Products will cover up to $120 in labor per warranty claim in a 30-day period for the first 365 days from purchase date. (Blaze will not reimburse for any diagnostic charges). Please call our customer service department for help diagnosing the issue before calling a service provider.
-
Page 5: Bbq Specifications
*These dimensions create the required air gap underneath this appliance. This air gap serves multiple purposes, such as preventing a build-up of heat in the island cavity and helping provide proper airflow for combustions and/or cabinetry. Blaze Outdoor Products Instructional Book Page | 5... -
Page 6: General Safety And Installation Warnings
General Safety and Installation Warnings Safe operation of the BLAZE GRILL depends upon its proper installation. Only a qualified professional installer and service technician must perform adjustments and service of the grill. Proper location and proper use is essential to insure safe and continued trouble-free operation. - Page 7 When using your Blaze appliance, please read and follow these basic precautions: To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before installing/operating your appliance. APPLIANCE INSTALLATION This gas appliance must be installed in accordance with all local codes.
- Page 8 Although an obstructed burner tube is not the only cause of “FLASH- BACK” it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary. Blaze Outdoor Products Instructional Book Page | 8...
- Page 9 Never lean over the cooking surface when lighting or operating the appliance. • Use cooking utensils with wood handles and insulated oven mitts when operating the appliance. • Blaze Outdoor Products Instructional Book Page | 9...
-
Page 10: Location Of Appliance
Please note since hot air rises above the BLAZE GRILL while in operation, covered locations should be avoided. Do not locate the BLAZE GRILL where an overhang or awning may cover it. •... - Page 11 A minimum 6 foot of clearance is required between the countertop and the overhead construction. o When installed under a combustible overhead construction, the area above the Blaze appliance must be covered with a vent hood. The vent hood must provide protection for the combustible overhead construction.
-
Page 12: Electrical Safety And Installation Warnings
This appliance conforms to all uniform electrical safety codes and electrical grounding regulations. Install unit according to I.A.W. local codes or with National Electrical Code ANSI/NFPA 70 or CSA C22.1 in their absence. Blaze Outdoor Products Instructional Book Page | 12... -
Page 13: Gas Safety And Installation Warnings
CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY HOT SURFACE, SHARP OR ROUGH EDGES OF THE GRILL OR OUTDOOR KITCHEN CONSTRUCTION. DO NOT KINK THE GAS LINE WHEN INSTALLING. Blaze Outdoor Products Instructional Book Page | 13... - Page 14 Ensure that the service supplying the appliance is fitted with a shut off valve conveniently positioned near the appliance and giving ease of access. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system. Blaze Outdoor Products Instructional Book Page | 14...
-
Page 15: Checking For Gas Leaks
Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by BLAZE OUTDOOR PRODUCTS. Checking for Gas Leaks Perform a leak test before each use whether the gas supply cylinder has been disconnected or not. - Page 16 Open the valve (shut-off or ‘ON’ LP tank). Test for leaks by applying liquid soap solution to all joints. Bubbles forming indicate gas leak. Blaze Outdoor Products Instructional Book Page | 16...
-
Page 17: Unpacking Unit
Your Blaze Series Appliance comes pre-assembled and requires very little setup. We do however; recommend the use of professional help during the installation of your unit as improper installation may affect your warranty. -
Page 18: Gas Connections
• Liquid Propane (LP) Gas and Tank Requirement If your BLAZE GRILL is for a Liquid Propane application, a LP regulator set for 11” WC must be used and is • for use with LP gas only. (In bulk applications only, you will not use the supplied hose and regulator) •... -
Page 19: Transporting And Storing Lp Gas
Transport only one cylinder at a time. Ensure the cylinder is secured in an upright position with the control valve turned off and the dust cap in place. Store cylinders outdoors and out of the reach of children. Do not store cylinders in a building, garage, or any other enclosed area. Blaze Outdoor Products Instructional Book Page | 19... - Page 20 6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position. 7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops. 8. Disconnect the regulator from the LP cylinder after use. Blaze Outdoor Products Instructional Book Page | 20...
-
Page 21: Installing The Appliance In A Bbq Island
This can back up the heat behind the control panel potentially creating a gas leak, damage to the product, and injury. A wind block behind the grill may be necessary. Blaze Outdoor Products Instructional Book Page | 21... -
Page 22: Outdoor Kitchen Ventilation
If a plenum wall is undesirable, Blaze offers a Propane tank drawer as an alternative. NG/Natural Gas: Natural gas is lighter than air and will rise to the highest levels of the outdoor kitchen. -
Page 23: Building Bbq Specifications And Instruction
Before installing the grill into the island cutout, the main burner cotter pins may be removed for convenience of service, adjustments, and maintenance in the future. These are accessible from the outside rear of the grill. Blaze Outdoor Products Instructional Book Page | 23... - Page 24 Perform the leak test procedure as described earlier in this manual. • Connect the transformer to the grill, then into the electrical outlet. Be sure to follow all of the electrical safety and instructions found on page 12. Blaze Outdoor Products Instructional Book Page | 24...
- Page 25 *These dimensions create the required air gap underneath this appliance. This air gap serves multiple purposes, such as preventing a build-up of heat in the island cavity and helping provide proper airflow for combustions and/or cabinetry. Blaze Outdoor Products Instructional Book Page | 25...
-
Page 26: Installation Diagrams
Additional Hood Clearance Installation Diagram Installation Method for Low Pressure Gas (5 Gallon LP tank shown) Source- (Natural Gas Regulator Shown) Blaze Outdoor Products Instructional Book Page | 26... -
Page 27: First Time Operation
You will hear a loud click as the electronic lighter produces a spark. Listen for the sound of the gas igniting and look for a flame through the cooking grids. If the burner does not light on the first try, repeat Blaze Outdoor Products Instructional Book Page | 27... -
Page 28: Manually Lighting The Appliance
Wait five minutes until the gas clears before attempting to light it again. If the burner does not light after several attempts, immediately close all gas valves and consult an authorized service technician. Blaze Outdoor Products Instructional Book Page | 28... -
Page 29: Flame Adjustment
With the cooking grids and flame tamers removed, light the main burners and run them on the high setting. d. Inspect burners for proper flame appearance. The ideal flame appearance is one that is mostly blue Blaze Outdoor Products Instructional Book Page | 29... -
Page 30: Cleaning Your Appliance
After the first use, it is normal for your appliance to become discolored in certain areas from the heat produced by the burners. A video for cleaning your grill is located on the Blaze website to assist with the below instructions, www.blazegrills.com Exterior Cleaning When cleaning your appliance, always scrub and polish in the direction of the stainless steel grain. - Page 31 NOTE: Make sure each burner is properly placed after cleaning. It is very important to ensure the end of the burner is installed appropriately onto the gas valve to ensure gas flows safely into the burner. Failure to meet these conditions can cause dangerous conditions that can cause personal injury and/or property damage Blaze Outdoor Products Instructional Book Page | 31...
-
Page 32: Optional Infrared Sear Burner
Optional Infrared Sear Burner How to Replace Conventional Burner with Infrared Sear Burner (A video for installing the infrared sear burner is located on the blaze website to assist with the below instructions, www.blazegrills.com 1. To install the optional infrared burner, begin by removing the far left cooking grid, flame stabilizing grid and heat zone divider. -
Page 33: Drip Tray Flame Guard
Drip Tray Flame Guard Installation: 1. Slide out your drip tray 2. Place Drip Tray Flame Guard into Drip Tray 3. Slide Drip Tray back into grill Blaze Outdoor Products Instructional Book Page | 33... -
Page 34: Fuel Conversion
Fuel Conversion CAUTION: This should only by performed by a licensed gas professional. A video converting your blaze grill is located on the blaze website to assist with the below instructions, www.blazegrills.com Convertible Gas Regulator (if applicable): *This only applies if you have purchased a Natural Gas Grill or separately purchased a bulk regulator. - Page 35 Blaze Outdoor Products Instructional Book Page | 35...
-
Page 36: Main Burner
Rear Burner For the Blaze 4 & 5 Burner, replace the back burner orifice by removing the plate on the rear of the BBQ and carefully removing the fitting. Replace with the provided conversion back burner orifice – large brass fitting (differs from small main burner orifice). -
Page 37: Warranty Registration
The following information is applicable only to the Blaze Marine Grade Grill/BLZ-4LTE2MG-LP/NG. In addition to the parts warranty found below, Blaze Outdoor Products will cover up to $120.00 in labor per warranty claim in a 30 day period for the first 365 days from purchase date. -
Page 38: Grill Parts
Blaze 4LTE2MG Note: BLZ-4LTE2MG is depicted above. Blaze Outdoor Products Instructional Book Page | 38... -
Page 39: Product Serial Number
Locating the Product Serial Number: The serial number for your BLAZE appliance is located on the left hand outside of the Firebox (see picture on page 13.) You will need this number to properly register your appliance and activate coverage. Write this information in... -
Page 40: Blaze Product Registration
Please take a minute to let us know what you bought. This makes sure we keep you up to date and have your info ready if you ever need warranty help! You may register your product electronically on the Blaze website vs mailing in the below paperwork, www.blazegrills.com.
