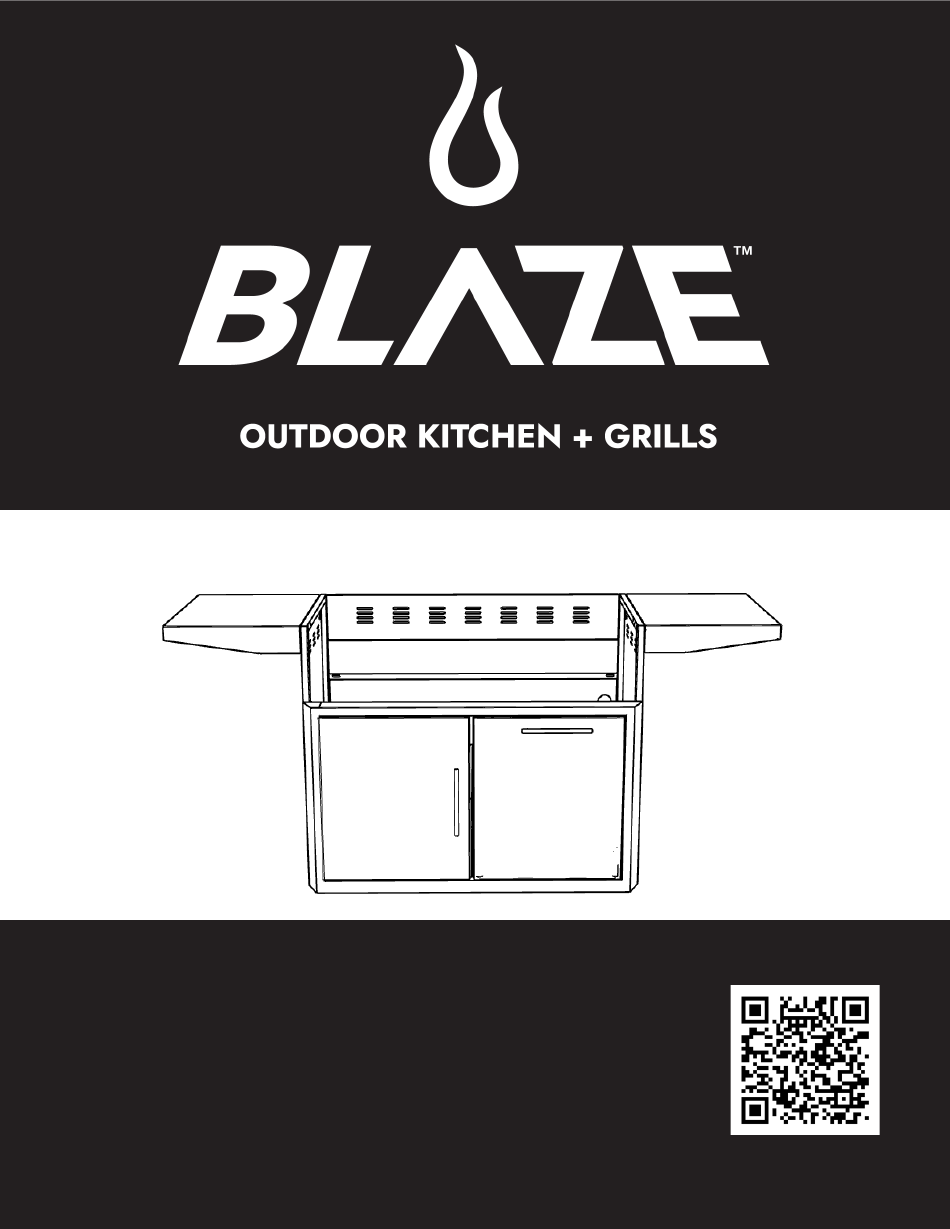

- Page 1 PREMIUM LTE SERIES PRODUCT MANUAL Blaze Appliance Cart BLZ-GRIDDLE40-LP/NG BLZ-5LTEPRO-LP/NG BLZ-4LTEPRO-LP/NG SCAN TO REGISTER BlazeGrills.com...
-
Page 2: Before Getting Started
Blaze Pro Cart WAR NIN G CALIFORNIA PROPOSITION 65 WARNING: Do not use power tools to assemble. Only This product can expose you to chemicals use hand tools, as power tools can damage including Chromium (hexavalent or loosen the nutsert. - Page 3 11. Left side panel 4. Right side panel 10. Top side shelf panel 5. Right side drawer slide 6. Casters 7. Front face 9. Right side shelf panel 8. Bottom panel Blaze Part Number: Reference Guide BLZ-5LTEPROCART-LTSC-006 BLZ-5LTEPROCART-LTSC-002 BLZ-D/DR-2 BLZ-4LTEPROCART-LTSC-010 BLZ-4LTEPROCART-LTSC-001 BLZ-AD32-007 BLZ-4LTEPROCART-LTSC-004...
- Page 4 11. Left side panel 4. Right side panel 10. Top side shelf panel 5. Right side drawer slide 6. Casters 7. Front face 9. Right side shelf panel 8. Bottom panel Blaze Part Number: Reference Guide BLZ-GRIDDLE40CART-001 BLZ-GRIDDLE40CART-009 BLZ-D/DR-2 BLZ-GRIDDLE40CART-010 BLZ-AD32-007 BLZ-GRIDDLE40CART-003 BLZ-GRIDDLE40CART-004...
- Page 5 11. Left side panel 4. Right side panel 10. Top side shelf panel 5. Right side drawer slide 6. Casters 7. Front face 9. Right side shelf panel 8. Bottom panel Blaze Part Number: Reference Guide BLZ-4LTEPROCART-LTSC-009 BLZ-4LTEPROCART-LTSC-002 BLZ-D/DR-2 BLZ-4LTEPROCART-LTSC-010 BLZ-4LTEPROCART-LTSC-001 BLZ-AD32-007 BLZ-4LTEPROCART-LTSC-003...
- Page 6 Blaze Pro Cart STEP 3: Attach the right and left side cart panels. STEP 1: Flip the panel upside down on a protected The right and left side panels can be identified as surface, exposing the four locations where the casters follows.
- Page 7 STEP 8: Attach the shelf to the interior of the appliance cart using six screws: three on the interior of the cart and three on the exterior. STEP 5: Attach the upper two screws on the back side panel, but do not fully tighten them until the cart is fully assembled.
- Page 8 Blaze Pro Cart STEP 11: Slide the front face of the cart onto the cart, STEP 13: To attach the soft-close hinges to the cart, start aligning it with the three holes on each side, and secure by flattening the hinges and loosening the adjustment it in place with screws.
- Page 9 STEP 15: Attach the soft-close hinge mounts to the Pushing this tab while trying to snap the hinge on will cart as shown. help the hinge have enough clearance to snap into place. Insert two hinge screws with the rounded hooks facing toward the back of the cart.
- Page 10 Blaze Pro Cart If you are installing a griddle into your cart the Attach the next side panel bracket with STEP 18: griddle will not have attachment screws. the pegs facing outward toward the back of the appliance cart using 4 screws. Ensure that...
- Page 11 Please leave these instructions with the consumer. Please read and retain these instructions for future reference and before installation or operation. Contact Us: Blaze 6620 Greenwell Springs Rd Baton Rouge, LA 70805 Phone: 866-976-9510 customerservice@blazegrills.com Contact Us: @Blazegrills @Blaze_Grills @BlazeOutdoorProducts...
