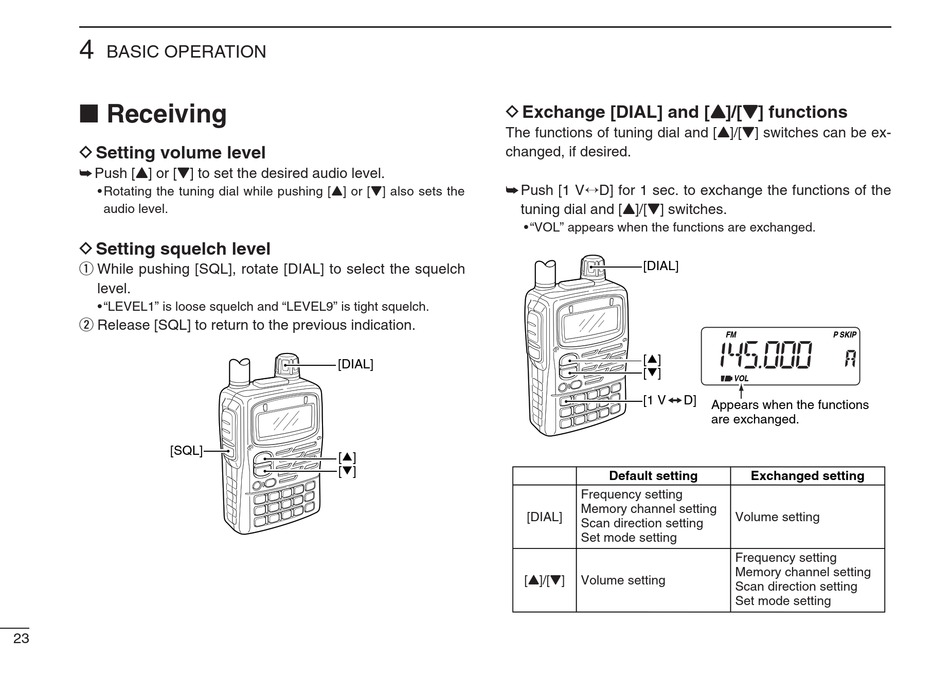

I Receiving - Icom IC-T90 Instruction Manual

4
BASIC OPERATION

I Receiving

D Setting volume level
➥ Push [Y] or [Z] to set the desired audio level.
• Rotating the tuning dial while pushing [Y] or [Z] also sets the
audio level.
D Setting squelch level
q While pushing [SQL], rotate [DIAL] to select the squelch
level.
• "LEVEL1" is loose squelch and "LEVEL9" is tight squelch.
w Release [SQL] to return to the previous indication.
[SQL]
23
D Exchange [DIAL] and [Y Y ]/[Z Z ] functions
The functions of tuning dial and [Y]/[Z] switches can be ex-
changed, if desired.
➥ Push [1 V↔D] for 1 sec. to exchange the functions of the
[DIAL]
[∫]
[√]
tuning dial and [Y]/[Z] switches.
• "VOL" appears when the functions are exchanged.
[DIAL]
[∫]
[√]
[1 V D]
Default setting
Frequency setting
Memory channel setting
[DIAL]
Scan direction setting
Set mode setting
[Y]/[Z] Volume setting
FM P SKIP
VOL
Appears when the functions
are exchanged.
Exchanged setting
Volume setting
Frequency setting
Memory channel setting
Scan direction setting
Set mode setting
