SLIMLINE 2500
OWNER'S MANUAL
The Coolest Thing In Wine Storage

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slimline 2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WhisperKool Slimline 2500

Summary of Contents for WhisperKool Slimline 2500

  • Page 1 SLIMLINE 2500 OWNER’S MANUAL The Coolest Thing In Wine Storage...
  • Page 2 Vinothèque Wine Cellars reserves the right to make corrections or improvements to the information provided and to the related hardware at any time, without notice. Vinothèque and WhisperKOOL are registered trademarks, and ECE is a trademark of Vinothèque Wine Cellars. All rights re- served.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WhisperKOOL Slimline Quick Reference Guide ... Introduction ... Receiving & Inspecting The Unit... Preparing the Wine Cellar ... Installation ... Liquid Measuring Thermostat System ... System Operation ... Control Panel Features and Operation ... Maintenance Schedule ...

  • Page 4: Whisperkool Slimline Quick Reference Guide

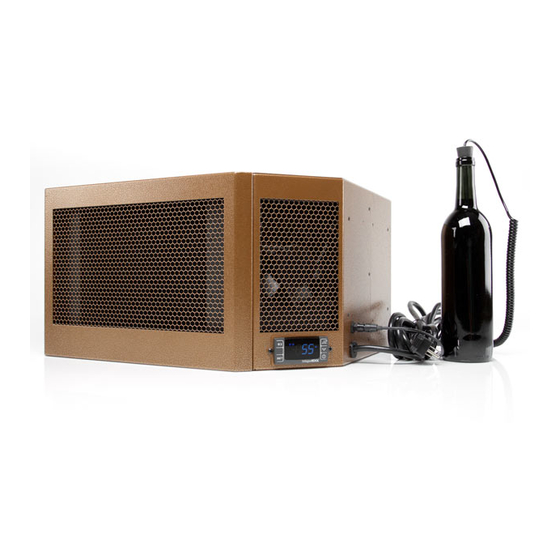

    WHISPERKOOL Slimline QUICK REFERENCE GUIDE Exhaust Side (out of cellar / condenser) Controller Grille Cold Side (inside cellar / evaporator) Power Cord Bottle Probe Grille Page 4 SL 072710...

  • Page 5: Introduction

    The-Wall’ application. The standard “Through-the-Wall” units are temperature controlled via a bottle probe. Temperature Setting The WhisperKOOL unit can be set at any temperature within the acceptable wine-aging range of 50°F to 67°F. It is designed to cool 30°F cooler than the ambient temperature of the space to which it is exhausting.

  • Page 6: Receiving & Inspecting The Unit

    Insulation Foam (8 strips) Please leave the WhisperKOOL unit in its original box until you are ready for installation. This will allow you to move the product safely without damaging it. When you are ready to remove the product from the box, refer to page 10 for installation instructions.

  • Page 7: Preparing The Wine Cellar

    PREPARING THE WINE CELLAR The performance and life of your WhisperKOOL unit are contingent upon the steps you take in preparing the wine cellar. Note: Improperly preparing your enclosure or incorrectly installing your WhisperKOOL unit may cause unit failure, leaking of condensation, and other negative side effects.

  • Page 8: Mounting The Unit

    The unit should be mounted within 18“ of the top of the room in order to achieve sufficient cooling. As the room cools down, the warm air will rise to the ceiling. Mounting the WhisperKOOL high in the room will create a consistently cool environment by capturing the warm air and replacing it with cool air.
  • Page 9 How to Build a Wine Cellar Instructional Video WhisperKOOL has a construction tutorial available on line at www.whisperkool.com. This tutorial will walk you through the steps of constructing a properly built wine cellar and the installation of our WhisperKOOL product line.

  • Page 10: Installation

    Follow the local building codes and/or consult a license contractor Electrical Needs The WhisperKOOL System requires a dedicated 115-volt 15-amp circuit. The unit draws a large amount of amps at initial start up. By designating a dedicated circuit breaker, you will guarantee the unit has enough power to run effectively.
  • Page 11 The following installation examples are for reference only, door header construction and framing may vary. When not installing above a door, adequate framing inside of the wall is necessary. WhisperKOOL recommends consulting a licensed contractor for framing and construction needs.
  • Page 12 WhisperKOOL system. Seal all cracks and gaps around the WhisperKool Slimline unit with an air- tight sealant or caulking to prevent air leakage. Note: If you use decorative molding, it should be attached to the walls and never to the cooling unit.

  • Page 13: Liquid Measuring Thermostat System

    LIQUID MEASURING THERMOSTAT SYSTEM The WhisperKOOL Slimline cooling unit comes equipped with a liquid temperature measuring thermostat system. This system incorporates the following advantages: 1. Self-Calibrating Probe: forth to the thermostat. This results in a consistent temperature setting and accuracy. Do not remove the tip from the probe! 2. Heavy-duty Circuitry:...

  • Page 14: System Operation

    SYSTEM OPERATION: STANDARD & REMOTE Initial Start-Up When power is applied to the unit, the control will briefly display all symbols, and the Compressor symbol will be displayed (if unit is calling for cooling). There may be a brief delay prior to the evaporator and condenser fans turning on.

  • Page 15: Control Panel Features And Operation

    CONTROL PANEL FEATURES AND OPERATION Button Normal Functions • The ON/OFF button allows the customer the convenience of turning the refrigeration sys- ON/OFF tem ON or OFF, from the control panel. This feature does not disconnect power from the unit, and the condenser fan will continue to run in the OFF position. In order for the power to be shut off from the unit, the power cord must be unplugged from the wall receptacle.
  • Page 16 Button Normal Functions Energy 1. The ER feature can be used to save energy and aids in extending the life of the system. 2. The ER button is located at the top L/H side of the control. The ER feature is activated by Reduc- pressing the ER button one time, and the ER logo will appear on the digital display.
  • Page 17 Button Normal Functions • Fof - Humidity Management Enhancement: This parameter is normally set at 1. This pa- CPSM rameter should not be adjusted, as it simply provides an OFF cycle time for the fan, during Mode the compressor OFF cycle. However, the parameter is located within the CPSM as a conve- (Cont.) nience to the customer, should it need to be adjusted.

  • Page 18: Maintenance Schedule

    Monthly 1. Check filters 2. Check for unusual noise or vibration Quarterly Clean filters: Remove grille on both ends of unit. 2. Remove the filter covering the coil. 3. Wash with warm water 4. Dry off filter by shaking excess water from filter. Annually 1.

  • Page 19: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Unit has ice forming on the evaporator Possible Cause Evaporator filter and/or coil are dirty. There is something blocking the supply and or return air One or both evaporator fans are not turning on. The temperature of the room, the unit is exhausting to, has dropped below 50°...
  • Page 20 Unit runs but does not cool Possible Cause Lack of air flow/heat exhaust (outer room) Crankcase pressure set too high/low Compressor not running Unit undersized Evaporator fan runs but compressor does not Possible Cause Compressor and/or starting components faulty Compressor runs; evaporator fan does not Possible Cause Blown fuse or circuit breaker Faulty fan motor...

  • Page 21: Technical Assistance

    WhisperKOOL Customer Service is available Monday through Friday from 8:00 a.m. to 4:00 p.m. Pacific Time. The customer service representative will be able to assist you with your questions and warranty information more effectively if you provide them with the following: •...

  • Page 22: Installation Terms And Conditions

    (b) PARTS: WhisperKOOL will supply, at no charge, new or rebuilt replacement parts in exchange for defective parts for a period of two (2) years. (c) FREIGHT: During the first two (2) years from the date of purchase, WhisperKOOL will cover freight for the repair of units UNDER WARRANTY to customers within the continental United States.
  • Page 23 (c) Purchasers (users) are reminded that they should satisfy themselves that the product they are purchasing is suit- able for their needs and requirements and no responsibility will be placed with WhisperKOOL for their decisions. (d) It is the user’s responsibility to secure safe haven/storage for ANY AND ALL items that are being kept and stored in the user’s wine cellar.
  • Page 24 Limited Warranty. The parties may modify these Terms and Conditions or the Limited Warranty only in a writing signed by each. No waiver by WhisperKOOL of any breach or default hereunder will be deemed to be a waiver of any preceding or subsequent breach or default.
  • Page 25 NOTES...
  • Page 26 WhisperKOOL 1738 E. Alpine Ave Stockton, CA 95205 1(800) 343-9463 www.whisperkool.com...
