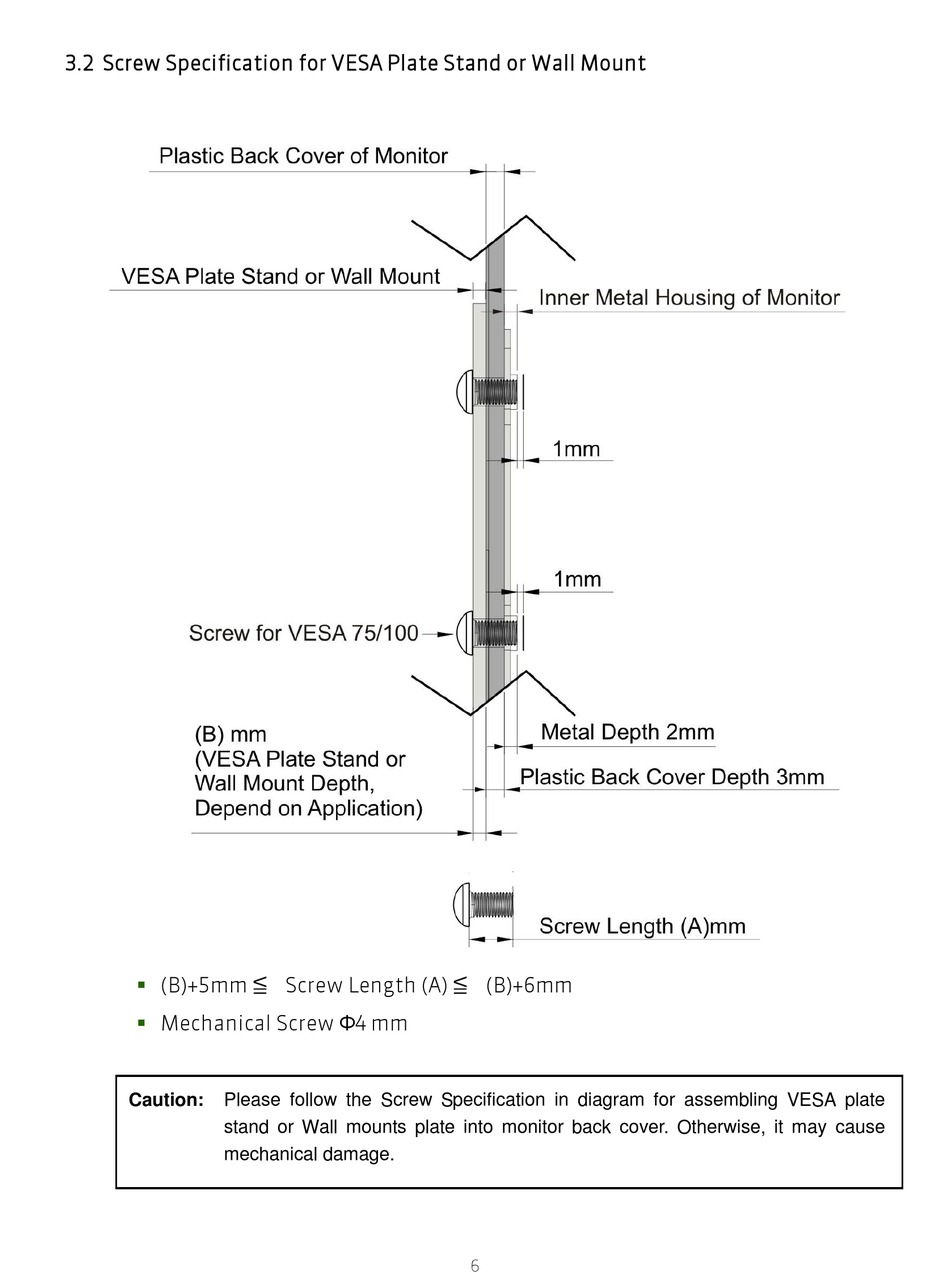

3.2 Screw Specification for VESA Plate Stand or Wall Mount
(B)+5mm ≦ Screw Length (A) ≦ (B)+6mm
Mechanical Screw Φ 4 mm
Caution:
Please follow the Screw Specification in diagram for assembling VESA plate
stand or Wall mounts plate into monitor back cover. Otherwise, it may cause
mechanical damage.
6
