M-7018
8 Channel Analog Input Data Acquisition
Module
Quick Start Guide
Product Website:
https://www.icpdas-usa.com/m_7018
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction

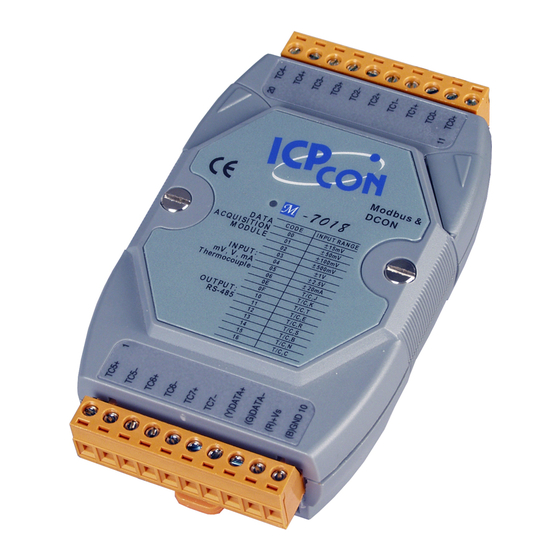

The M-7018 is an 8-channel Analog Input module that provides current and voltage
input, as well as thermocouple input. The M-7018 also features 4 kV ESD protection
and 3000 VDC intra-module isolation. The M-7018 is a family of network data
acquisition and control modules that support Modbus RTU. They can be remotely
controlled using a set of commands called DCON protocol. With the Modbus RTU
protocol, it can easily communicate with most popular SCADA/ HMI software and PLCs.

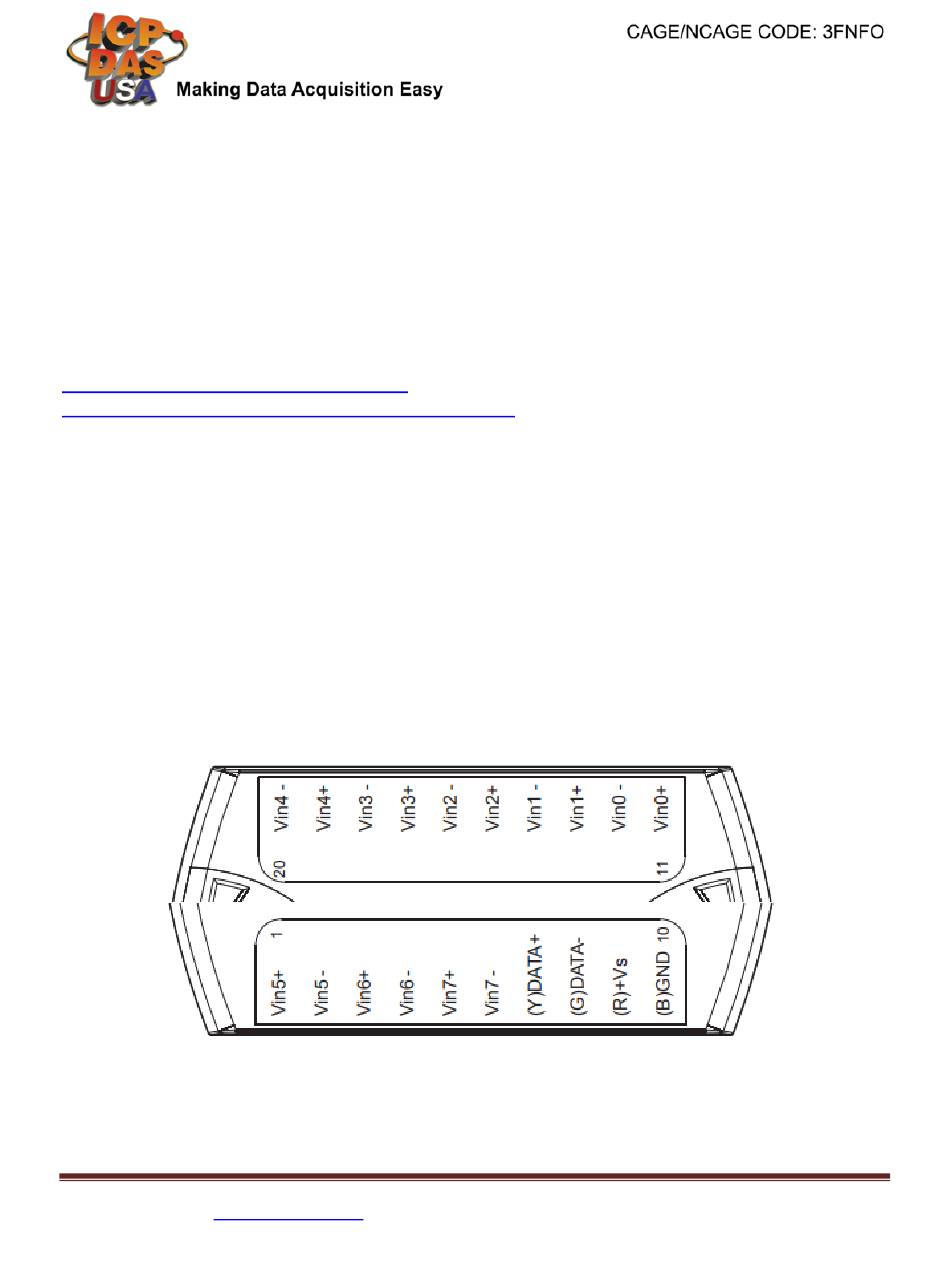

2. Terminal Assignment
M-7018 8 Channel Analog Input Module- QuickStart (Dec/2017)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
