1. Introduction

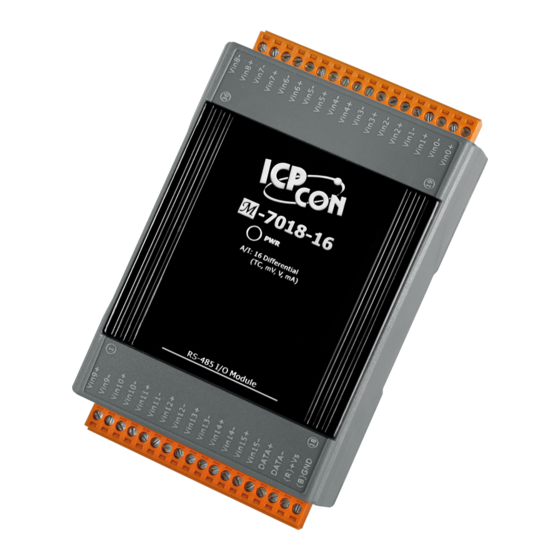

The M-7018-16 is an analog input module designed with 16 differential analog input
channels. The voltage input ranges from ±15 mV to ±2.5 V, the current input range can
be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L,
M, LDIN43710 thermocouple can be used for the thermocouple input. Designed with
overvoltage protection of up to 30 VDC is provided. M-7018-16 features per-channel
open wire detection for the thermocouple input types, 4 kV ESD protection and 3000
VDC intra-module isolation.
