Univex MG89 Operator's Manual

Meat & food grinder
Hide thumbs

Advertisement

Table of Contents

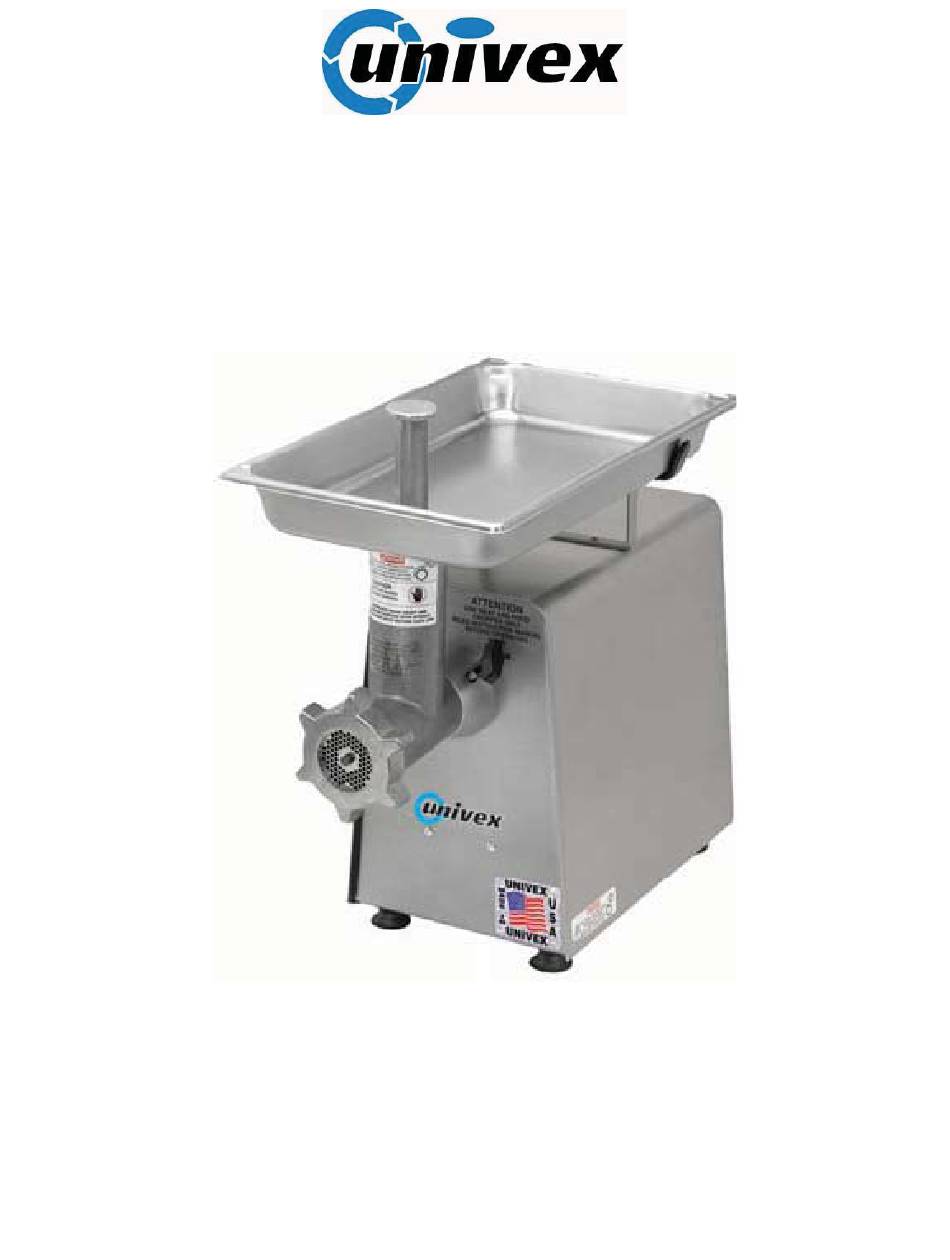

MG8912 MEAT & FOOD GRINDER
OPERATOR'S MANUAL
Persons under age 18 are not permitted to operate or have accessibility to
operate this equipment per U.S. Dept. Of Labor Employment Standards
Administration Fact Sheet No. ESA913.
MG8912 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG89 and is the answer not in the manual?

Questions and answers

Related Manuals for Univex MG89

Summary of Contents for Univex MG89

  • Page 1 MG8912 MEAT & FOOD GRINDER OPERATOR’S MANUAL Persons under age 18 are not permitted to operate or have accessibility to operate this equipment per U.S. Dept. Of Labor Employment Standards Administration Fact Sheet No. ESA913. MG8912 REV A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION PAGE TABLE OF CONTENTS ......................1 LIST OF ILLUSTRATIONS .....................1 INSPECTION ..........................2 SAFETY ............................3 ASSEMBLY INSTRUCTIONS....................5 OPERATING INSTRUCTIONS ....................7 WARRANTY .....................BACK COVER LIST OF ILLUSTRATIONS ILLUSTRATION PAGE FIGURE 1 OVERALL VIEW ..........4 FIGURE 2 POWER TAKE-OFF HUB (PTO) .

  • Page 3: Inspection

    Your new MG8912 Meat Grinder has been designed with advanced performance and safety features that make it an excellent addition to your food preparation equipment. Like all Univex mixers, slicers, meat grinders and accessories, this meat grinder is engineered to provide years of reliable service.

  • Page 4: Safety

    WIPE DOWN THE EXTERIOR OF THE DRIVE UNIT ONLY, NEVER HOSE DOWN OR IMMERSE THE DRIVE UNIT IN WATER. DO NOT ATTEMPT TO SERVICE THE DRIVE ASSEMBLY. PLEASE CONTACT UNIVEX CORPORATION FOR THE NUMBER OF THE NEAREST AUTHORIZED SERVICE AGENT IN YOUR AREA FOR ADJUSTMENTS OR REPAIR.
  • Page 5 OVERALL VIEW OF MEAT GRINDER FIGURE 1 POWER UNIT FEED PAN POWER SWITCH PAN SUPPORT GRINDER HEAD CIRCUIT BREAKER (ON BACK) STOMPER POWER CORD PAGE 4...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Attach the pan support (Figure 1 [6]) to the housing cover using two 10-32 pan head screws. The PTO adapter (Figure 2) should remain on the PTO drive shaft when the grinding head is removed. The com- ponents of the grinder assembly should be washed with a warm water and mild soap solution and dried prior to use.
  • Page 7 POWER TAKE-OFF HUB (PTO) FIGURE 2 THUMB SCREW PTO HUB ALIGNMENT PIN LOCATING HOLE COVER CAP PTO ADAPTER WORM ASSEMBLY FIGURE 3 WORM FIBER WASHER DRIVE SHAFT APPLY PETROL-GEL TO THESE SURFACES PRIOR TO ASSEMBLY Page 6...

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS Choose a location for the MG8912 that is convenient for the operator, allowing free access to the power switch and sufficient clearance for safety and care of operation. Slice the meat into strips which will easily fit into the throat of the grinder. Place a suitable container at the discharge of the grinder.
  • Page 9 GRINDER WITH PAN AND STOMPER FIGURE 4 ITEM No. PART No. DESCRIPTION Qty. 1000735 Stomper 8700011 Pan, Stainless Steel 4400351 Label 1000651 Housing Assembly 1000653 Worm Assembly 1000506 Knife 1000509 Plate 3/16 1000508 Plate 1/8 (optional) 1000510 Plate 1/4 (optional) 1000511 Plate 3/8 (optional) 1000512...

  • Page 10: Warranty

    8:00 am and 5:00 pm local time, Monday through Friday. Univex will not cover over- time charges of any kind. Please call the Univex Warranty Service Department at 800-258-6358 to report warranty claims before arranging repair or attempting to return the unit to Univex Corporation.

This manual is also suitable for:

Mg8912
